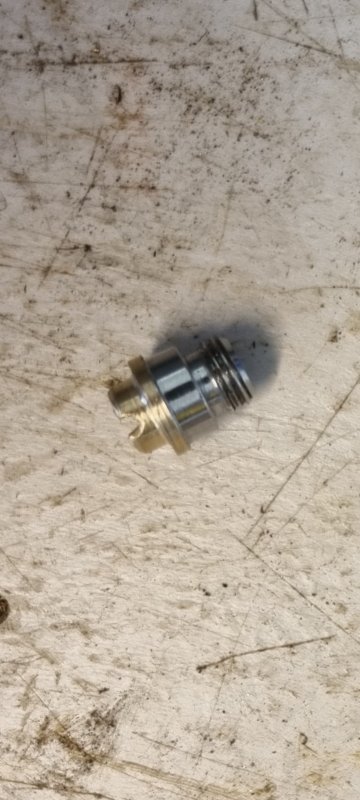

To be able to use the 2L bottle on the left side I needed to drill a bigger hole in the side to fit it in the case. Then it struck me, I must have a pressure gauge on the bottle and I only had one the came originaly with hose, so I found an adapter with bsp 1/4 male to something smaller then female 7/16. Then I drilled it out and made 7/16 threads so I could use a standard gauge.

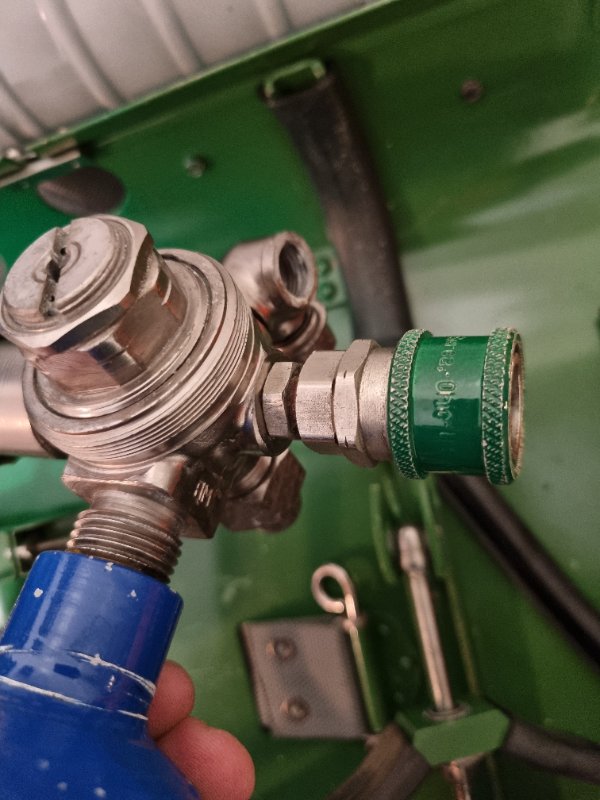

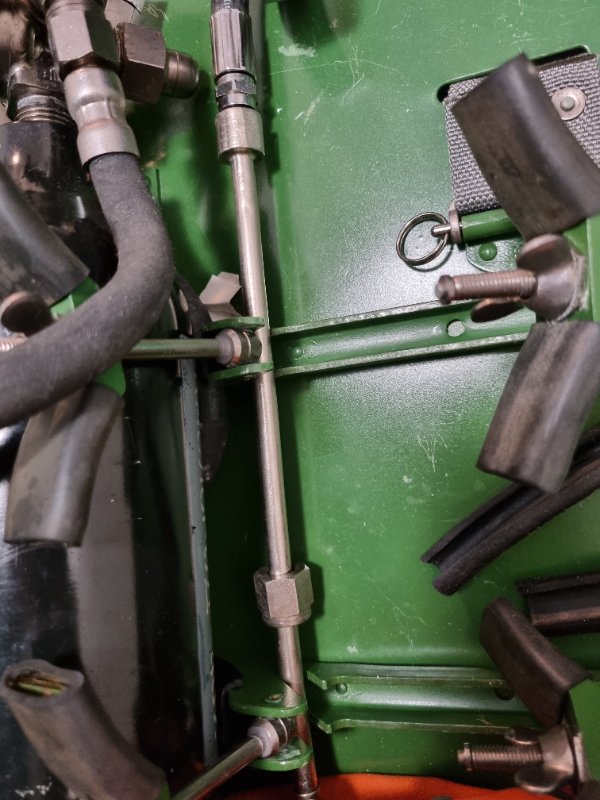

For filling, im using a Female DIN witch i use on the "original" HP port and remove it when done.
By now I just had to figure out a good way to use the original DSV, so simpel solution was to use a mouthpiece from a 2-stage and use garn to secure it and it been working as a dream, after some adjustments.
I also added 4kg weight on the cover to compensate for the lifting caused by the CL. This will be made differently later tho.
As you have seen now, I have 2options of bottle use. Here you can see when using only 2L and the org. O2 bottle with DIN-valve, filled with air for dry suit and bailout(IF shallow).

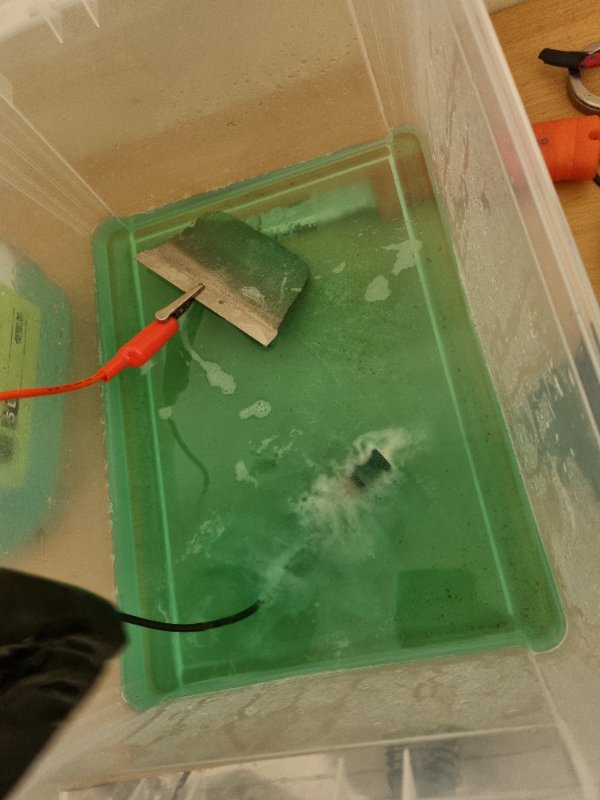

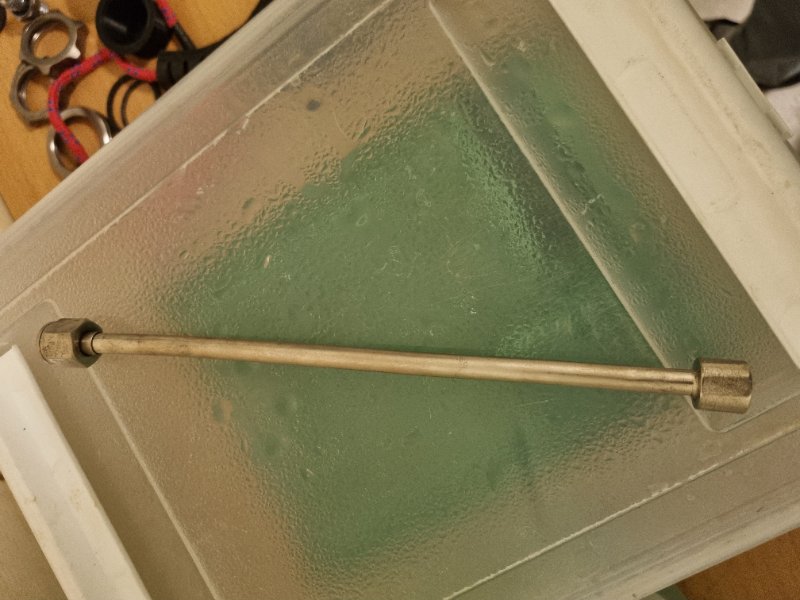

What's the future? Well I suppose someone here on the forum has some suggestions but beside from that I want to nickel plate all the parts, paint bottles with correct colour code and some fine tuning to get it fully adopted to my needs.
Specially thanks to @Snusmumrik who gave a lot of useful information and good man to exchange ideas with.
