Dudesesses

[BRT]

I've used one on steel brake line, it worked but I wouldn't want to make a habit of it. The unit Akimbo linked probably would have been easier.

All we use on steel brake lines. With the double flaring inserts.



[Bob DBF]

All we use on steel brake lines. With the double flaring inserts.

Mine does not look like the one in rob's picture, and was made for copper. The block holding the pipe clamps with wing nuts, and it's hard to get it tight enough to hold the pipe from slipping while flaring steel.



[Tracy]

I use this one for stainless tube. It works well. .035 requires a bit of soap on the anvil for every flare.



[BRT]

I've used one on steel brake line, it worked but I wouldn't want to make a habit of it. The unit Akimbo linked probably would have been easier.

All we use on steel brake lines. With the double flaring inserts.

Mine does not look like the one in rob's picture, and was made for copper. The block holding the pipe clamps with wing nuts, and it's hard to get it tight enough to hold the pipe from slipping while flaring steel.

Mine does not look like the one in rob's picture, and was made for copper. The block holding the pipe clamps with wing nuts, and it's hard to get it tight enough to hold the pipe from slipping while flaring steel.

That is why I clamp it in a vise.



[Bob DBF]

That is why I clamp it in a vise.

Boy do I look stupid. I hope if I had a lot to do I would have figured it out.



[Couv]

Mine are the simple clamp together kind. I have a full stock of 1/4 fittings and have used it for a lot of connections. frogman62 told me he believes the 45 deg flare seals better. I don't know, but it seals fine.

How about a link to a site where this can be purchased? TIA



[Akimbo]

Mine are the simple clamp together kind. I have a full stock of 1/4 fittings and have used it for a lot of connections. frogman62 told me he believes the 45 deg flare seals better. I don't know, but it seals fine.

How about a link to a site where this can be purchased? TIA

I strongly recommend against mixing 37 and 45° flares and fittings. However, a great trick for getting stainless fittings tight against HP Helium is to use copper conical seals.

The softer material act as gaskets between the two harder stainless surfaces and compensate for less than perfect flares.

Production flaring is done with electrically driven machines with offset rotating cones. Here is a benchtop unit. The amount of clamping force required is much lower than manual flaring units because the cone is offset as it rotates and moves toward the tube. We had a floor standing model when I was manufacturing sat systems. Some hydraulics shops have units like this and will flair your tubing for a small fee.

​

Just remember to slide the nuts and sleeves on the tubing, in the right direction, before flaring the second end, not the I have ever made that stupid mistake,



[BRT]

How about a link to a site where this can be purchased? TIA

Everybody sells them OTC 6502 is a high priced one



[Wookie]

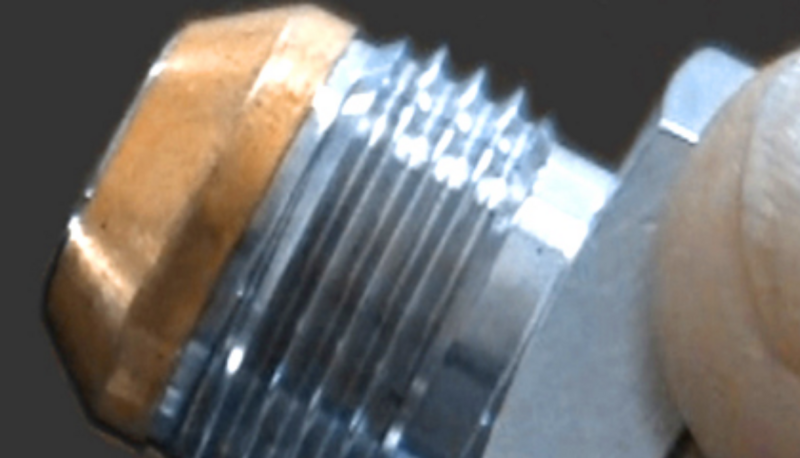

I strongly recommend against mixing 37 and 45° flares and fittings. However, a great trick for getting stainless fittings tight against HP Helium is to use copper conical seals.

View attachment 708524​

The softer material act as gaskets between the two harder stainless surfaces and compensate for less than perfect flares.

Production flaring is done with electrically driven machines with offset rotating cones. Here is a benchtop unit. The amount of clamping force required is much lower than manual flaring units because the cone is offset as it rotates and moves toward the tube. We had a floor standing model when I was manufacturing sat systems. Some hydraulics shops have units like this and will flair your tubing for a small fee.

​

Just remember to slide the nuts and sleeves on the tubing, in the right direction, before flaring the second end, not the I have ever made that stupid mistake,

I have the Olsen 2002. I don’t know anyone who makes the mistake of forgetting the sleeve and nuts, especially after making complex bends



[Akimbo]

I have the Olsen 2002. I don’t know anyone who makes the mistake of forgetting the sleeve and nuts, especially after making complex bends

More like you don't know anyone that makes the mistake anymore.

It is the sort of error you only make once.
