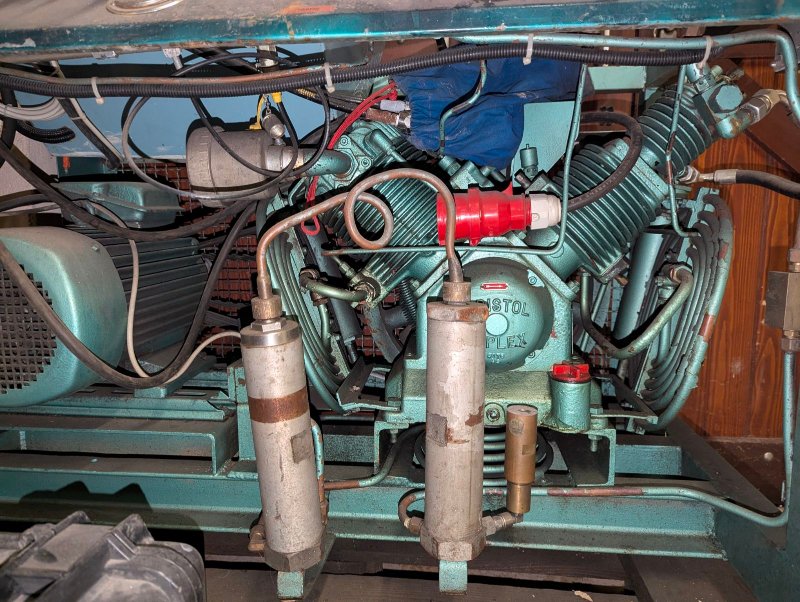

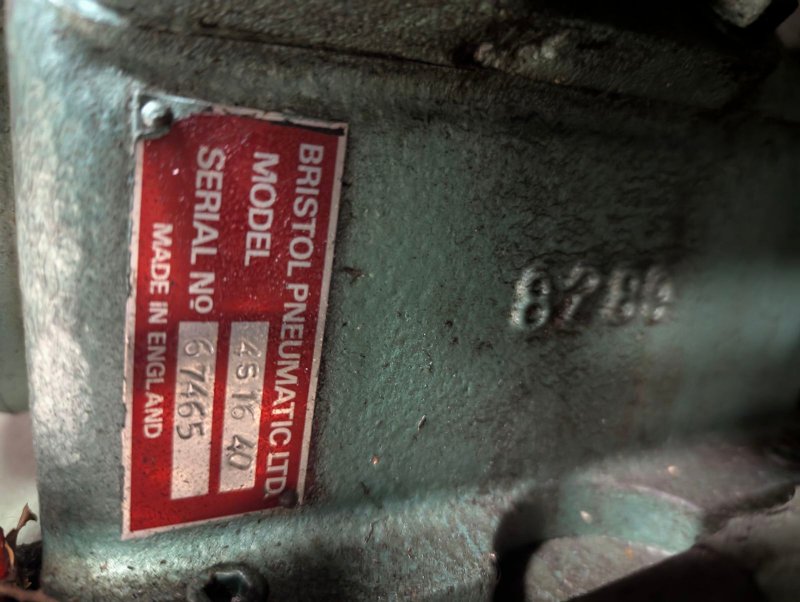

Hello, I'm new, I'm not a diver, but I'm not a paintball shooter either. I searched and found a high-pressure compressor, I collect historical combustion engines. One of these engines is a very early Diesel Engine, it needs 80 Bar of compressed air to blow in the fuel, which is why I purchased the diving compressor. It's an old Bristol 4S.7.40, an engineering marvel, I would like to treat this well, and above all not do anything wrong. The engine has a three-stage compressor, but I'm going to use that extra compressor as a backup Now comes my question: is there anyone who can help me with a manual for this compressor? Thank you in advance and best regards from the Netherlands Rik


Attachments

  • DSCF1449.jpg
    132.4 KB · Views: 130
  • DSCF1458.jpg
    198.8 KB · Views: 128
Sort by date Sort by votes
I have a Bristol 4S-7-40. Recently the oil cap has broken its threads. I was able to get the remainder out and now the cap just catches and holds on one thread, but I would like to replace with a new one. Are these still available or someone might have a second hand one lying about. Also, on the cap it says "FILL TO TOP" and unsure exactly where TOP is. Thanks
Bruce


Attachments

  • IMG20240609121517.jpg
    102.3 KB · Views: 30
  • IMG20240609121500.jpg
    83.3 KB · Views: 36
Upvote 0 Downvote
The oil must be up to the bottom of the thread.I fill til i cant get any more in,right up to the top.
Yes i have spare filler caps but i am not back to my workshop till september.
If you go to your local hydraulic shop they can get you a blank its BSP thread [think it 1"]
You must NOT use a vented blanking cap.

Upvote 0 Downvote
windyairman:
The oil must be up to the bottom of the thread.I fill til i cant get any more in,right up to the top.
Yes i have spare filler caps but i am not back to my workshop till september.
If you go to your local hydraulic shop they can get you a blank its BSP thread [think it 1"]
You must NOT use a vented blanking cap.
Click to expand...
Hi
OK. Got it. In that case my compressor was running with low oil. I could see clear oil in the hole but definitely not to the top. Nice to hear that the cap is available but will try your suggestion in getting a blank/end plug now that I know the size and thread type locally. Thanks
