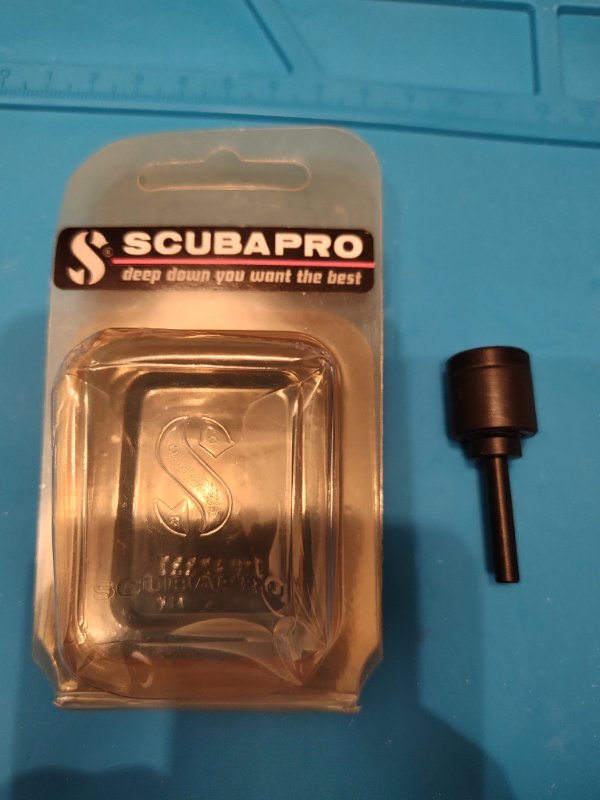

I've landed with a collection of Scubapro tools. I've figured what all of them are except for this small plastic one attached. The body rotates independent from the stem. It's about 4cm in length. The box it came in has no references written on it.
Question What is this Scubapro tool?
- Thread starter DANDM
- Start date
Please register or login
Welcome to ScubaBoard, the world's largest scuba diving community. Registration is not required to read the forums, but we encourage you to join. Joining has its benefits and enables you to participate in the discussions.
Benefits of registering include
- Ability to post and comment on topics and discussions.
- A Free photo gallery to share your dive photos with the world.
- You can make this box go away
It feels more like a balanced chamber than a tool..
Does rotating body seem to change anything (tighten an orifice)?
The diameter of the stem (ID/OD) might also be telling— maybe it fits on a poppet somehow?
Also any chance you landed a g250HP/500 knob tool that you don’t need? I’m looking for one
Does rotating body seem to change anything (tighten an orifice)?
The diameter of the stem (ID/OD) might also be telling— maybe it fits on a poppet somehow?
Also any chance you landed a g250HP/500 knob tool that you don’t need? I’m looking for one

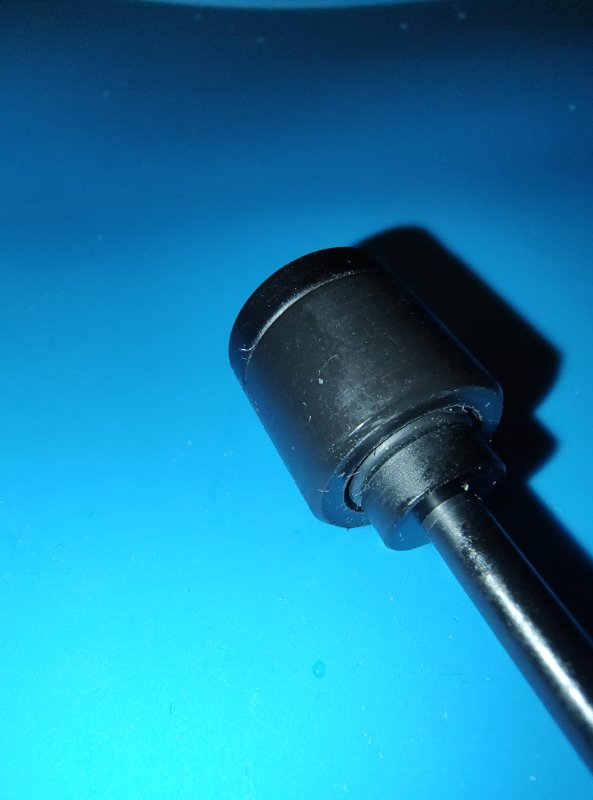

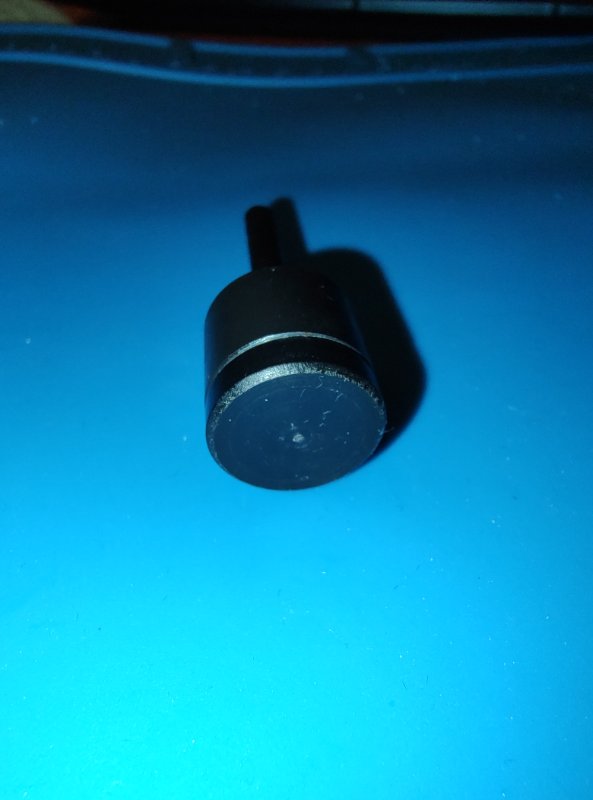

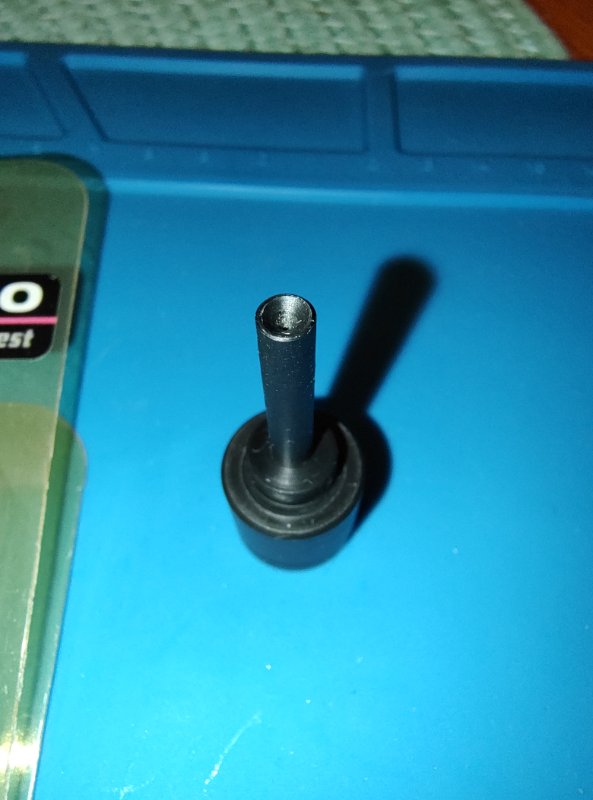

Nah, it rotates freely. I've attached photos of a few more angles. There seems to be an o-ring too between the base and the stem.

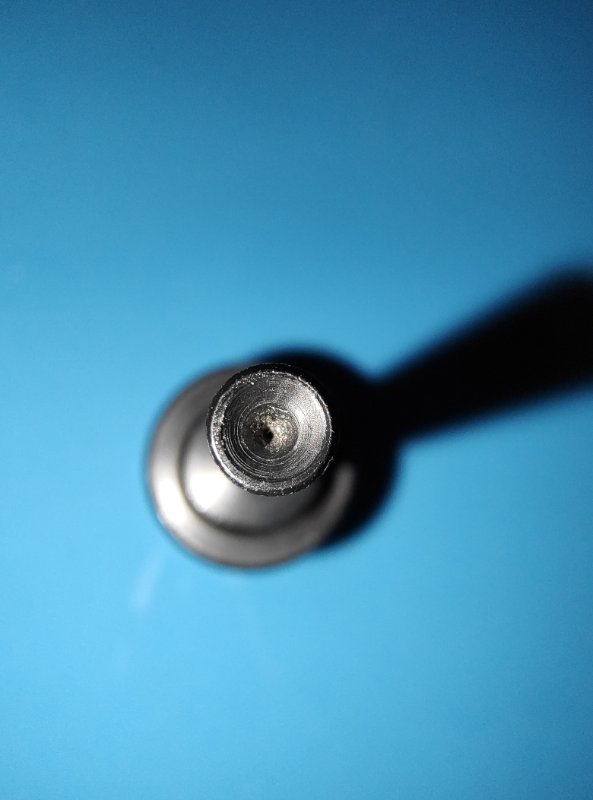

It's about 4mm in diameter at the stem, 10mm at the next step, and 15mm diameter at the base.
No sorry, but I did land two tools for the d420, which I don't need.
Attachments
Scuba Frog Hawaii
Registered
Ooh! What are the 420 tools?
The flow vane ring tool and the flow vane plug tool from Scuba Clinic Tools
Eric Sedletzky
Contributor
Surely we can give Robert a break every now and then
Tanks A Lot
Contributor

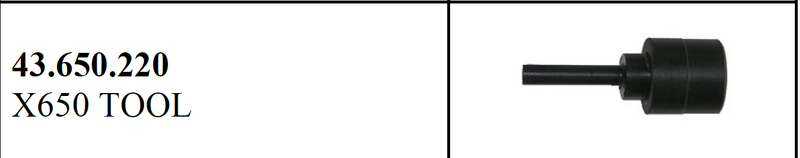

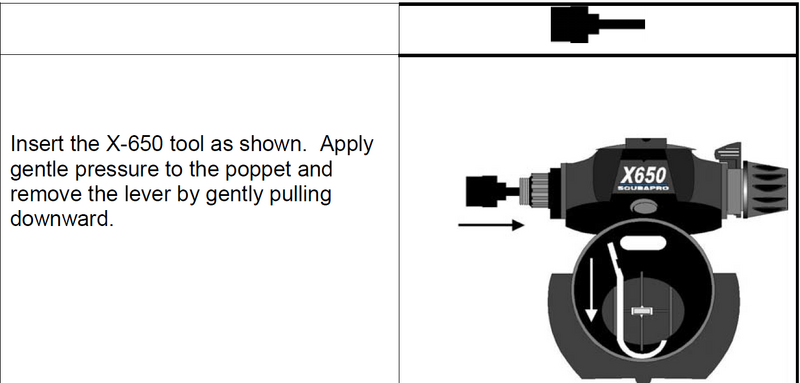

This seems to match the poppet OD and orifice ID
I wanna stick to guessing something related:
- maybe a wired version of poppet installation tool (free to rotate to align with lever)
Or
- some real weird „fake“ balanced chambers (the purpose would baffle me, maybe for tuning purpose)
Ok literally Tanks to the rescue a second earlier
