Sherwood SR2 low cracking effort

[rhwestfall]

There have been some great designs with various manufacturers.... until you put them is saltwater....



[rsingler]

Can't wait to hear the resolution of this...
Low cracking with the knob out is by definition a weak spring (because we don't tune with the orifice). So if the micro-adjust isn't stripped, and it's in all the way, shimming the spring will raise cracking effort without moving the Venturi vane in.
If the micro adjust is stripped, just treat it like a G250 with low cracking effort: shim the spring anyway and ignore the micro.



[Open Ocean Diver]

Knob seems to work fine. Pic shows nipple as far out as it will go. I replace the spring with new. Have plenty of purge can’t get it above .7.



[rhwestfall]

bent lever?



[lexvil]

The hose end adjuster doesn’t move the orifice travel without dropping the lever, the floating orifice can bind a little if not lubed well, I’m assuming it is though.

Rob’ s suggestion is looking like the answer.

My problem with the SR seconds wasn’t cracking pressure which was always great but I couldn’t get them to misbehave and trip over the curve and give me the hard rush of air I want sometimes.



[Open Ocean Diver]

The hose end adjuster doesn’t move the orifice travel without dropping the lever, the floating orifice can bind a little if not lubed well, I’m assuming it is though.

Rob’ s suggestion is looking like the answer.

My problem with the SR seconds wasn’t cracking pressure which was always great but I couldn’t get them to misbehave and trip over the curve and give me the hard rush of air I want sometimes.

When I turn the tank on, you can hear the orifice move in place. The hose adjuster works, I can adjust the lever height. This is a friends regulator and not very old. She was on a trip and was free-flowing, so she had to borrow a reg set.



[lexvil]

When I turn the tank on, you can hear the orifice move in place. The hose adjuster works, I can adjust the lever height. This is a friends regulator and not very old. She was on a trip and was free-flowing, so she had to borrow a reg set.

The hose end adjustments shouldn’t have and lever height change, if memory serves, I no longer have any of these to look at to confirm this but you could put the barrel together and pressurize it and move the adjuster to confirm this or not.



[Open Ocean Diver]

The hose end adjustments shouldn’t have and lever height change, if memory serves, I no longer have any of these to look at to confirm this but you could put the barrel together and pressurize it and move the adjuster to confirm this or not.

The hose end adjustments shouldn’t have and lever height change, if memory serves, I no longer have any of these to look at to confirm this but you could put the barrel together and pressurize it and move the adjuster to confirm this or not.

OK standby I’ll try that. Thanks



[Open Ocean Diver]

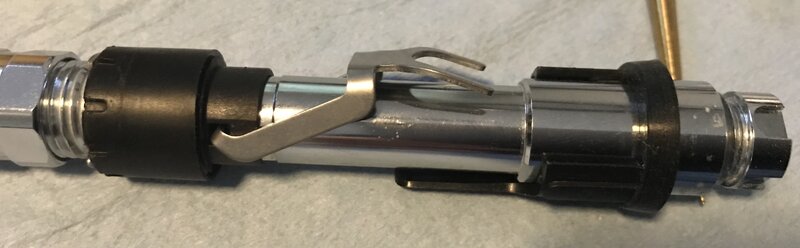

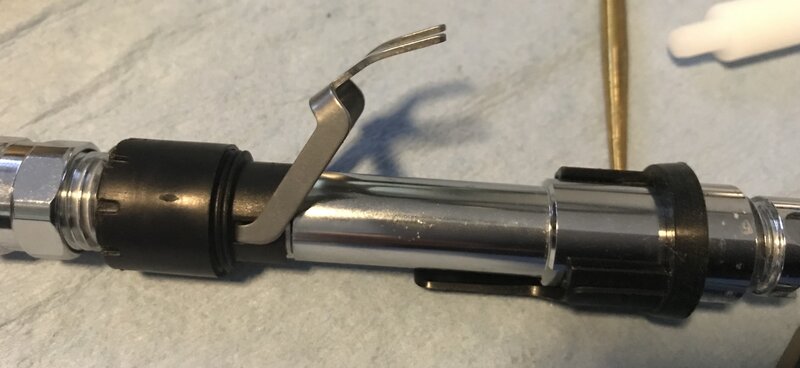

Barrel fully charged and two adjustments below.



[lexvil]

Barrel fully charged and two adjustments below.

View attachment 826782
View attachment 826783

I don’t think it can travel that far in the case but ???
Can you put the barrel back in the case and see what happens with the full range of adjustment?

Sorry for the poor memory I may be experiencing
