Scubapro MK10 SPEC Boot Molds - Free if you'll use them!

[Wiznutaggie]

I have acquired Couv's collection of stuff that he left behind and amongst it were two molds for casting Mk10 SPEC boots. One 3d printed and one machined mold. You'll need a vacuum chamber to cast them without voids (which I don't have - if I did, I would keep them and cast myself). If you're interested in them and are willing to give me a hand full of boots in return, you can have the molds for free.



[MARK74]

Congratulations on the acquisition, having things from couv is an honor, it must be fantastic to see the inventions and projects of a regulator DIY master



[Angelo Farina]

I have acquired Couv's collection of stuff that he left behind and amongst it were two molds for casting Mk10 SPEC boots. One 3d printed and one machined mold. You'll need a vacuum chamber to cast them without voids (which I don't have - if I did, I would keep them and cast myself). If you're interested in them and are willing to give me a hand full of boots in return, you can have the molds for free.


View attachment 803584

Ah, I built the aluminium mold a couple of years ago and sent it to Couv as a gift.
Happy to see that it ended in good hands!
I had sent to Couv also a special black liquid rubber which fills perfectly the mold without bubbles. So no need of a vacuum chamber...
I do not know if you also got it...
If not, here is it: sintagom gomma liquida per modellismo



[happy-diver]

Well don't you guys spread yourselves around

Magnificent!



[Angelo Farina]

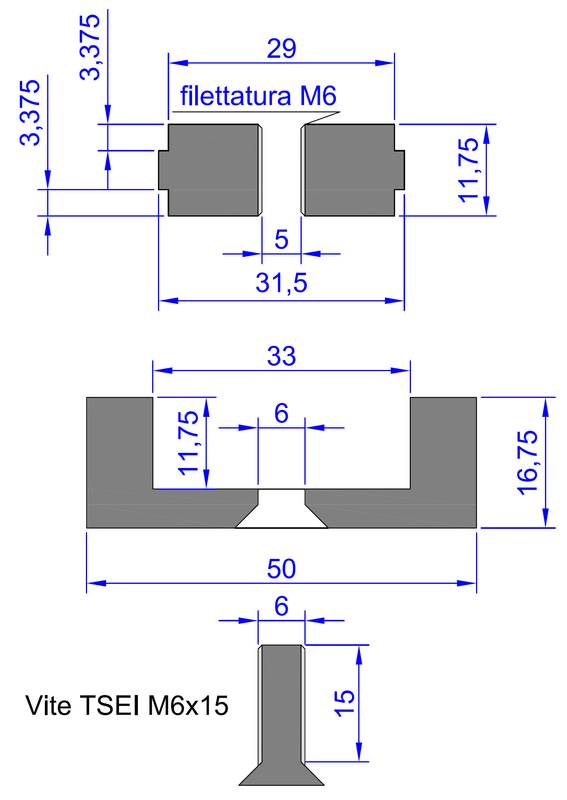

Here the drawing of the aluminium mold which I gave to the workshop technician for building it. Measurements are in mm, of course...



[Angelo Farina]

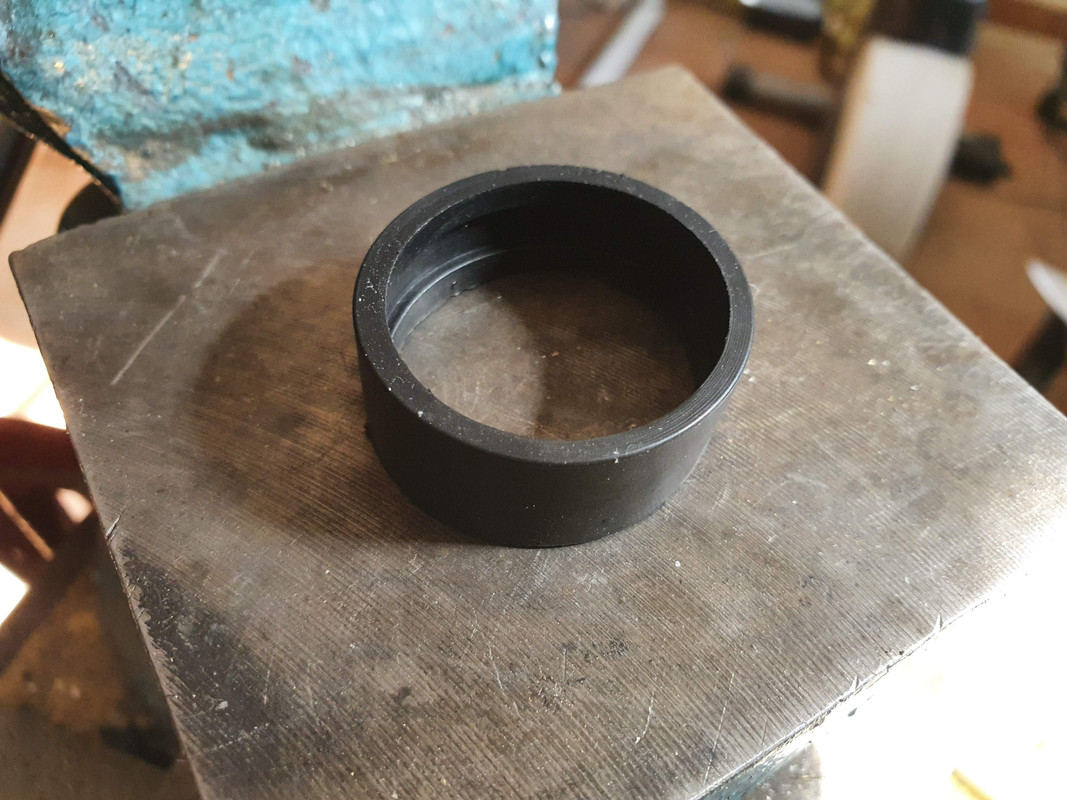

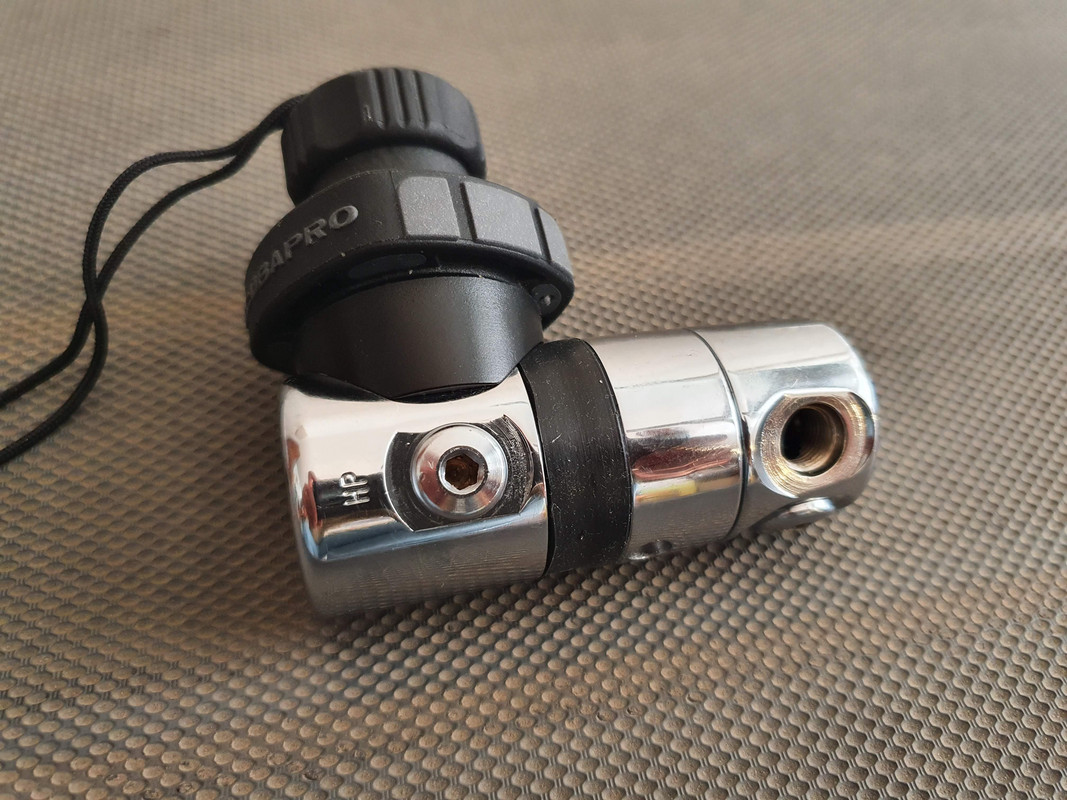

And here the resulting boot, and how it fits on my MK10:

It must be noted that this very nice MK10 was sent me by Couv...
We all miss him immenesely...



[Wiznutaggie]

Ah, I built the aluminium mold a couple of years ago and sent it to Couv as a gift.
Happy to see that it ended in good hands!
I had sent to Couv also a special black liquid rubber which fills perfectly the mold without bubbles. So no need of a vacuum chamber...
I do not know if you also got it...
If not, here is it: sintagom gomma liquida per modellismo

I'm not sure if I got any of that polyurethane, but I will look for it! Thanks!

It must be noted that this very nice MK10 was sent me by Couv...
We all miss him immenesely...

I have its twin that I'm going to keep and dive with!

Congratulations on the acquisition, having things from couv is an honor, it must be fantastic to see the inventions and projects of a regulator DIY master

That is an understatement! The adjustable micro vacuum he made for measuring cracking effort has been a particularly cool tool that I've enjoyed.



[MARK74]

Post some photos when you can, it would be fantastic to see their stuff. Greetings



[Angelo Farina]

This thread shows how these molds were born...
It was Covid lockdown time, so I had a lot of spare time...

SPEC Boots for MK10 and MK15 primary regs

I'm finishing up a huge project that has to do with mask cleaning. All but done, AFAIC. Just a write-up is needed. Turning the guns onto another stalled project, SPEC boots. @raftingtigger sent me a GORGEOUS hard polymer form: Let's give this the attention that it deserves. So, Tigger is...

scubaboard.com



[Pressurehead]

I have one of Robert's Mk10 [Couv]

Well don't you guys spread yourselves around

Magnificent!

The above is true.

It must be noted that this very nice MK10 was sent me by Couv.

Ditto.
Anyone have a spare boot for it ?
