If one of those Mistrals in the "To Do" box would like to come live in Florida for a good price, let me know:wink:.

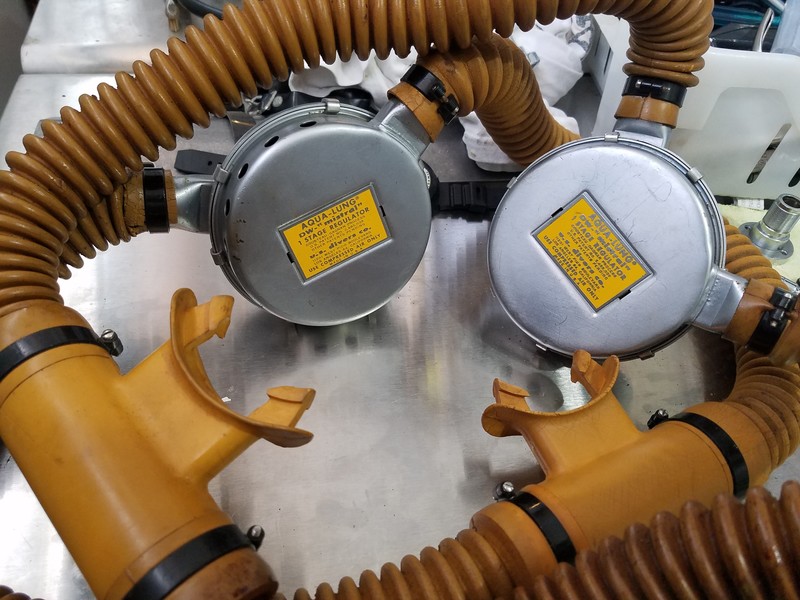

I'll think about it. Those are pristine "his and her" 1958 Mistrals I got from a couple who bought them new at Mel's Aqua Shop, used them a few times, then stuck them in a box in their garage. My son says he wants to rebuild them so he gets first dibs. On the other hand, my wife says I can buy a compressor if the proceeds all come from the sale of my old dive gear. Hmmmm...... :)



Ghost95

Contributor
Messages
701
Reaction score
782
Location
Florida
# of dives
1000 - 2499
I'll think about it. Those are pristine "his and her" 1958 Mistrals I got from a couple who bought them new at Mel's Aqua Shop, used them a few times, then stuck them in a box in their garage. My son says he wants to rebuild them so he gets first dibs. On the other hand, my wife says I can buy a compressor if the proceeds all come from the sale of my old dive gear. Hmmmm...... :)

View attachment 638303
Those are beautiful!!! I hope your son decides to rebuild them.


Ghost95

Contributor
Messages
701
Reaction score
782
Location
Florida
# of dives
1000 - 2499
It is possible to lap the HP seat or VDH has reproductions, I would not buy old stock unless you just "have" to keep it OEM.
This is how I polish them.

You will need a flat surface and some wet/dry sandpaper. A pane of glass works. I use a 12x12 ( 305x305 mm for the metric folks)ceramic tile I purchased at the discount section of a home improvement store. Size does not matter...at least in this case as long as it's big enough....but as always bigger is better.

Start by taping down a sheet of wet/dry sandpaper. I use 800 to 1000 grit to start with depending on the damage. Wet the paper and start polishing the face of the seat IN LARGE FIGURE 8 LOOPS using light pressure and a slow pace. Change the position of the seat in your hand and the orientation of the loops fairly often. The objective is to remove slight amounts of material while keeping it as flat as possible. The large figure 8 loops and frequent position changes are to help even out the material removal. Inspect the face of the seat OFTEN looking for even material removal and that the defects are getting less evenly. Experience will teach you the interval that works for you but in the beginning check often. I use a jewelers loop to inspect the seat. Once the damage is gone, I switch to 1500-2000 grit paper to do a finish polish using the same large slow figure 8 loops.
I also polish out the HP nozzle. I stat by polishing out the interior of the nozzle with strip of purple Scotchbright pad, doesn't take much, just get it clean. Then with a 1/2 in (12.5mm) wood or plastic dowel sanded down to be a loose fit, wrap a strip of the 1500-2000 sand paper around the end of it and using light pressure insert it into the nozzle. With light pressure, make a couple of turns then inspect the sand paper. You should see a light brass ring form on the sand paper and the orifice should be shiny. Again, go easy, the objective to is clean it up while removing as little material as possible. Removing too much is a BAD thing.
Clean everything well to remove any grit and grim.

While on the subject, I test the nozzle assembly before installing it in the reg.
Assemble the nozzle as normal then place it in it's yoke. Install the yoke/nozzle on a tank with at least 1000 psi, open the valve and check for leaks. I use a small pony tank for this since I can dunk the entire thing into a bucket of water to check for small leaks. If you have a slight leak, leave the nozzle pressurized for some time, often times the seat just needs some time to take a set. I usually cycle the seat by installing the pin and pin pad then pressing it in with my thumb. Check again. When you are satisfied that the seat is sealing, use the pin/pad/thumb to release pressure .
This step takes time but it beats having to disassemble the reg multiple times to fix a leaking nozzle.
Thanks for the tips. I've been going back through the vintage gear posts about about rebuilding these DAAM's and collecting screen shots so I can have the tips all in one place.

I didn't see any new HP seats at VDH but I'll look again. I'm going to try and reface the seat I have now too. I'll let you know how it goes.


Umuntu

Contributor
Messages
804
Reaction score
490
Location
Traveller
# of dives
I just don't log dives
Is there a source for reproduction second stage diaphragms for the DAAM ?


Ghost95

Contributor
Messages
701
Reaction score
782
Location
Florida
# of dives
1000 - 2499
Is there a source for reproduction second stage diaphragms for the DAAM ?
I think Vintage Double Hose had them as well as The Scuba Museum. If you're going to use an HPR I believe they recommend a single stage diaphragm without the tabs. The Scuba Museum had a few in stock I think.


Ghost95

Contributor
Messages
701
Reaction score
782
Location
Florida
# of dives
1000 - 2499
DAAM is an unbalanced first stage, with a second. RAM is balanced.

Just like the 109 is different from the 156 the RAM is different from the DAAM. both use tank pressure to offset spring pressure, meaning you don't need a heavy spring to hold the seat closed.

The first stage HP seats will be available soon I'm sure. COVID be Damned!!!
