Hey everyone

I’m new here, although I’ve been lurking for a while.

I have a Daystate Type 2 compressor, which is a Coltri MCH-6 Compact, but not as wide - there’s just little space between the motor and the side of the cage. Made by Coltri, but with Daystate’s branding on the cage. I’ve attached a picture.

I would like to connect hoses to the bleed valves on the condensation tower and filter tower, so that when I purge, I can direct the spray and avoid the mess.

Has anyone done this?

Will it cause any problems?

If you have done it, what size (inner diameter) hose do I need and of what material, so that it stays on the valve?

I’m not a diver, however after everything I’ve been reading and watching, I really want to start - likely when we get out of this Covid mess.

Thanks in advance!


Attachments

  • 3A05907F-79AC-4D4C-9F0D-F559F4A6B14D.jpeg
    95.7 KB · Views: 36

NAM001

Contributor
Messages
5,002
Reaction score
1,318
Location
the moon
# of dives
500 - 999
Hey everyone

I’m new here, although I’ve been lurking for a while.

I have a Daystate Type 2 compressor, which is a Coltri MCH-6 Compact, but not as wide - there’s just little space between the motor and the side of the cage. Made by Coltri, but with Daystate’s branding on the cage. I’ve attached a picture.

I would like to connect hoses to the bleed valves on the condensation tower and filter tower, so that when I purge, I can direct the spray and avoid the mess.

Has anyone done this?

Will it cause any problems?

If you have done it, what size (inner diameter) hose do I need and of what material, so that it stays on the valve?

I’m not a diver, however after everything I’ve been reading and watching, I really want to start - likely when we get out of this Covid mess.

Thanks in advance!

I think what you are asking is normal. you just cant crash open the valves if you are using tygon hoses slipped on a barb fitting. If You can find some HP hose ( even hydrolic hoses)with the fitings on them and attach them to you drain threaded outputs you should be in good shape. then put a brick on the hose ends to keep it from whipping. Or tie them down if you cant find a brick.


Omar_k

Registered
Messages
9
Reaction score
0
Location
UK
I think what you are asking is normal. you just cant crash open the valves if you are using tygon hoses slipped on a barb fitting. If You can find some HP hose ( even hydrolic hoses)with the fitings on them and attach them to you drain threaded outputs you should be in good shape. then put a brick on the hose ends to keep it from whipping. Or tie them down if you cant find a brick.

Thanks KWS - really appreciate you taking the time to help me.

I’d ideally like to avoid changing the bleed valves, if possible. If I slip a hose over the barb fitting, could I clamp it using a jubilee/pipe clamp, or would that risk damaging the end of the bleed valve?

If so, would silicone tubing work? If not, what material would work? Also, how much smaller than the outer diameter of the bleed valve should the inner diameter of the hose be in order to have a snug fit?

Thanks for the suggestion of the brick! You may have saved me spraying my water/oil everywhere!

Cheers


happy-diver

Skindiver Just feelin it
Messages
2,756
Reaction score
1,974
Location
Just East of Australian landfall
# of dives
100 - 199

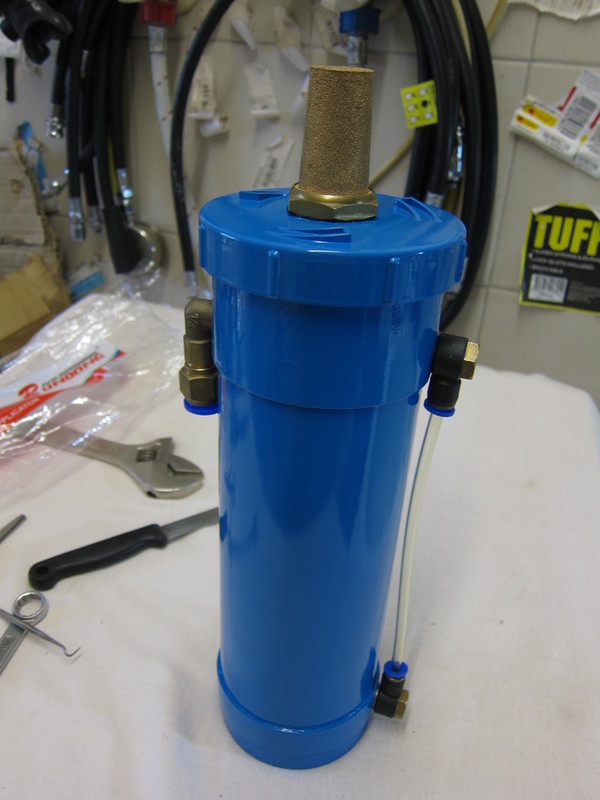

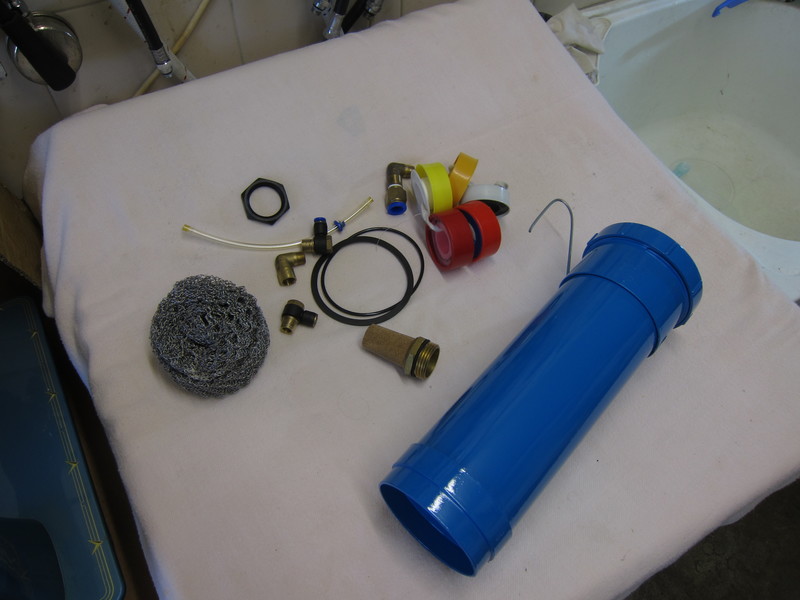

Run them into here













How neat is that!!!

English neat


rhwestfall

Woof!
ScubaBoard Sponsor
Messages
17,919
Reaction score
22,509
Location
"La Grande Ile"
# of dives
200 - 499
I need to come up with something like that....


Omar_k

Registered
Messages
9
Reaction score
0
Location
UK

rjack321

ScubaBoard Supporter
ScubaBoard Supporter
Messages
11,633
Reaction score
6,587
Location
Port Orchard, Washington State
# of dives
1000 - 2499

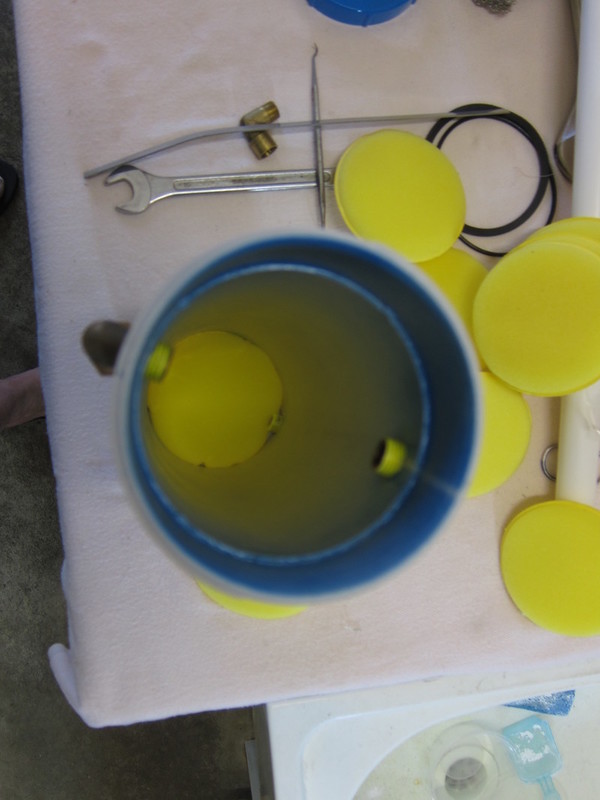

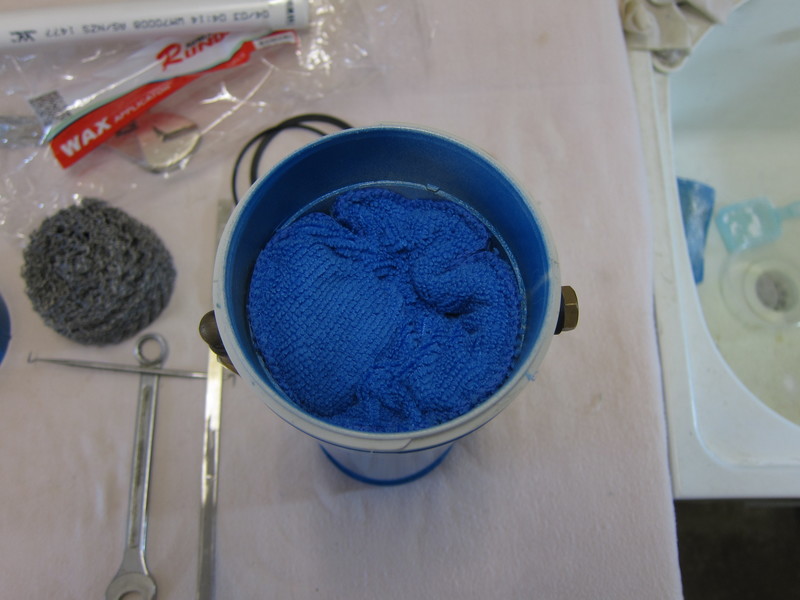

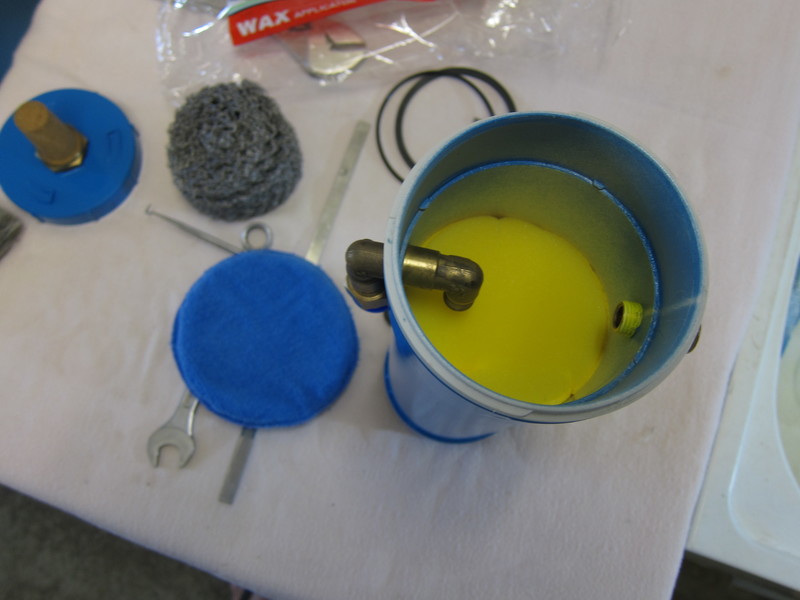

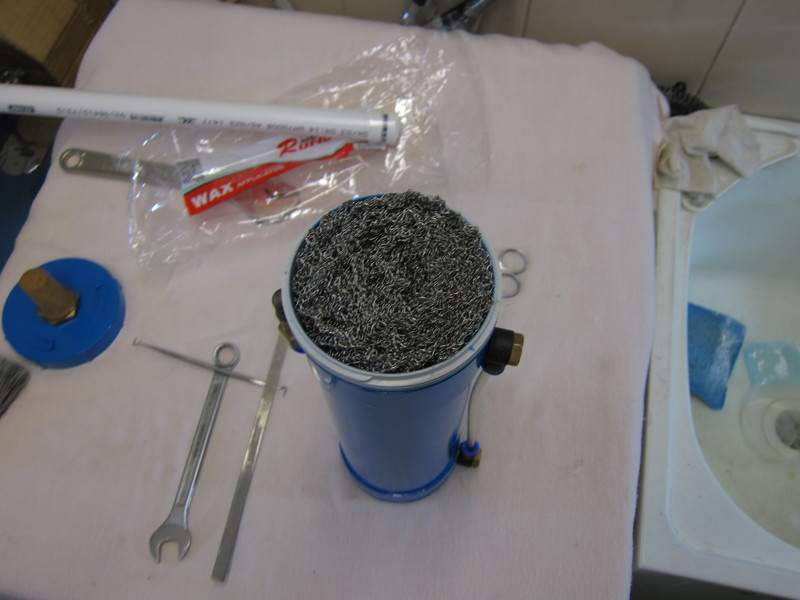

If that’s what you’re draining into, what is the wire wool and cloth there for?

When you open the drains you are getting a blast of high pressure air with an oil water mist in it. Just putting the end of the hose in a bucket ends up spraying the water/oil condensate all over. You need something like the towel or the scrubby pads to diffuse the air blast, slow down the air velocity, allow the volume of air to exit the container fast enough, yet also allow the oily water to collect at the base without getting sprayed all over the next time you open the drains.


Omar_k

Registered
Messages
9
Reaction score
0
Location
UK
When you open the drains you are getting a blast of high pressure air with an oil water mist in it. Just putting the end of the hose in a bucket ends up spraying the water/oil condensate all over. You need something like the towel or the scrubby pads to diffuse the air blast, slow down the air velocity, allow the volume of air to exit the container fast enough, yet also allow the oily water to collect at the base without getting sprayed all over the next time you open the drains.

Thanks rjack321, that makes sense. I’d never thought about that, but I think you’ve saved me making a mess in a container.

Do you know what size inner diameter hose you would need for the 6mm barb connecter on the drains? Would I also need to use a jubilee/pipe clamp to keep it in position?

Cheers


NAM001

Contributor
Messages
5,002
Reaction score
1,318
Location
the moon
# of dives
500 - 999
Thanks KWS - really appreciate you taking the time to help me.

I’d ideally like to avoid changing the bleed valves, if possible. If I slip a hose over the barb fitting, could I clamp it using a jubilee/pipe clamp, or would that risk damaging the end of the bleed valve?

If so, would silicone tubing work? If not, what material would work? Also, how much smaller than the outer diameter of the bleed valve should the inner diameter of the hose be in order to have a snug fit?

Thanks for the suggestion of the brick! You may have saved me spraying my water/oil everywhere!

Cheers
yes you can use a clamp if you want ,,,,, vent it some what slow though. you will find how fast you can drain when the hose blows off. The the barb is small so you dont get a lot of holding power form the clamp. crack the valve at first, let it drain and than open up a bit more so that air is causing the back pressure and not fluid.
