Bypassing Securus electronics?

[cappyjon431]

To make a long story short, we had a torrential rain last night and the electronic connection to my Securus filter (for my Bauer Mariner II) got wet. When I turn the compressor on and it is running through the diagnostics I get a red warning light indicating a problem with the Securus filter (filter is almost new, 10 hours on it) and the compressor won't start.

I dried the electronic connection with a hair dryer but this did not seem to work.

Is there any way to temporarily bypass the electronics for the Securus filter?

Thanks!



[CraigAClark]

Depending on the way the machine is set up, ie. if it has one of the new type controllers or older style, there are ways to jump out the Securus. Your best bet is to look at the wiring diagram for your model. This should tell you where to place the jumper or if the controller can be reprogramed to disregard the Securus. You might also be able to jump out the sensor in the Securus box itself.

Craig



[Zodiacdiverdave]

Yes there is a way, use a jumper wire (18-14 gage) and run it from position # 5 to #6 on the indicator panel.
ZDD



[Namreg 58]

We covered this on 2nd May when you had the same problem. Hit the stop button first and then the start button......this worked for me.



[FVoisine]

Yes there is a way, use a jumper wire (18-14 gage) and run it from position # 5 to #6 on the indicator panel.
ZDD

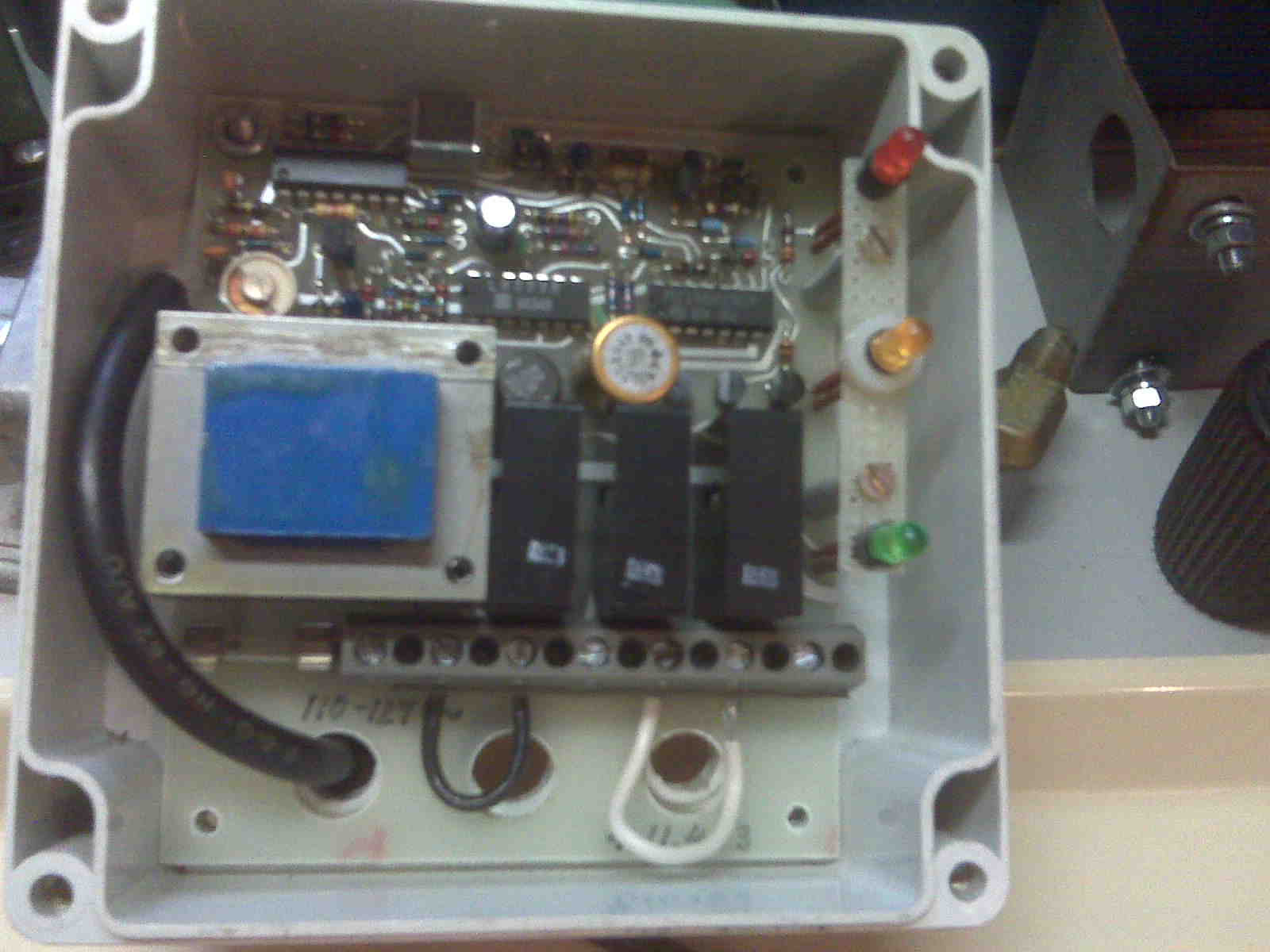

Hi; I have exactly the same problem with my dam securus monitoring system. On your attached picture, I didn't see any connection on # 1 and # 2. On mine, if I disconnect to coming voltage, the compressor doesn't start. Any advice will be welcome !
FV
