Bluetooth Operated Tank filler Valve

[pay]

So without anything attached to the exit port by hooking up a pressure gauge I found it to be the expected 3000 psi. When I attach the tank with a open valve there seems to be no transfer of air since the gauge on the empty tank doesn't move and it doesnt sound like there is anything other than the click of the valve opening



[pay]

Yes that is the concept I'm going for



[2airishuman]

I will respectfully share these two thoughts:

1. This isn't the sort of thing that can be troubleshooted without being there.
2. It does not appear to me that you are sufficiently qualified to do what you are doing safely.

Good luck, and stay safe.



[tursiops]

Looks like you have one each of these, with a solenoid in the middle.?
Dry Suit / Pony Bottle Valve
Yoke Filler - EAS1-3 , Piranha Dive Shop |



[tursiops]

Yes that is the concept I'm going for

Is your one-way fill valve installed backwards?



[northernone]

Does 1 have compressed air in it?
Is 2 open?
Is 3 open?
Does air come out 4?

Cameron



[pay]

opposite air goes in 4. two and three are OPEN and 1 is the empty tank



[tursiops]

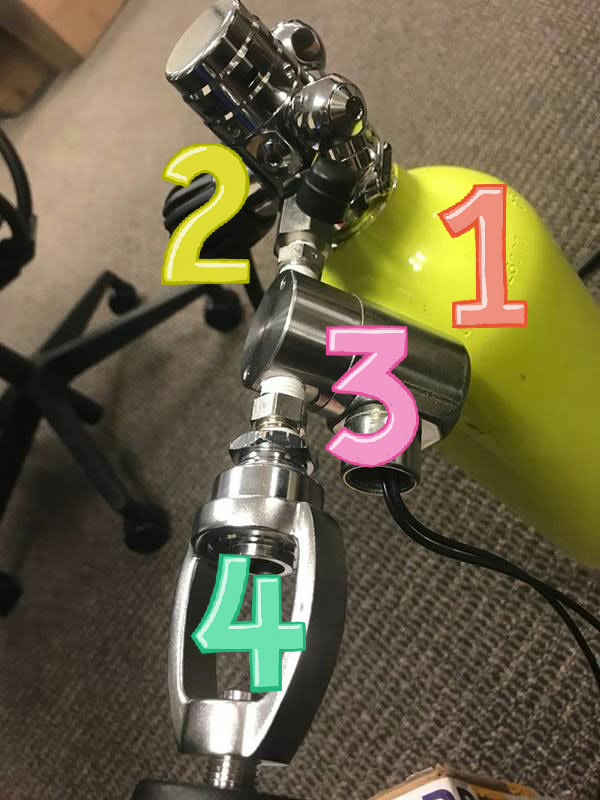

View attachment 461257
Does 1 have compressed air in it?
Is 2 open?
Is 3 open?
Does air come out 4?

Cameron

Backwards. (1) is the bottle being filled; (4) connect to the source bottle.



[northernone]

Thanks.



[pay]

I believe the regulator on the pony tank is intended to be filled that way i have removed the solenoid and filled the tank with this set up.
