Desert_ Diver
New

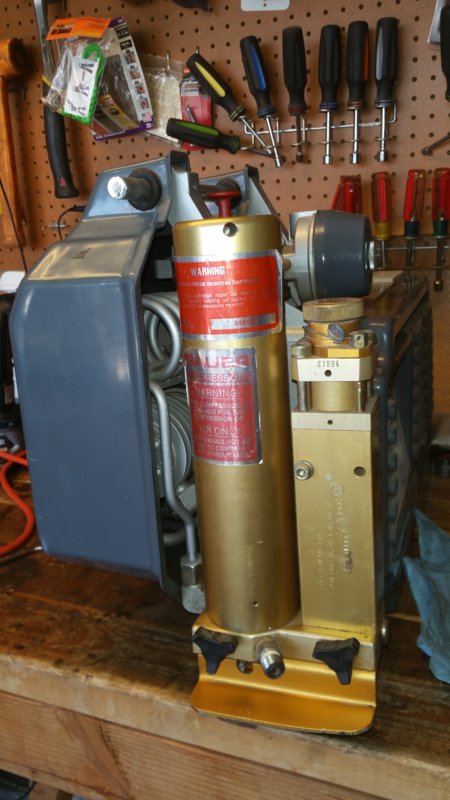

A buddy of mine from San Diego came by today and dropped off this compressor. He said it was sitting in a friend of the family's storage locker for about 20 to 25 years. He plugged it in and it knocked quite a bit.

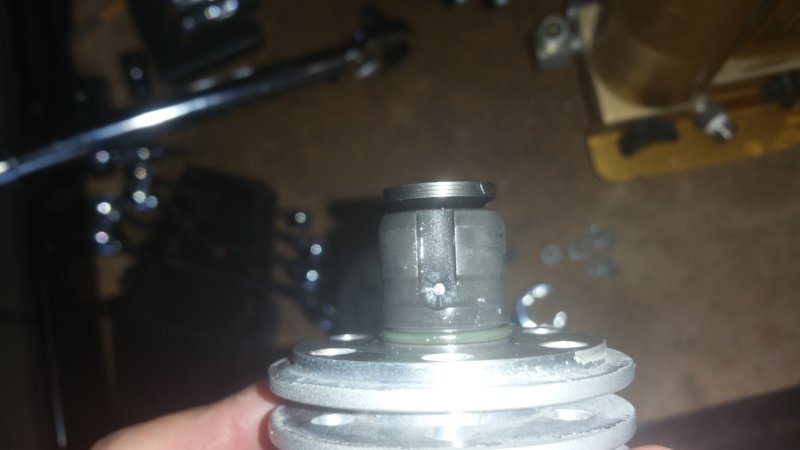

He asked if I wanted it, knowing I already have a scuba compressor and have worked on them before. He thought maybe I can fix it. So, I'm not sure if anything's really wrong with it. I started it up and it did knock, but I plugged it immediately. It did sound like my Coltri compressor when it starts. It knocks a bit until the third stage piston gets some back pressure on it and then the knocking stops which only takes a second or two. I was told the knock is due to a third stage floating piston.
I watched a video on YouTube where somebody had a Utilis 10 with a gas motor. They started it up and it made that same knock (I tried the separate the engine noise from the compressor but it is a little hard to do) for probably 15 seconds or so I'm thinking again it's the third stage piston and it maybe a free floating piston, and it's knocking because it doesn't have any back pressure on it.
There is no data plate. There is no model number stamped on it. Just a date on the coalescer unit. What I've seen in the pictures it looks like it could be either a Varius V2B or Utilus 10. The unit has no real signs of being used much, it looks like it was very well taken care of.
Any help would be appreciated.
