Suggestions for Weight Trim Pockets that can be attached directly to Backplates (to fit between BP and Wing in a SINGLE Tank kit)

[inquis]

Zip tie a belt pouch using the outer slot and 2 perimeter holes?



[BoltSnap]

Zip tie a belt pouch using the outer slot and 2 perimeter holes?

?



[lexvil]

Bolt both plate together, if the slots line up. I just ordered the alexi one to try out.



[inquis]

Zip tie a belt pouch using the outer slot and 2 perimeter holes?

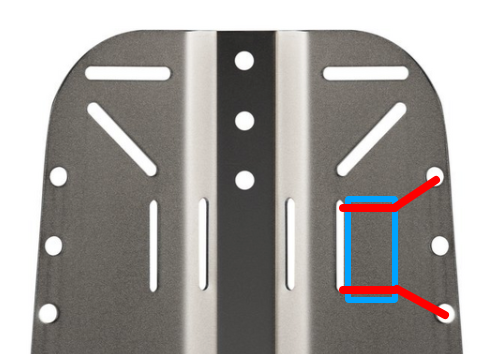

The blue is the belt-attachment loop on the back of a trim pouch. Red are zip ties.



[BoltSnap]

The blue is the belt-attachment loop on the back of a trim pouch. Red are zip ties.

View attachment 767105

Yes, worth a try. Thank you.



[pickens_46929]

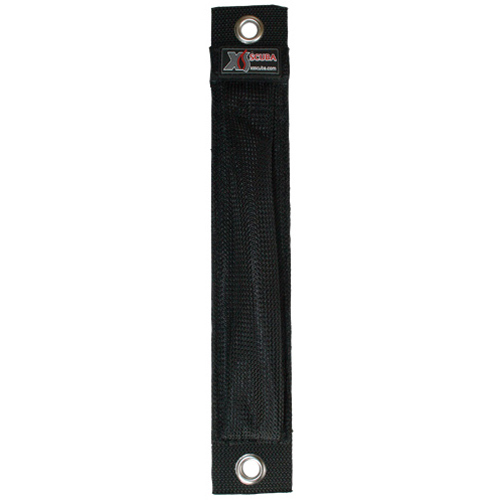

XS Scuba V Weight Pouch

Designed to adjust your- trim when using a set of double cylinders, the XS Scuba 2-compartment V"" nylon mesh weight pouch attaches to back plates center groove with cylinder band bolts. Pouch is equi

www.scuba.com

Hollis SMS100 Weight Plate

Weight system designed for the SMS100 side mount harness (see SKU: HLSSMS) makes a perfect accessory for those with additional weight requirements. The weight plate mounts to the rear of the SMS100 sin

www.scuba.com

Halcyon V-Weight Pouch

Halcyon V-Weight Pouch 12.400.010, Yet another tool that allows you to get weight off your weight belt

scubadelphia.com

Halcyon 5 Lbs (2.7 Kg) Convertible Weight Insert w/Bolts

5 Lbs Convertible Weight Insert *Buy Halcyon at DIVESEEKERS.com 888-SCUBA-47

scubadelphia.com

Stealth Central Spine Trim Weight Pocket

Stealth Central Spine Trim Weight Pocket xDeep Central - Spine Weight Pocket is the core of THE WORLDS’ BEST SIDEMOUNT WEIGHT MANAGEMENT SYSTEM !Central weight pocket allows you to place the weight in an ideal position relative to your center of gravity.

www.diverightinscuba.com

Or you can go old school...



[runsongas]

does the xdeep spine pockets only have one hole? the apeks wsx might be better in that case. not sure how comfortable it would end up though.



[brsnow]

Sub gravity has exactly what you are looking for



[FishWatcher747]

How much weight are you trying to get on the backplate?

I went through this scenario. I am leg heavy and wanted to get all my lead off my belt. I used 3 aluminum rivets and washers on each side of the fabric to attach each of 2 three pound weight pockets to the upper plate on each upper outer corner. I used available holes and slots and didn't need to drill anything.

My warm water aluminum plate set up is just this, 2 three pound weight pockets attached to upper plate and 2 five pound weight pouches to upper cam band. (The 5 pound pockets actually hold 6 pounds of lead). I have a wing with stabilization bars and I do not use an STA.

So I have the potential of putting 18 pounds up high and get a perfect weight distribution.

Well when I went to the trouble of attaching the weight pockets to the upper plate I was using 17# with a 5mm full wetsuit in salt water.

I am a relatively new diver 2 1/2 years and I now use 11 pounds with this set up and don't need or use the weight pockets attached to the plate. I just stick the weight in the upper cam band pockets. The one I put 5 pounds in I can reach back and release the weight if I need to ditch weight.



[SlugLife]

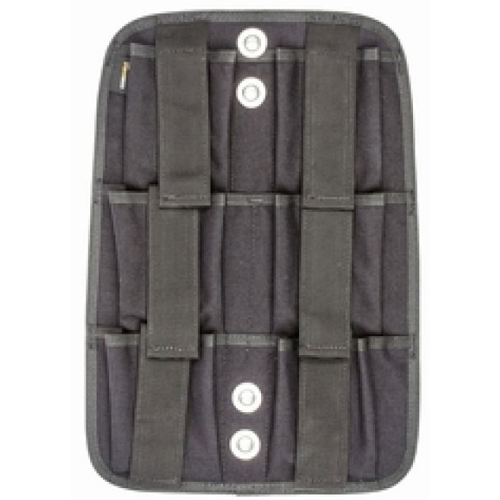

There are soft "plates" like this

Nomad XT Weight Plate - Dive Rite

Quickly add weight to your Nomad XT sidemount system. Adding ballast weight to the Nomad XT sidemount system is made easy with the Nomad XT Weight Plate.

www.diverite.com

28.49€ |Scuba Tauchen BCD Gewicht Harness Backplate Tech Tauchen Zurück Platte Kissen Pad mit Beutel|Pool und Zubehör| - AliExpress

Smarter Shopping, Better Living! Aliexpress.com

www.aliexpress.com

I friend of mine uses one off ali express and it works like a charm for him.

This is what I have on one of my SideMount BCDs and it works great. You can easily trim left/right/forward/back as needed. I think I got the "hollis sms" branded one at a steep discount, but the ali-express ones look identical.
