Info Diving and Seamanship

[Rich Keller]

Like this?
Tips on Tying Your Boat to the Dock | Boating Safety Tips, Tricks & Thoughts from Captnmike

View attachment 188692

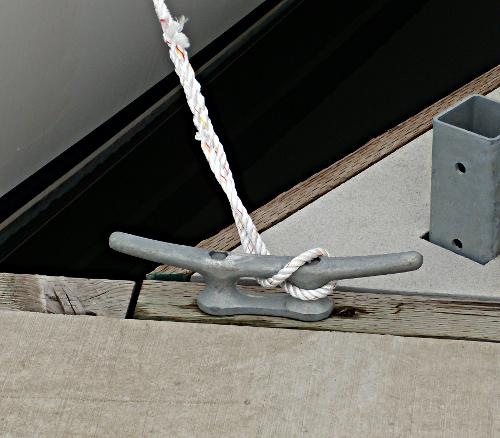

I have also seen the spliced eye run through the center of the cleat and hooked over both horns when lines are cast-off and left on the dock.

I always run the splice through the center of the cleat and hook it over both horns as it just seems more secure to me especially once you cast off and leave that rope behind.



[Storker]

On the subject of ropes...a cautionary word to your non boaty friends about the dangers of ropes is always good. Have seen too many people standing in coils of ropes totally oblivious to the dangers

*shudder*

Another not uncommon error is someone looping the rope around your hand when they need a strong grip on it. That's a great way to either lose a hand or follow the rope down under water. I think that my most, um, "urgent" message to my son at sea was when I saw him looping the anchor rope around his hand when he was hauling anchor while we were trying to reposition a 22-footer with a slipping anchor very close to a reef.

I always run the splice through the center of the cleat and hook it over both horns as it just seems more secure to me

Me, too. Also, I don't like rope coils on the dock. I prefer the coiled rope to be stowed aboard.


--
Sent from my Android phone
Typos are a feature, not a bug



[Akimbo]

This thread might be interesting to help you formulate plans if you have to abandon the vessel due to fire or sinking. I am a firm believer you should always be prepared to discover a new wreck, including the boat you came out on.

http://www.scubaboard.com/forums/hawaii/487878-readers-poll-boat-sinking-don-scuba-life-vest.html

It can happen anytime including while you are asleep below deck, on the bottom, or on deck. The more you think through the possibilities the more likely you are to survive yourself and help others.



[CaptainHornblower]

Ok, back to nautical factoids, terms, etc. Did you know where the expression "letting the cat out of the bag" came from? It's a reference to getting out the cat of nine tails used by the British navy for punishment. They kept it in a red velvet bag so the blood stains from prior use wouldn't show. It was a small whip with 9 strands on it, each strand roughly 1 yard long. Guess where the expression "going the whole 9 yards came from?"



[Akimbo]

There are a few things you should know about marine electrical systems. At the simplest level, they are very different even when they look like devices in your house. Ask before plugging something in.

The next-level of understanding marine electrical systems centers around verifying that voltages AND frequencies (50 or 60 Hz or cycles/second) are compatible with your device. This is especially important on a Liveaboard that caters to passengers from around the world. You not only risk burning up your device, but you could start a fire offshore where there's no fire department to call.

There is another harder to understand aspect that is especially complicated by devices made for the North American Market: Grounding and Bonding. Every building with its own electrical service has one or more ground rods driven into the earth. This helps prevent people from being electrocuted. There's no place to drive a ground rod on a ship or boat. Using the vessels' hull to carry current to ground via sea water creates huge problems with electrolysis and can burn out other electrical devices onboard.

Understanding this is really important for small boat owners that are large enough for a generator. Installing the wrong device can cause huge problems on your hull and everyone else's in the marina. Anodes can corrode 10x faster, bronze hull fittings can crumble, and you won't be very popular with the owner of that Aluminum boat tied up next to you.

Above all, don't use a landlubber electrician!​

Marine electrical systems are quite different, especially in North America. There is no Neutral that is tied to ground at the panel and expen$ive generators can get damaged when incorrectly interfaced to shore power. Don't use less expensive automotive battery chargers or many other grounded devices made for use onshore. Check first and get a marine electrician when you aren't positive. You can't trust the advice from your local hardware store.



[Donnah]

If you dive often from a non-charter private boat, whether you are captaining it or just there for the dives, it makes sense to me to take a boat safety course. I've heard that at times taking an agency specialty course may include boat safety stuff and stuff like anchoring, docking, etc. If such a course is only about the diving I can't see what you would learn that wasn't just logical and easily remembered after one's first charter experience.

As divers, not boaters, my husband/buddy and I took a boating safety class when we first came to the Keys. I think we were the only adults in the class who had NOT been caught with an on-water DUI.



[akex9898]

Hi I just made this account today because my interest was sparked while watching some youtube videos of scuba diving and it became aware to me that i could do this as a career? I am only a sophomore in high school and while i have always had an interest in marine biology, it never really occurred to me that i could make a living scuba diving. Can anybody give me some insight as to what it's actually like? Also, how much schooling would i need? Thanks.



[Wookie]

There are a few things you should know about marine electrical systems. At the simplest level, they are very different even when they look like devices in your house. Ask before plugging something in.

The next-level of understanding marine electrical systems centers around verifying that voltages AND frequencies (50 or 60 Hz or cycles/second) are compatible with your device. This is especially important on a Liveaboard that caters to passengers from around the world. You not only risk burning up your device, but you could start a fire offshore where there’s no fire department to call.

There is another harder to understand aspect that is especially complicated by devices made for the North American Market: Grounding and Bonding. Every building with its own electrical service has one or more ground rods driven into the earth. This helps prevent people from being electrocuted. There’s no place to drive a ground rod on a ship or boat. Using the vessels’ hull to carry current to ground via sea water creates huge problems with electrolysis and can burn out other electrical devices onboard.

Understanding this is really important for small boat owners that are large enough for a generator. Installing the wrong device can cause huge problems on your hull and everyone else’s in the marina. Anodes can corrode 10x faster, bronze hull fittings can crumble, and you won’t be very popular with the owner of that Aluminum boat tied up next to you.

Above all, don’t use a landlubber electrician!​

Marine electrical systems are quite different, especially in North America. There is no Neutral that is tied to ground at the panel and expen$ive generators can get damaged when incorrectly interfaced to shore power. Don’t use less expensive automotive battery chargers or many other grounded devices made for use onshore. Check first and get a marine electrician when you aren’t positive. You can’t trust the advice from your local hardware store.

This is almost 100% true, and the differences are miniscule. There is a neutral in marine systems, and sometimes a grounding shoe. 3 phase balanced systems have no ground, and modern electronics (UPSs, etc) require a ground, or you have to listen to the incessant beeping. In that case, a isolation transformer is installed with hot, common, and ground, and the ground is tied into the neutral on the primary side. The point is, a marine electrician certified by ABYC knows this. The guy hanging out at the marina might or might not.

---------- Post added August 17th, 2014 at 06:46 AM ----------

Can you explain IALA regions? Please tell me it has nothing to do with driving on the left side!

IALA -International Association of Lighthouse Authorities yes, it has to do with driving on the wrong side of the road, except it's the wrong side of the channel. Doesn't necessarily apply to folks who drive on the wrong side of the road, examples Bahamas and France. Every chart will explain which IALA is in effect.

It always struck me as amusing that the US Navy insisted on using port and starboard, but gives orders to the Helmsman to steer right or left to the new heading.

Port and Starboard are the sides of the vessel. Right and left are directions. The confusing part is rudder commands. You might order 5 degrees of right rudder, or full right rudder, and when ordering full right rudder, the correct answer is "he rudder is hard to Starboard, sir".

I noticed that your cleat hitch instructions and the one in my OP, don’t illustrate how to make the final “twist” on the cleat like an old salt. This video should help even the most “knot challenged” diver look good:

I never "cleat off" a line, either on the boat or on the dock. If you have to get away in a hurry, you have a half-hitch to deal with. Dock gets the eye, or, if tying up self tended, the eye comes back to the boat.



[Akimbo]

… There is a neutral in marine systems, and sometimes a grounding shoe…

This is probably the most confusing aspect for North American land-based electricians to grasp. The white wire is often call "Neutral", but it is really a hot wire on a boat or ship because it comes off generator windings or a transformer. A true "Neutral" has virtually no voltage between it and a grounded wire. A shore or marine 120VAC generator will deliver 120VAC with no ground at all. Shore-based wiring won't deliver 120VAC without a Neutral grounded somewhere, usually at the power company's meter.

The ABYC (American Boat and Yacht Council) specifies "bonding" the white 120VAC hot wire at the generator(s) to ground to make a lot of electronic items work properly, but it isn't quite the same animal.

Here is a good article on why it is so critical to properly interface grounds and neutrals on a boat and shore power:

http://www.abycinc.org/news/Boating_ESD_May_2013.pdf

To the best of my knowledge, USCG requirements are consistent with ABYC for small boats and the ABS (American Bureau of Shipping) for larger vessels.



[Akimbo]

It is hard to use your seamanship skills when you are losing your lunch over the side. Almost everyone gets sea sick under the right conditions. Some people are lucky and it passes along with their stomach contents while others are miserable until stepping back onshore. Scubaboard has tons of threads on sea sickness and I encourage you to explore them. Most people can learn to manage sea sickness with a little preparation.

Doc Vikingo's Sea Sickness Remedies

This sometimes embarrassing malady goes far beyond misery. It can be physiologically dangerous over an extended period, incapacitating in an emergency, and deadly to divers.

Barfing in the Water
There is a controversy over leaving your regulator in your mouth or removing it when vomiting underwater. Neither option is especially good. Leaving the mouthpiece in reduces your risk of aspirating sea water, but increases your chances of aspirating stomach acids and undigested solids that can obstruct your airway.

A friend of mine is skipper on a charter boat in Monterey. About 10 years ago at Eric’s Pinnacle he had a diver that puked in his regulator at around 40'. He aspirated some chucks which blocked his airway. As described to me, the diver was aware of his situation and had to make the conscious decision to embolize himself...

FFM (Full Face Mask) users especially need to prepare for the possibility and practice how to manage it. Aside from getting sea sick, nausea is a symptom of Oxygen Toxicity and many FFM users use high PPO2 to accelerate decompression.

The method I have decided on, but have yet needed to implement, involves facing down and holding the second stage with a finger poised on the purge button. The “plan” is to quickly remove the mouthpiece at the right moment to avoid debris and concentrate on not inhaling until the regulator is back in my mouth with the purge button is depressed. This is the time to forget about not touching anything. Plant yourself firmly on the bottom if you can so you don’t inadvertently ascend with your airway closed causing an embolism. Anyone who has been sea sick knows your ability to multitask disappears with your last meal. Being mid water would not be wise especially if your chosen method does not go well.

It is worth considering your diet for 12-18 hours before your boat trip until you determine your susceptibility. A liquid protein breakfast drink is less likely to produce chunks that can clog your regulator and airway. Overheating in a suit with a tight neck seal and breathing Diesel exhaust are especially unhelpful. For most people, the ride out is the worst and symptoms often subside at anchor.

It may be worth taking a few boat trips on whale watching or sports fishing boats before committing yourself to dive boat if you are concerned. There are a number of medications available, however loading up on them as a prophylactic measure will never teach you if they are necessary in the first place.

Transderm Scop (The Patch) ? DAN | Divers Alert Network ? Medical Dive Article

As for seamanship, always use the side of the boat that is downwind.
