+ the vodka of your choice, heh, heh . . .If only there were a better way
Welcome to ScubaBoard, the world's largest scuba diving community. Registration is not required to read the forums, but we encourage you to join. Joining has its benefits and enables you to participate in the discussions.
Benefits of registering include
+ the vodka of your choice, heh, heh . . .If only there were a better way
thanks for this sir. I appreciate you taking the time.I think the tool still leaves voids.
Sure. I'll make a video and post that.
It's pretty straightforward.
Get a syringe and blunt needle. I can send you some plastic blunt needles that are perfect if you need one.
Starting at the bottom coil, fill the spring from the inside out, working your way up to the top. Add a thin layer to the outside of the spring.
Put the environmental seal on the reg after putting a thin line of lube circumferentially in each corner of the seal. Don't try to fill it.
Fill the ring deep in the body where the spring end will rest. This will displace lube UP toward the holes as you assemble.
Run a line of lube in between each ambient hole of the interior of the reg body up to the rim.
All this will take approx 8cc of lube.

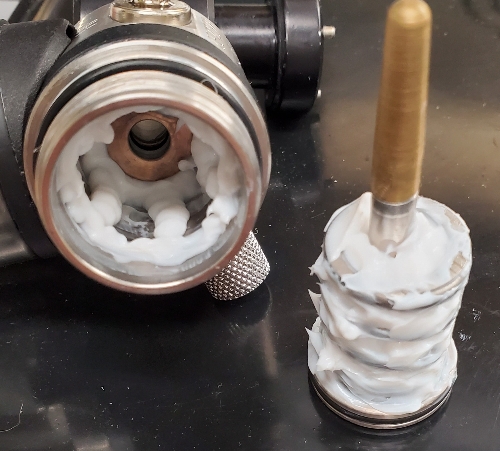

View attachment 722263
Slowly insert the piston and bullet until the spring bottoms. If you haven't been liberal enough, manually press on the piston head until goop and (hopefully few) bubbles almost start to squeeze around the head. After you release pressure, fill the gap between head and reg body, and wipe out to a clean line (you don't want much spilling into the IP chamber, tho some will).
Add the turret and slowly screw on.
You'll hear the seal click and pop as air in the seal escapes. Massage the seal before it's completely screwed on to distribute lube that has come out the ambient holes.
Finish screwing on the turret. The seal should be bulging slightly. Using a pinch technique like for removing an oring, squeeze the seal to express excess lube and any stray bubbles until it is just slightly concave.
Assuming you previously assembled, checked IP stability and disassembled the first stage before filling, repressurize it. The seal will once again bulge. Express excess lube again (wiping your fingertip against the rim of some small container where you keep your excess for the next six years of orings), until the seal is just flat when pressurized. This technique will waste approx 1.5cc of lube.
When you depressurize, it will suck in firmly concave. You're done.
But the extent to which the Atomic seal goes from full and flat (pressurized) to really concave (unpressurized) shows why I keep a spare 2cc syringe of lube around to top up the seal every 3-6 months of diving. Unless you are really careful about not handling the seal when pressurized, you'll inadvertently squeeze out some lube on a dive trip, and a small bubble of air will replace it under the seal when off the tank. That's not really an issue, because it's all outside the spring mechanism. But it does fractionally reduce the responsiveness of the reg to ambient pressure.
I think the tool still leaves voids.
Sure. I'll make a video and post that.
It's pretty straightforward.
Get a syringe and blunt needle. I can send you some plastic blunt needles that are perfect if you need one.
Starting at the bottom coil, fill the spring from the inside out, working your way up to the top. Add a thin layer to the outside of the spring.
Put the environmental seal on the reg after putting a thin line of lube circumferentially in each corner of the seal. Don't try to fill it.
Fill the ring deep in the body where the spring end will rest. This will displace lube UP toward the holes as you assemble.
Run a line of lube in between each ambient hole of the interior of the reg body up to the rim.
All this will take approx 8cc of lube.
View attachment 722263

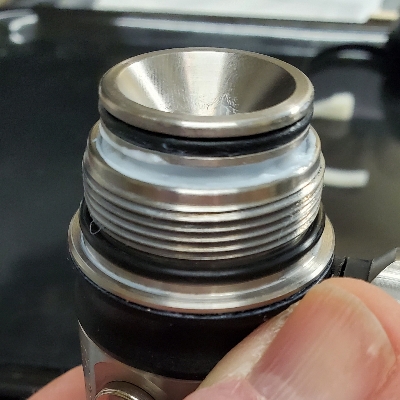

Slowly insert the piston and bullet until the spring bottoms. If you haven't been liberal enough, manually press on the piston head until goop and (hopefully few) bubbles almost start to squeeze around the head. After you release pressure, fill the gap between head and reg body,
View attachment 722587
and wipe out to a clean line (you don't want much spilling into the IP chamber, tho some will).
Add the turret and slowly screw on.
You'll hear the seal click and pop as air in the seal escapes. Massage the seal before the cap is completely screwed on to distribute lube that has come out the ambient holes.
Finish screwing on the turret. The seal should be bulging slightly. Using a pinch technique like for removing an oring, squeeze the seal to express excess lube and any stray bubbles until it is just slightly concave.
Assuming you previously assembled, checked IP stability and disassembled the first stage before filling, repressurize it. The seal will once again bulge. Express excess lube again (wiping your fingertip against the rim of some small container where you keep your excess for the next six years of orings), until the seal is just flat when pressurized. This technique will waste approx 1.5cc of lube.
When you depressurize, it will suck in firmly concave. You're done.
But the extent to which the Atomic seal goes from full and flat (pressurized) to really concave (unpressurized) shows why I keep a spare 2cc syringe of lube around to top up the seal every 3-6 months of diving. Unless you are really careful about not handling the seal when pressurized, you'll inadvertently squeeze out some lube on a dive trip, and a small bubble of air will replace it under the seal when off the tank. That's not really an issue, because it's all outside the spring mechanism. But it does fractionally reduce the responsiveness of the reg to ambient pressure.
It's called a sealed diaphragmIf only there were a better way
Or a sherwoodIt's called a sealed diaphragm
Mostly I learned that Atomic is a horrible tease, my guess was they were going to hijack the F8 design and make it in titanium (already have Atomic parts inside the F8 second)Maybe there's something coming...
At only $2,700!
Atomic just released a teaser for a new reg that @BoltSnap sent me.
What can we deduce from these?
View attachment 785133View attachment 785134
Told you it was a teaser!
Looks like the opening for an old Twilight Zone episode . . .Maybe there's something coming...
At only $2,700!
Atomic just released a teaser for a new reg that @BoltSnap sent me.
What can we deduce from these?
View attachment 785133View attachment 785134
Told you it was a teaser!
