No idea. The manual says three settings of conservative-ness. I'm not a math guy!
Welcome to ScubaBoard, the world's largest scuba diving community. Registration is not required to read the forums, but we encourage you to join. Joining has its benefits and enables you to participate in the discussions.
Benefits of registering include
Two weeks ago I dove both the mares puck pro and suunto zoop novo, at the same time on 17 dives.
I was on nitrox, from 28-32% O2.
That's what the boat provided.
The mares has three algorithms from more liberal to more conservative. I found that on all three, I had much less no decompression time then on the Suunto. With both computers set to the same mix and both on my arm each dive, the mares was reading up to 25 min. Less time no deco time. That's strange because I've read that Suunto has a very strict conservative algorithm. Is this normal? Should I send the mares in for an evaluation? Or could the Suunto been on the liberal setting?
According to some other threads, that chart is not showing what you think it shows.Mares is more conservative than SUUNTO.

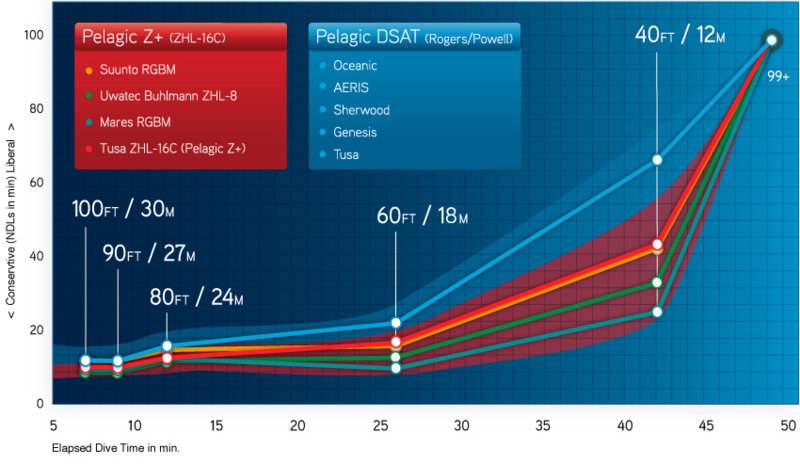

SUUNTO and TUSA are the most liberal implementations of the RGBM algorithm among the major manufacturers. As shown on the chart below.
View attachment 438905
Source: http://www.oceanicuk.com/dual-algorithm
NDL is a terrible measure of conservatism. It only reflects the current likely leading tissue and then because of how limits are approached it over emphasises differences.Two weeks ago I dove both the mares puck pro and suunto zoop novo, at the same time on 17 dives.
I was on nitrox, from 28-32% O2.
That's what the boat provided.
The mares has three algorithms from more liberal to more conservative. I found that on all three, I had much less no decompression time then on the Suunto. With both computers set to the same mix and both on my arm each dive, the mares was reading up to 25 min. Less time no deco time. That's strange because I've read that Suunto has a very strict conservative algorithm. Is this normal? Should I send the mares in for an evaluation? Or could the Suunto been on the liberal setting?
If they were both set on approximately the same setting, i.e. most liberal, I would think they would be pretty close in NDL, as both are relatively conservative deco algorithms. One explanation for the Mares being more conservative is the altitude setting. This might happen in two different ways. If the pressure sensor is faulty, it may be registering incorrectly if the adjustment is automatic. If the adjustment is manual, it may simply be set incorrectly. For the former, if you have a table of NDLs in your owner's manual, you can check the computer via the planning function to see if the NDLs match. I had an Oceanic ProPlus with a faulty pressure sensor and the NDLs no longer matched the table, considerably shorter. For the latter, you can just check the setting.Two weeks ago I dove both the mares puck pro and suunto zoop novo, at the same time on 17 dives.
I was on nitrox, from 28-32% O2.
That's what the boat provided.
The mares has three algorithms from more liberal to more conservative. I found that on all three, I had much less no decompression time then on the Suunto. With both computers set to the same mix and both on my arm each dive, the mares was reading up to 25 min. Less time no deco time. That's strange because I've read that Suunto has a very strict conservative algorithm. Is this normal? Should I send the mares in for an evaluation? Or could the Suunto been on the liberal setting?
I don't think the Puck Pro manual has such a table in it.One explanation for the Mares being more conservative is the altitude setting. This might happen in two different ways. If the pressure sensor is faulty, it may be registering incorrectly if the adjustment is automatic. If the adjustment is manual, it may simply be set incorrectly. For the former, if you have a table of NDLs in your owner's manual, you can check the computer via the planning function to see if the NDLs match.
I believe you are correct, I don't think any of the RGBM computer manuals have any NDL tables, not sure exactly why. I'm only familiar with Oceanic, they have table for both DSAT and PZ+ in the back of every manual. I can only guess they do not want folks comparing their NDLs with other algorithms. First dive NDLs at the most liberal setting would be extremely easy to list.I don't think the Puck Pro manual has such a table in it.
According to some other threads, that chart is not showing what you think it shows.
Agree, the details of the graphic are obscure, but the relative performance of the algorithms is clear and consistent with other sourcesI have read those other threads.
I have also seen the post where a certain poster claims the graph (a previous version with a typo) as his own work.
Its a single dive profile showing NDLs. I can't help it if some readers are too thick (or pretend to be) to understand a fairly simple single dive NDL graph.
.
