Where do you all buy your o-rings?

Please register or login

Welcome to ScubaBoard, the world's largest scuba diving community. Registration is not required to read the forums, but we encourage you to join. Joining has its benefits and enables you to participate in the discussions.

Benefits of registering include

  • Ability to post and comment on topics and discussions.
  • A Free photo gallery to share your dive photos with the world.
  • You can make this box go away

Joining is quick and easy. Log in or Register now!

If you have Apeks regs

Ha ha ha yeah man I do I do I do I do I do!

Apeks IDBSCross Sectn.Inner diam.SCUBA Application Seal
-0031/161/16High-Pressure Hose/SPG swivel
AP64030041/165/64High-Pressure Hose/SPG swivel (less common)
AP12990061/161/8Apeks HP seat (1st stage)
AP11540101/161/4Low-Pressure Hose/2nd Stage Regulator
Cylinder Valve Stem
Apeks crown (2nd stage)
AP14090111/165/16Standard Low-Pressure Port/Hose (3/8 UNF)
Apeks adjusting screw (2nd stage)
Apeks conical filter (1st Stage)
Apeks FSR HP crown (1st stage)
Power Inflator quick disconnect oring
AP14450121/163/8High-Pressure Port/Hose (7/16 UNF)
Manifold and Manifold Port Plugs
AP14100131/167/16Large Low-Pressure Port/Hose (1/2 UNF)
Apeks balance plug inner (1st stage)
AP11590141/161/2Standard Yoke Regulator/K-valve
Apeks ATX adjuster screw (2nd stage)
AP12670151/169/16Apeks value spindle (2nd stage)
Cylinder Valve Bonnet Nut
AP14380191/1613/16Apeks Venturi (2nd stage)
Apeks turret bolt (1st stage)
AP14200241/161-1/8Apeks Turret (1st stage)
AP11661113/327/16Apeks DIN Regulator/Valve
Apeks Yoke spare (2nd stage)
Note: Yoke valves often use BS112 or BS014
-2141/81Cylinder with Large Neck/Valve
(3/4 NPS - All Aluminum, most Steel cylinders)
AP20412x1
(606)
1mm2mmApeks shuttle valve (2nd stage)
AP57112.5x1
(607)
1mm2.5mmApeks ATX adjuster screw nib (2nd stage)
AP130015x1.51.5mm15mmApeks HP balance plug outer (1st stage)
-0062.9mm1.78mmPower Inflator spindle (Polyurethane)
-0121/163/8Power Inflator cylinder inner oring (Buna)
-1123/321/2Power Inflator cylinder outer oring (Buna)
-2041/83/8Power Inflator oral inflate oring (Buna)

And Scubapro too!





I saw them live!

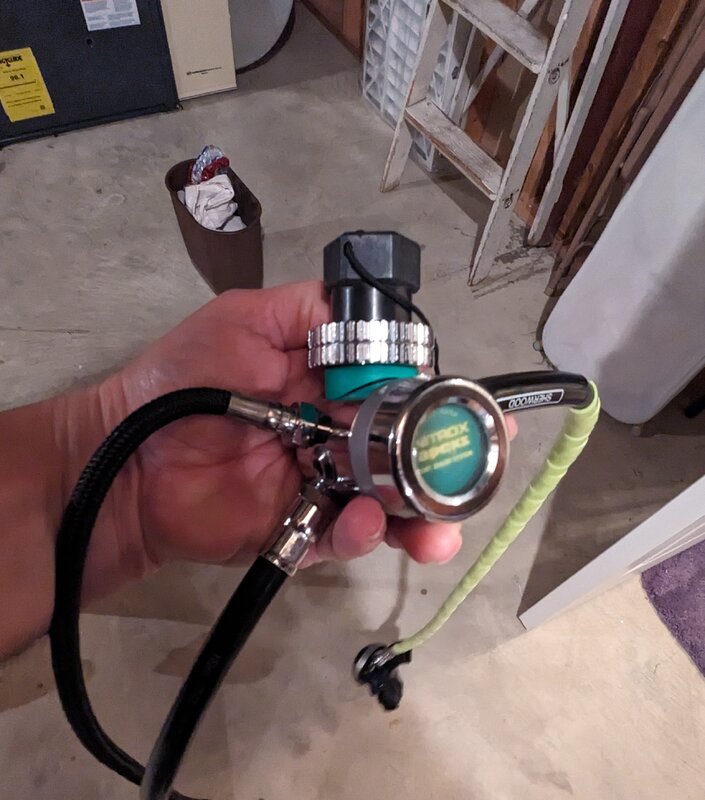

Slight hijack here. I got this reg in an estate type sale years ago but never new exactly what model it is. DST ?

@Tanks A Lot , yeah I know the picture wasn't great but the reg is so basic looking I didn't know if there was some identifying characteristic I should get in the pic or not.

I know which o-rings I'll need if I want to service it now though.

I believe you slipped a line somewhere if I'm not totally off now. The BS0351-16 with it's 35.1mm strikes me as way too big.
You're quite right! My transcription error.
BS4518 151-16 (1.60x15.10) is what I believe the oring to be. I corrected my post above. Thanks for cross-checking!
This is the spreadsheet I started preparing after measuring a few kits:


Attachments

  • Apeks_ORings_Measured.xlsx
    16.7 KB · Views: 221
Anybody has o-ring specs for Big Blue lights?

Well, it only took three of us to get it wrong to finally get to the right answer! My BS0161-16 (1.6mm x 16.1mm) is off by a whole mm. Your BS4518 151-16 (1.60x15.10) is likely the correct size.

That is a pretty spreadsheet you made.

I can confirm that:
  • AP1409 is equal to a BS011
  • AP1445 is equal to a BS012
  • AP1299 is equal to a BS006
  • AP1298 is equal to a BS017
  • AP1166 is equal to a BS111

These sizes come right from Apeks and so are correct.

Do you know the duro for AP1166? I use viton duro 90 caz what's what I got in the kit.. and have to replace them quite often as they simply deform and lose the round cross section.
