Tank Valve with 1/4 NPT inlet for Scuba Tools H.P. Manager

[Learn Scuba Chicago]

Does anyone know where to find a tank valve that has a 1/4" NPT inlet? We have a Scuba Tools H.P. Manager with a Genesis valve that has one. Was wondering if anyone knew of a place to get them or are these special fabrications. All valves I am familiar with have a snorkel on them.



[James79]

Does anyone know where to find a tank valve that has a 1/4" NPT inlet? We have a Scuba Tools H.P. Manager with a Genesis valve that has one. Was wondering if anyone knew of a place to get them or are these special fabrications. All valves I am familiar with have a snorkel on them.

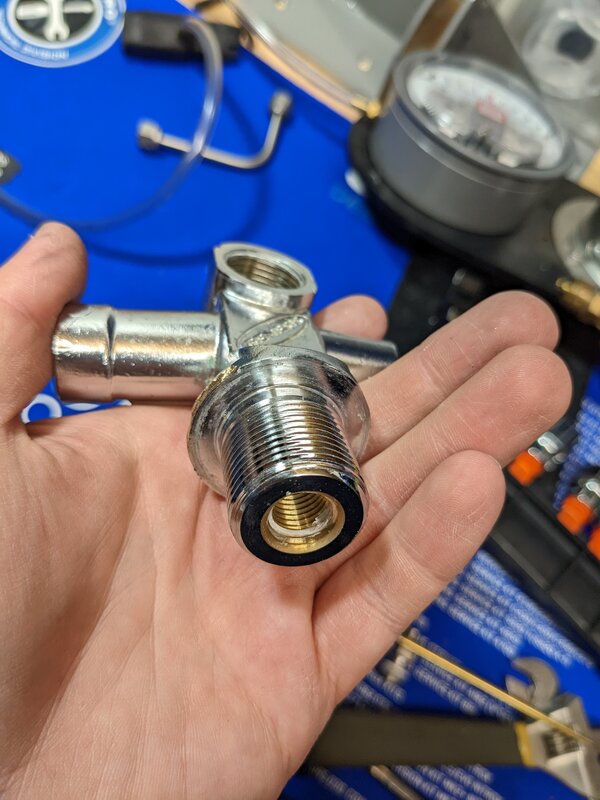

View attachment 712173

Just looking at the exposed brass in the NPT inlet makes me suspect they machined the NPT inlet into a standard valve. Just a guess though.
Respectfully,

James



[Scared Silly]

AFAIK these are fabricated specifically for the HP Manager. I have similar but it is SP valve. Pete (the original owner of Scuba Tools) was well known in the SP circles.

I would suggest sending a note to the current owners of ScubaTools.



[OTF]

That would be easy to make with an old valve, drill press, and tap. What is the purpose of this though?



[Learn Scuba Chicago]

That would be easy to make with an old valve, drill press, and tap. What is the purpose of this though?

the 1/4" NPT fitting goes to an HP hydraulic line which goes into the outflow port of a pressure regulator.

Dual Pro Stand, 5-0-5 Magnehelic, IP Gauge, Four SpinOn Adapters

Dual Pro Stand with Magnehelic & IP GaugesThe Scuba Tools Dual Pro Stand instrument package provides a side by side display of the Magnehelic and IP gauge in a versatile mounting base. This system is the next best thing to the A.I.R. Flow Analyzer and will test all critical regulator functions...

www.scubatools.com



[Learn Scuba Chicago]

AFAIK these are fabricated for the HP Manager. I have similar but it is SP valve. Pete (the original owner of Scuba Tools) was well known in the SP circles.

I would suggest sending a note to the current owners of ScubaTools.

I have a message in with Joan over there.



[Learn Scuba Chicago]

Just looking at the exposed brass in the NPT inlet makes me suspect they machined the NPT inlet into a standard valve. Just a guess though.
Respectfully,

James

My thought too.



[broncobowsher]

I made one many years ago. Wasn't a big deal. Remove the dip tube, drill, tap, clean up and put back together.



[rhwestfall]

Yep.... Drill & tap... Was going to have one done, but just ended up getting a while unit from Scuba Clinic Tools (Thailand).

---



[Tracy]

I have made several for test benches. You wanting yoke or DIN?
