Taking apart a Scubapro MK5 - what tools do I need?

[happy-diver]

The attachment should make it easy

How can grooves be lands, you're turning my world upside down again

Rifling - Wikipedia

en.wikipedia.org

Might have to call those guys that think screws are bolts in for another voice on the subject

And remember guys no one is entitled to their own opinion if it's rubbish stupid and wrong



[rsingler]

And remember guys no one is entitled to their own opinion if it's rubbish stupid and wrong

That's why I love you, @happy-diver !

I have been schooled again!
The o-ring indeed sits in a groove, or gland, not a land. Indeed, the land (of an engine cylinder, for example) is the outer diameter of the cylinder where the grooves for the compression rings sit. Or, as happy points out, the ridges between the grooves of a rifled barrel.

And all these years, I've been confusing glands and lands. Now I've gotta go rewrite that little pamphlet. Sigh.

O-Ring Groove (Gland) Design: A Detailed Guideline - WayKen

O-rings provide excellent sealing in static and dynamic assemblies. The O-ring groove is a complex design with many considerations. Read on more.

waykenrm.com



[lowwall]

Indeed, the land (of an engine cylinder, for example) is the outer diameter of the cylinder where the grooves for the compression rings sit. Or, as happy points out the ridges between the grooves of a rifled barrel.

The term land has specific and sometimes contradictory meanings in machining. I wouldn't use it at all unless you know it is accepted in that context.

Piston ring lands and cut* gun barrel lands both refer to areas that were the full diameter of the piece before additional cuts are made, but of course the land diameter in a rifled barrel is smaller than the groove diameter while the reverse is true of piston ring lands.

And when talking about machine tools, lands have several specific meaning depending on the context. For example, it usually refers to the relieved areas behind the cutting edges of a bit. Which is the opposite of a piston land. But it can also refer to a full diameter section of certain types of cutters that supports the cutting edge.

* I had to refer to cut gun barrels because there is later process called hammer forging where the rifling is impressed on the bore by pounding it over a mandrel. In this case, there's no actual cutting of the grooves, but the different diameters keep their traditional names.



[happy-diver]

So on the impression imprinted on the expended projectile
have the grooves made lands and the lands made grooves?



[lowwall]

So on the impression imprinted on the expended projectile
have the grooves made lands and the lands made grooves?

Forensic examiners prosaically label the marks made on the bullet by the barrel rifling as "rifling marks".



[rsingler]

Attached please find a revision of the DH Pick pamphlet, corrected so that a land is a land and a gland is a groove. Or something like that...
Made a few revisions for clarity and changed a couple of pics. Hope this one's a little better.



[Umuntu]

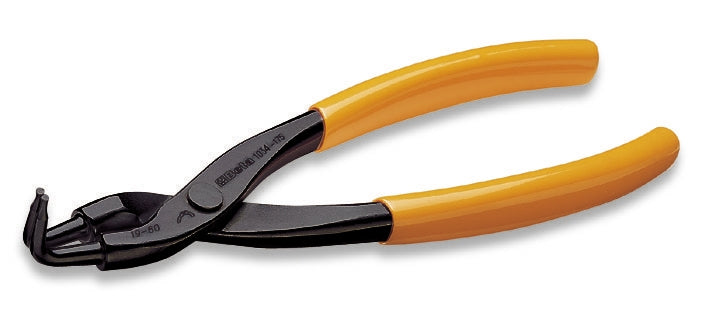

for removong the HP seats, i used a plier designed for opening seeger rings.

or one of these Park Tool SPA-2 Red Freewheel Ring Pin Spanner [SPA-2]

Angelo's right angle pin pliers, or a small pin face spanner from Scubatools.com.

For removing the HP seat plug I also use a watch repair tool, but a simpler and less expensive one. Like this one:

Pardon our interruption...



[rhwestfall]

For removing the HP seat plug I also use a watch repair tool, but a simpler and less expensive one. Like this one:

Oh wow, I never thought of watch repair tools!



[Nemrod]

H

And remember guys no one is entitled to their own opinion if it's rubbish stupid and wrong

Could you please start a thread and catalog all of your excellent sayings. There are just so many I am beginning to lose track and confuse myself. Every time I start to say something I realize you have already said it and even better and more snarky than could I. I cannot keep up.



[happy-diver]

I simply make non judgemental statements, in the hope of moving the blood from one head to the other
in order to raise energy promoting a more rational thinking in regards to the simple things in life we love

I have actually thought of a what's going on in happys shed today thread but I'm a bit gutless sometimes
