Sportsways Sea-Vue Gauge

[Art Challacombe]

I recently purchased a 60’s USD Calypso regulator with a Sportsways Sea-Vue spg. I successfully rebuilt the regulator, but the spg is not functioning due to a missing over pressure blow out plug. While I seriously doubt I’d ever use this gauge in the water, I’d like to get it functional again as a showcase item and for surface use. I took it apart and it looks almost new inside. I’m guessing it was working well when the previous owner put it a high pressure tank the spg was not designed to handle and blew out the plug.

My question is, are blow out plugs commercially available? If not, can I fabricate something that will function like a plug. I’m thinking about a piece cut from a properly sized o-ring glued in with marine epoxy. Any other ideas?



[happy-diver]

Does the gauge work or not, punch out a rubber plug bigger than the hole and poke it in
The plug blows if the mechanism is leaking or someone poked it out what are you saying



[Scuba Lawyer]

I recently purchased a 60’s USD Calypso regulator with a Sportsways Sea-Vue spg. I successfully rebuilt the regulator, but the spg is not functioning due to a missing over pressure blow out plug. While I seriously doubt I’d ever use this gauge in the water, I’d like to get it functional again as a showcase item and for surface use. I took it apart and it looks almost new inside. I’m guessing it was working well when the previous owner put it a high pressure tank the spg was not designed to handle and blew out the plug.

My question is, are blow out plugs commercially available? If not, can I fabricate something that will function like a plug. I’m thinking about a piece cut from a properly sized o-ring glued in with marine epoxy. Any other ideas?

I have, and regularly dive with, several Sea-Vu Gauges. As I recall they all use a -030 o-ring in the front and a -011 in the back. The plug can be made out of most anything. It just serves to keep water out of the housing and acts as a pressure outlet should your internals decide to let go. I've used cut o-rings and shaved-down second stage LP seats to plug that hole with a drop of super glue. YMMV. My 2 psi. Good luck!



[Art Challacombe]

I have, and regularly dive with, several Sea-Vu Gauges. As I recall they all use a -030 o-ring in the front and a -011 in the back. The plug can be made out of most anything. It just serves to keep water out of the housing and acts as a pressure outlet should your internals decide to let go. I've used cut o-rings and shaved-down second stage LP seats to plug that hole with a drop of super glue. YMMV. My 2 psi. Good luck!

View attachment 684053
View attachment 684054
View attachment 684055
View attachment 684056

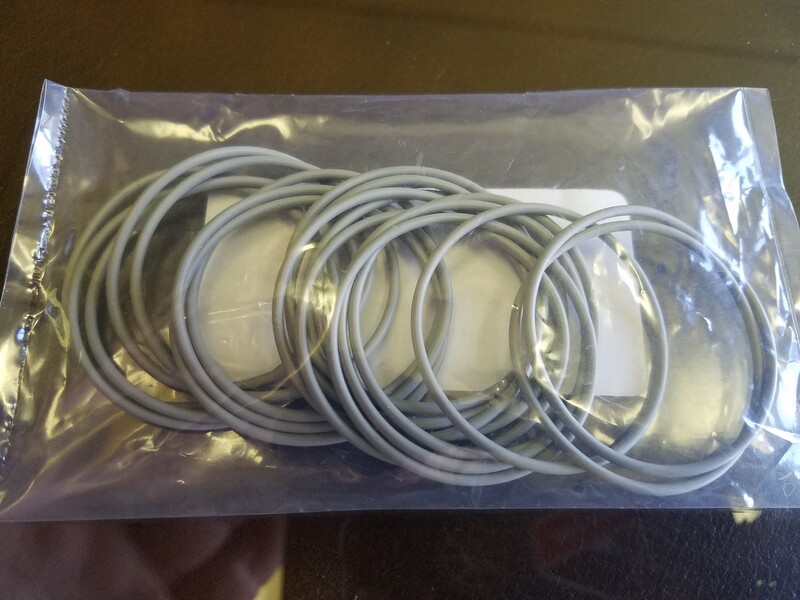

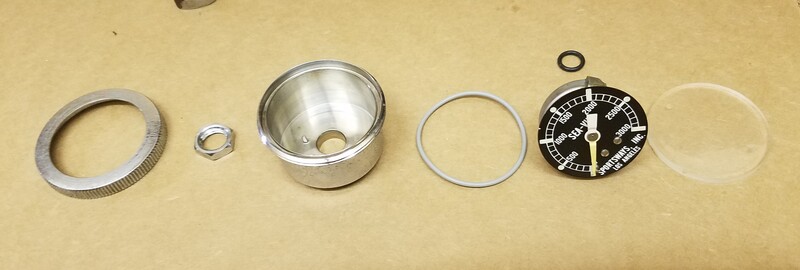

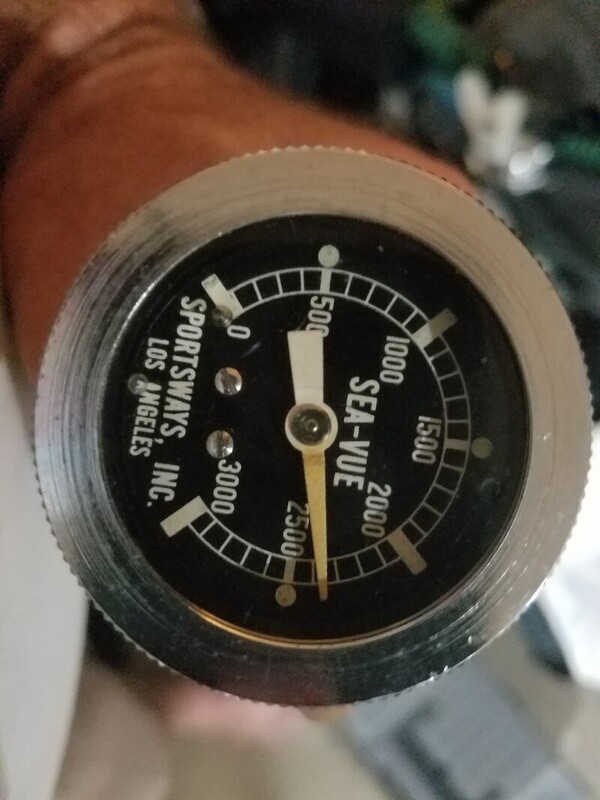

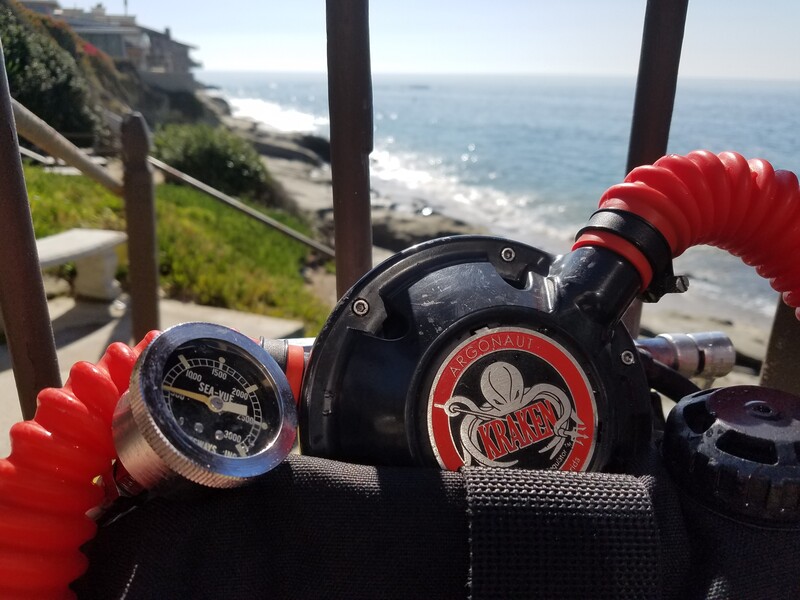

Thanks Scuba Lawyer, you’ve been extremely helpful. In fact, you have inspired me to snatch up some more of these gauges to restore and use on my vintage gear. I found some really cheap gauges on eBay and proceeded to take them apart, clean them up, install new o-rings and recalibrate them.
