PLBs Can Save Your Life

[Dan]

Putting the PLB in a double zip lock bag before you put it in the underwater case will protect it from getting wet, although it will not help against pressure.

This is what happened to @Luxe mile diver. So definitely no soft case for my PLB1.

Canadian diver and buddy rescued near Apo Island, Philippines

In a mist/fog that'll just as likely blind only yourself and not penetrate all that far. For the kind of rain storm in the video posted by @Kevrumbo above, they should be still penetrable enough & the Dive Alert is still loud enough to attract the boat crew attention, I think.

scubaboard.com

Canadian diver and buddy rescued near Apo Island, Philippines

In a mist/fog that'll just as likely blind only yourself and not penetrate all that far. For the kind of rain storm in the video posted by @Kevrumbo above, they should be still penetrable enough & the Dive Alert is still loud enough to attract the boat crew attention, I think.

scubaboard.com

In US water, if you turn on a PLB for a non emergency situation, you may be fined to as much as $2000.



[Dan]

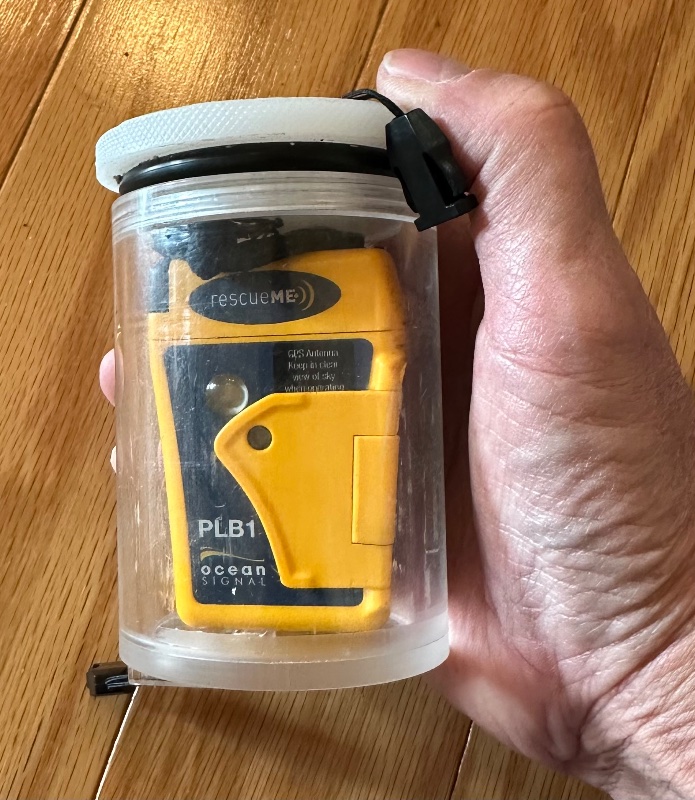

New waterproof case for My PLB1:

To insure that I won’t fumble it into the abyss when I open the case and pull the PLB1 out of the case, I tether the PLB1 to the case’s lid’s inside surface.

And tether both the NexGen Nautilus PAB & PLB1 case to the BCD pocket D-ring.



[Johnoly]

New waterproof case for My PLB1:

Let us know how you like it after a couple of dives on it.



[Umuntu]

New waterproof case for My PLB1:

View attachment 871908

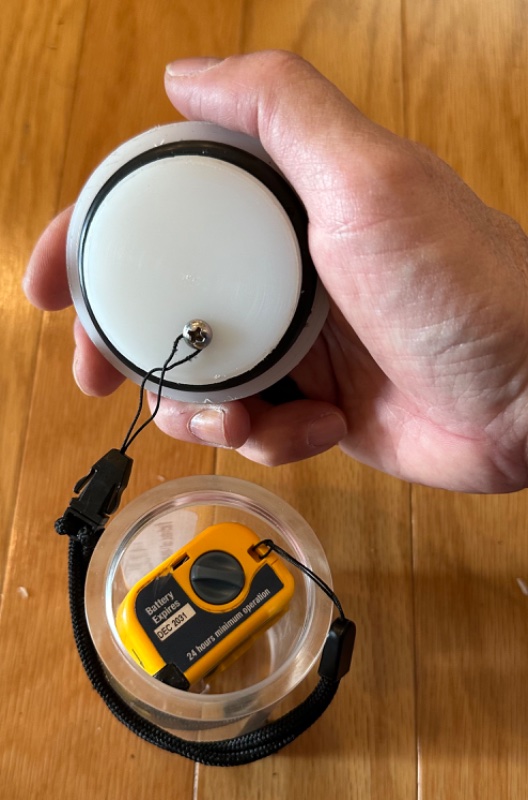

To insure that I won’t fumble it to the abyss when I open the case and pull the PLB1 out of the case, I tether the PLB1 to the case’s lid’s inside surface.

View attachment 871909

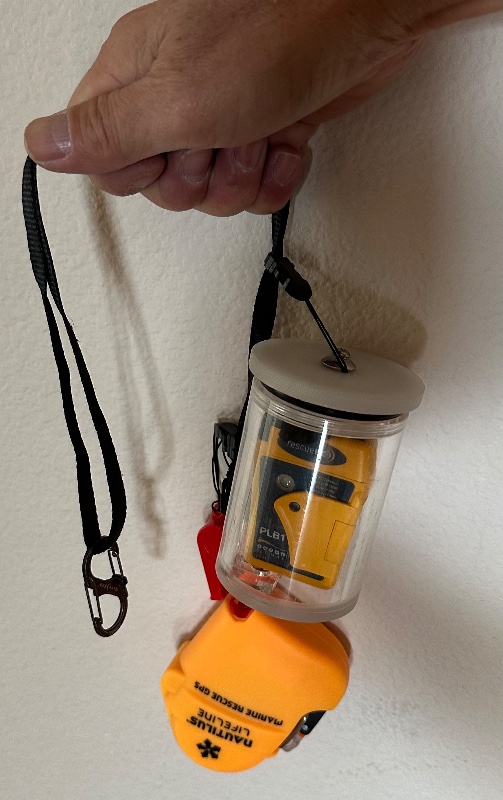

And tether both the NexGen Nautilus PAB & PLB1 case to the BCD pocket D-ring.

View attachment 871910

What is it made from (if DIY) ?
Or which brand ?

How will you attach it to your BC or stow it whilst diving ?



[Dan]

What is it made from (if DIY) ?
Or which brand ?

How will you attach it to your BC or stow it whilst diving ?

I sketched it & had it made by plastic machine shop. It’s made out of Acrylic with polyethylene lid to avoid galling (locking up) the threads. Its see through case makes it easy to check for leaks without opening the lid.

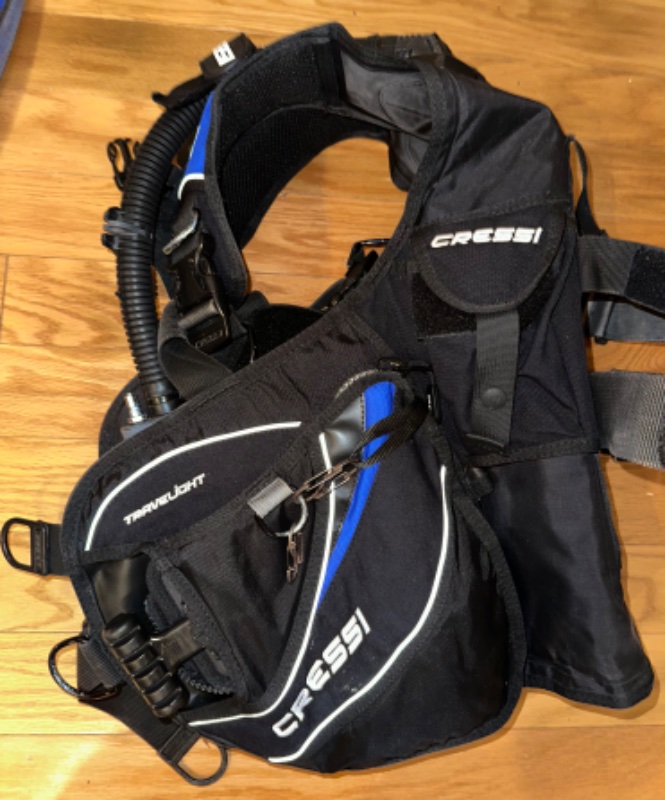

They fit nicely in my BCD left pocket, below the integrated weight pouch. The free end of the leash is clipped on the waist D ring (see the picture, below for detail).

To get it out of the BCD pocket, I just unzip the pocket and fish out the devices by pulling the leash out of the pocket.



[Umuntu]

I sketched it & had it made by plastic machine shop. It’s made out of Acrylic with polyethylene lid to avoid galling (locking up) the threads. Its see through case makes it easy to check for leaks without opening the lid.

They fit nicely in my BCD left pocket, below the integrated weight pouch. The free end of the leash is clipped on the waist D ring (see the picture, below for detail).

To get it out of the BCD pocket, I just unzip the pocket and fish out the devices by pulling the leash out of the pocket.

View attachment 871923

Very nice custom case !

Was expensive to have made ?

Also, have you had it pressure pot tested ?



[Dan]

Let us know how you like it after a couple of dives on it.

It works for about 1000 dives & to as deep as 140’ (43m). I just made the case shorter to reduce buoyancy (hence less dive weight).



[Dan]

Very nice custom case !

Was expensive to have made ?

Also, have you had it pressure pot tested ?

Thanks!

It costed $25 for materials & $100 labor.

I have pressure tested the old longer body case to 140’ (43m) depth without any leak. I’ll test the shorter version next month in Alor & Komodo.



[Dan]

The PLB1 in its waterproof case is barely float. So I won’t need much additional dive weight to compensate it to get neutrally buoyant while diving.



[Johnoly]

I have pressure tested the old longer body case to 140’ (43m) depth ....... I’ll test the shorter version next month ......

Alot of photog friends clip/ziptie a weight to their "empty" camera housing and attach it to their dive reel. It gets dropped over the side of the LOB/boat to depth for a quick 2 mins and then reeled back up to check for droplettes. Load the camera/PLB, clean Orings and its all set. Last year on Goliath trip the vacationer's dropped together 2 full size housings and 4 GoPro housings all empty. 1 GoPro leaked and they fixed it for the actual dive.
