Perdix AI OC Tec Safety Stop

[AdN]

Hi all,

I have just smashed my analogue compass and decided rather than replacing it I would use the Perdix compass (its fantastic wish I had ditched the analogue earlier).

The only issue I have in OC Rec mode you have to switch screens to view the compass and it takes away your AI data, in octec mode you can use a mini compass but then there is no safety stop timer any more, I'm guessing in octec is only give you Deco timers.

Can any confirm this is the case because I dont think there's an option to add mini compass to ocrec or add safety stop timer to octec. Both are things I want and it doesn't seem like there is mode that has both.



[hedonist222]

Are you on the latest firmware?
I ask because I recall having more flexibility with main-screen displays.

I have my compass on mini-mode on main screen.



[AdN]

Yes I'm on v87, and I've got the mini compass on that screen but in oc tec mode doesn't seem to use a safety stop timer



[hedonist222]

Yes I'm on v87, and I've got the mini compass on that screen but in oc tec mode doesn't seem to use a safety stop timer

theres no safety stop timer in TEC mode

I still do one - it counts up when in safety-stop depths



[AdN]

i did not notice any count up timers, the "stop" and "time" stayed blank entire 1hr dive at 14m.

Edit: I had my last stop set to 3m not 6m that may have been why.



[jborg]

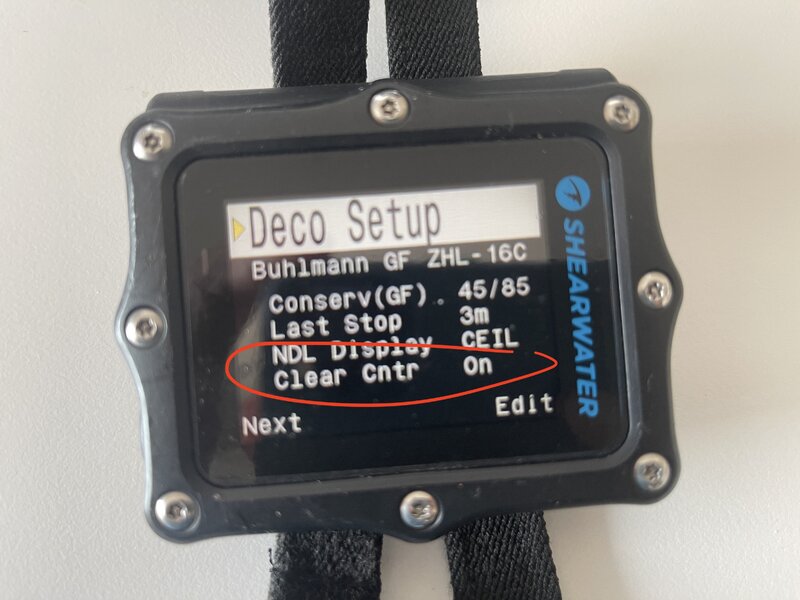

You need to set "Clear counter" to "On" under deco setup. Then you get a timer after clearing deco or, in the NDL case, when reaching safety stop depth.



[AdN]

You need to set "Clear counter" to "On" under deco setup. Then you get a timer after clearing deco or, in the NDL case, when reaching safety stop depth.

View attachment 738530

Perfect! Thanks.



[AdN]

Wish shearwater would make the word Air or nx32 customisable in nitrox mode so it can be a compass, or have the compass overlay like it does on the teric.



[Wibble]

There's a "mini compass" that can be displayed on the centre row in tec mode.
