Akimbo, did you modify the lower backplate slots? From your photos, its looks like you are using a pvc roller with a d-ring?...
The rollers work very well, especially on the Freedom Plate. I also have a conventional doubles plate and widened and rounded the slots to make the webbing slide much easier. Sometimes you also have to put a spacer or some washers on the lower stud so the webbing isn’t pinched by the wing and cylinders. That really doesn’t push the doubles any farther away, at least on me, since the cylinders hit my butt and there is a gap at the base of my spine anyway.
The AGIR Harpa Loop is another option. I read that Netdoc was going to try a set out.
Accessories - BC-System
You can do about the same thing with a 2" Footman’s loop and some screws:
Stainless Steel Footman Loop

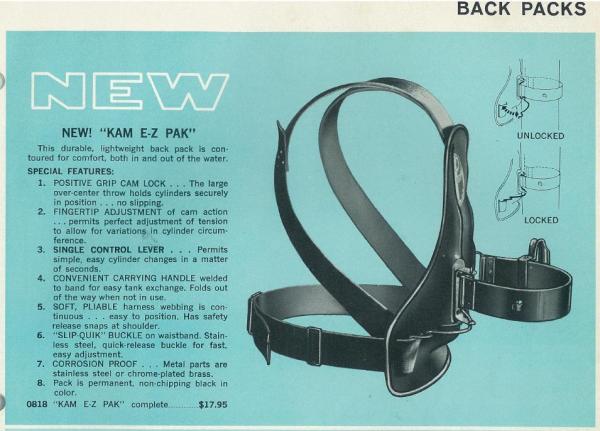

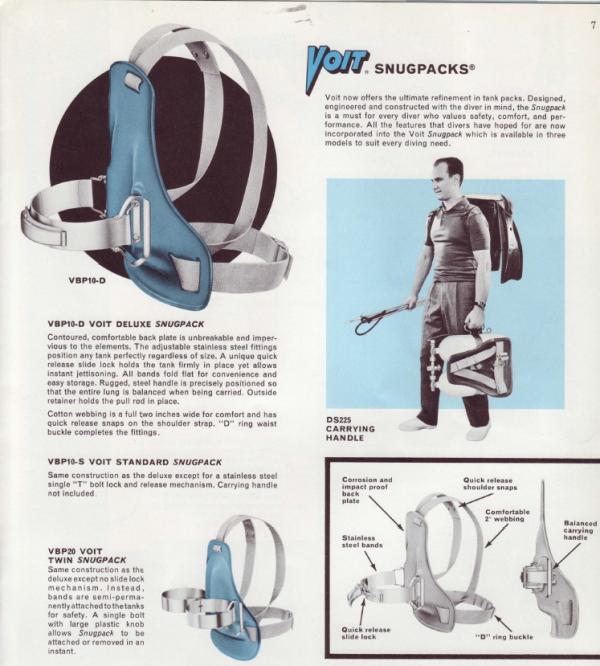

Ideally, there is enough resistance to the webbing that it doesn’t just slide if you let go of the belly bands. You want to pull it a bit and relieve some of the weight by shifting around. That is how the old blow-molded and injection molded backpacks worked. That’s not an issue in the water, just standing on deck.
