Freedom Plate Divers Roll Call: show us your rig!

[azstinger11]

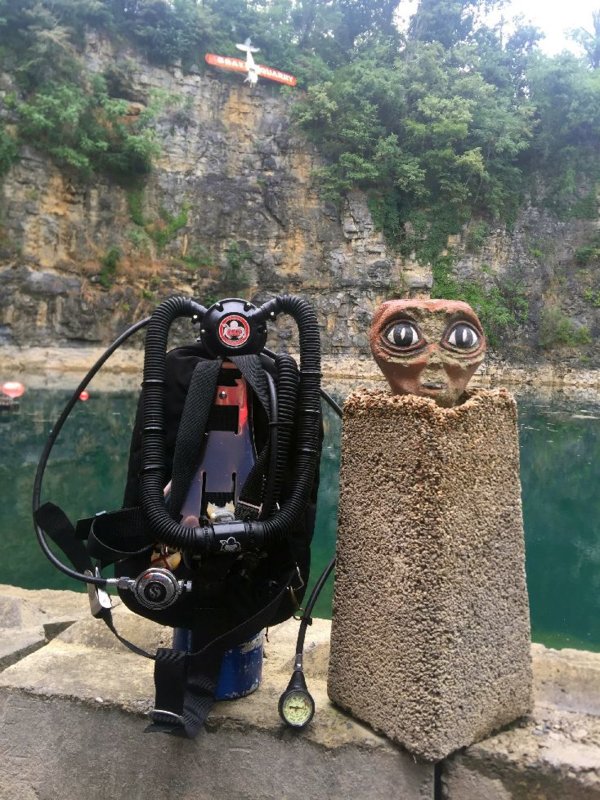

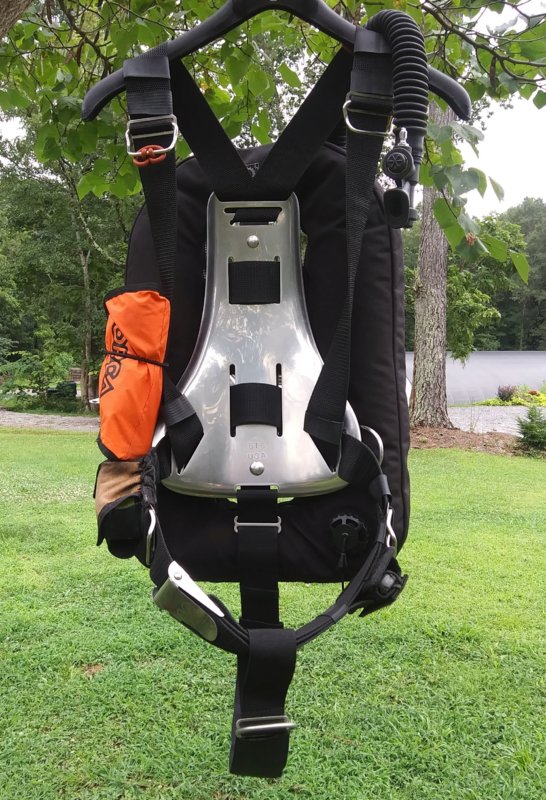

Freedom Plate 515 present. Thanks Eric, your plate is a pleasure to dive!
View attachment 603300
View attachment 603296

very nice kraken!!! It’s on my dream sheet!



[herr2720]

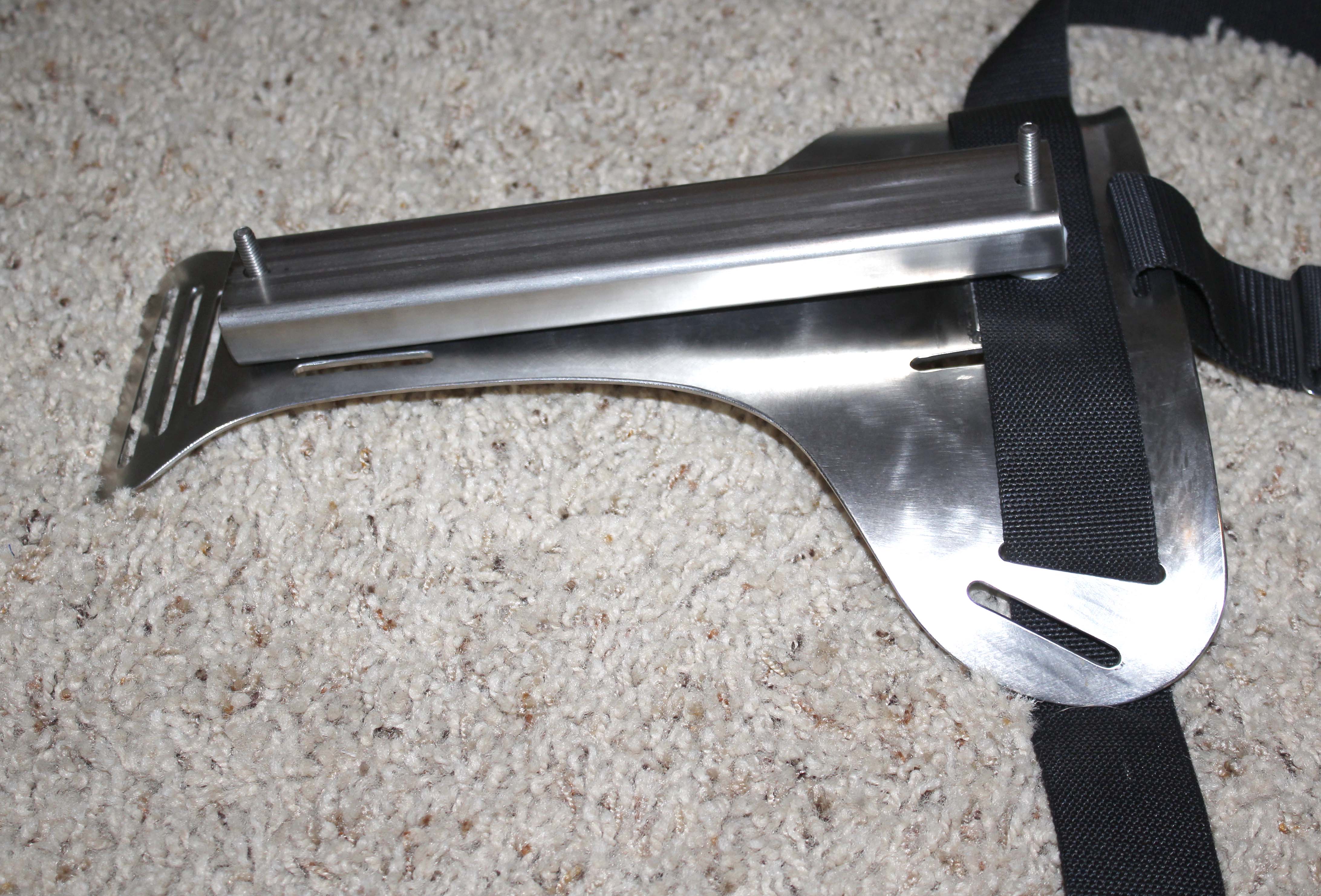

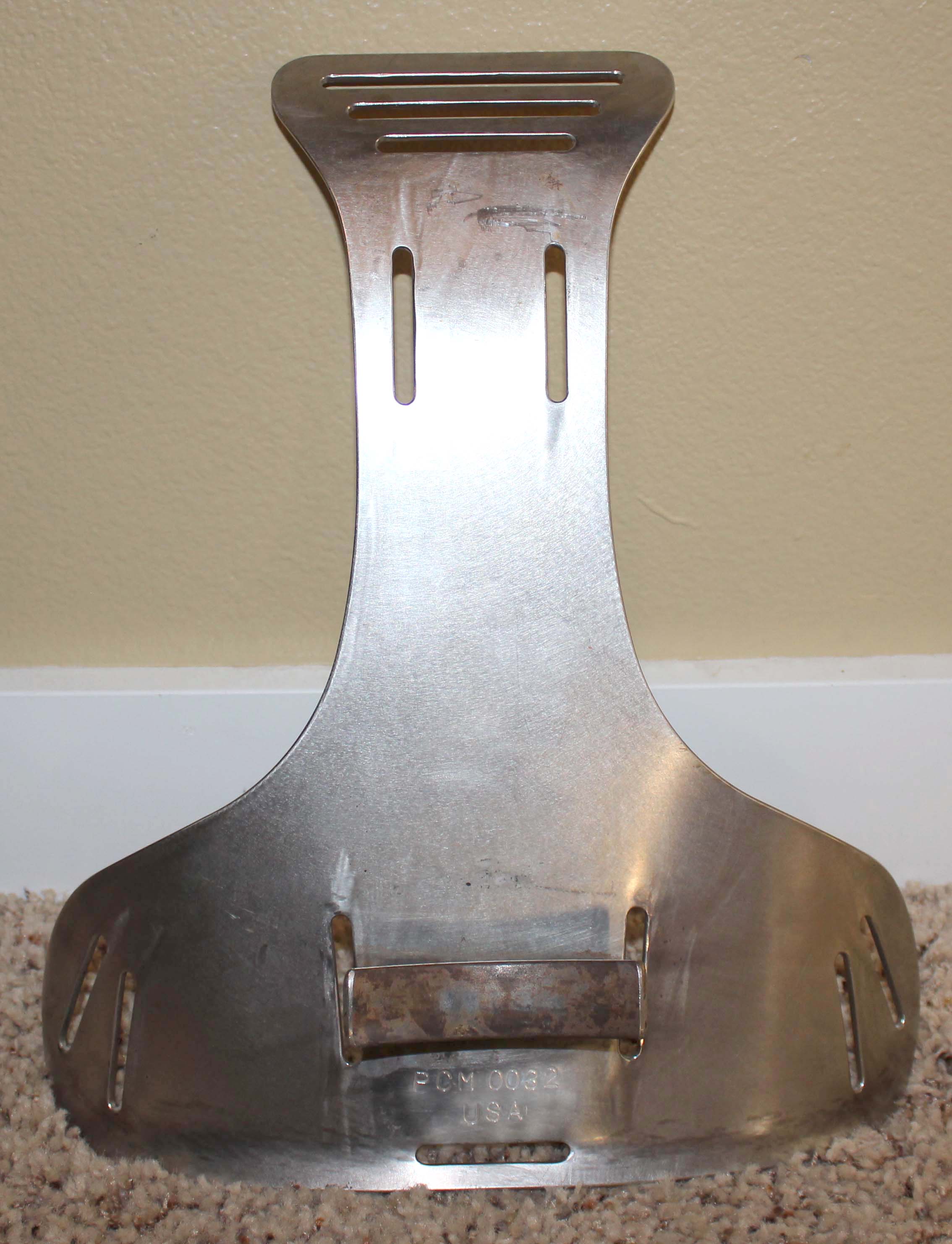

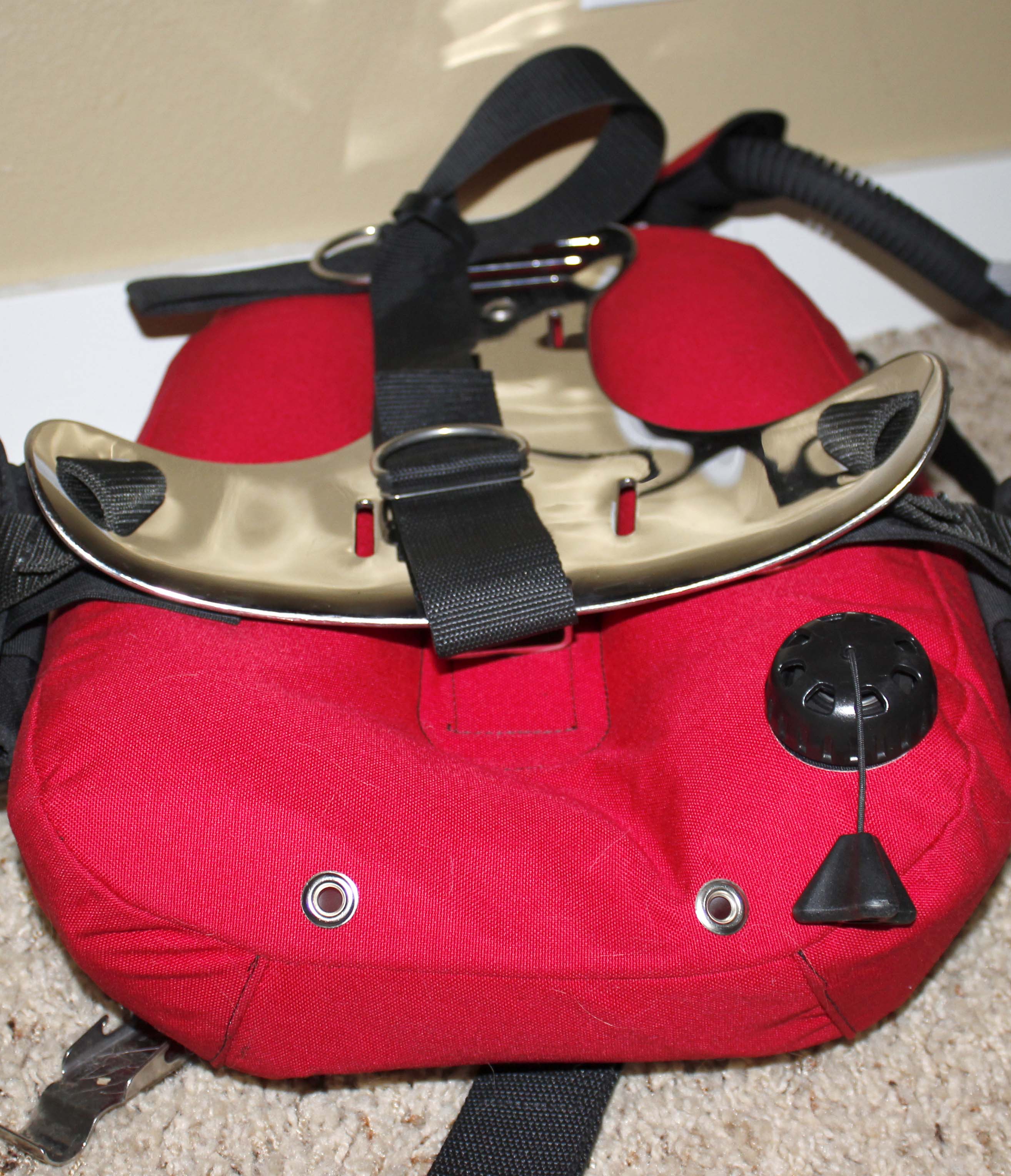

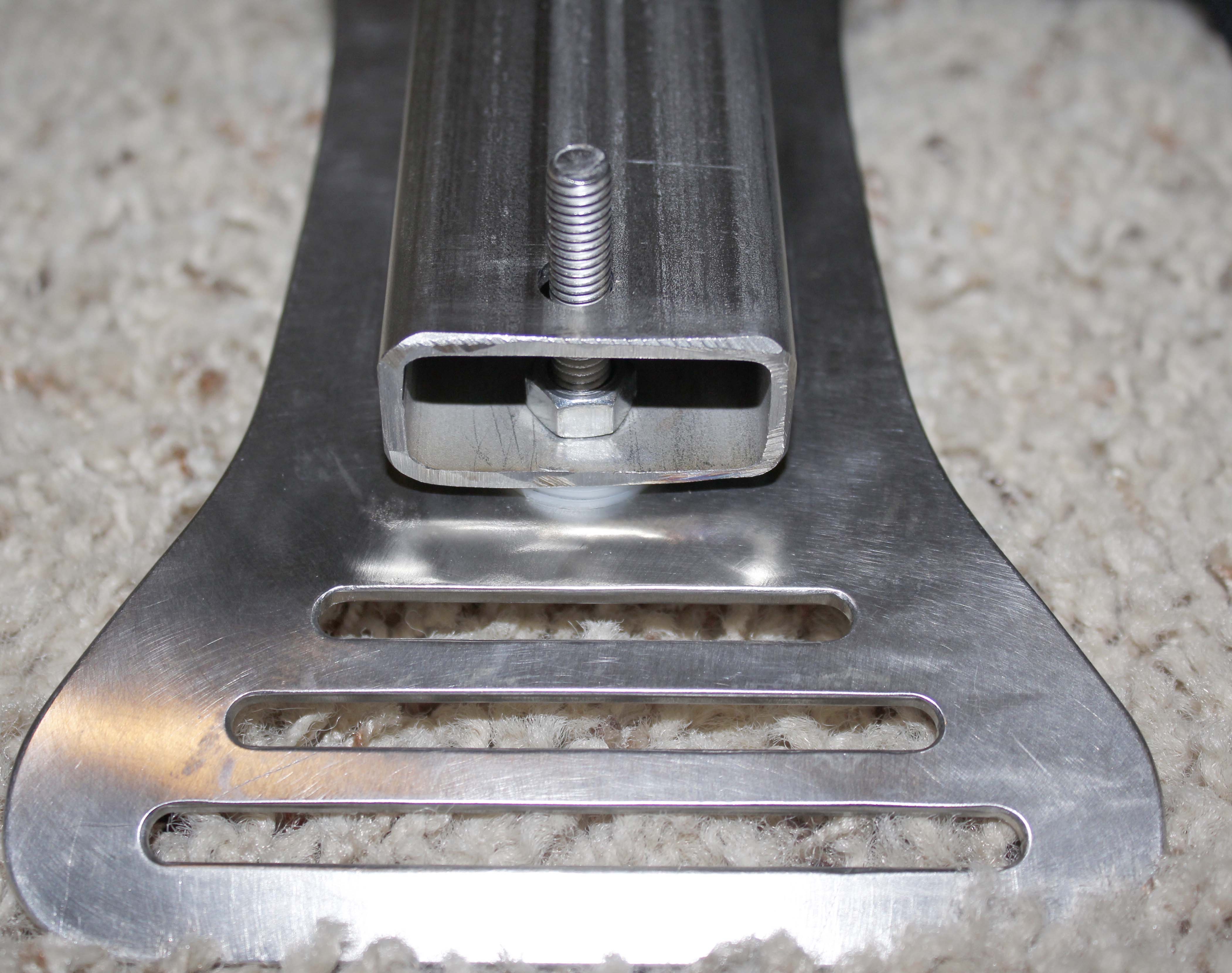

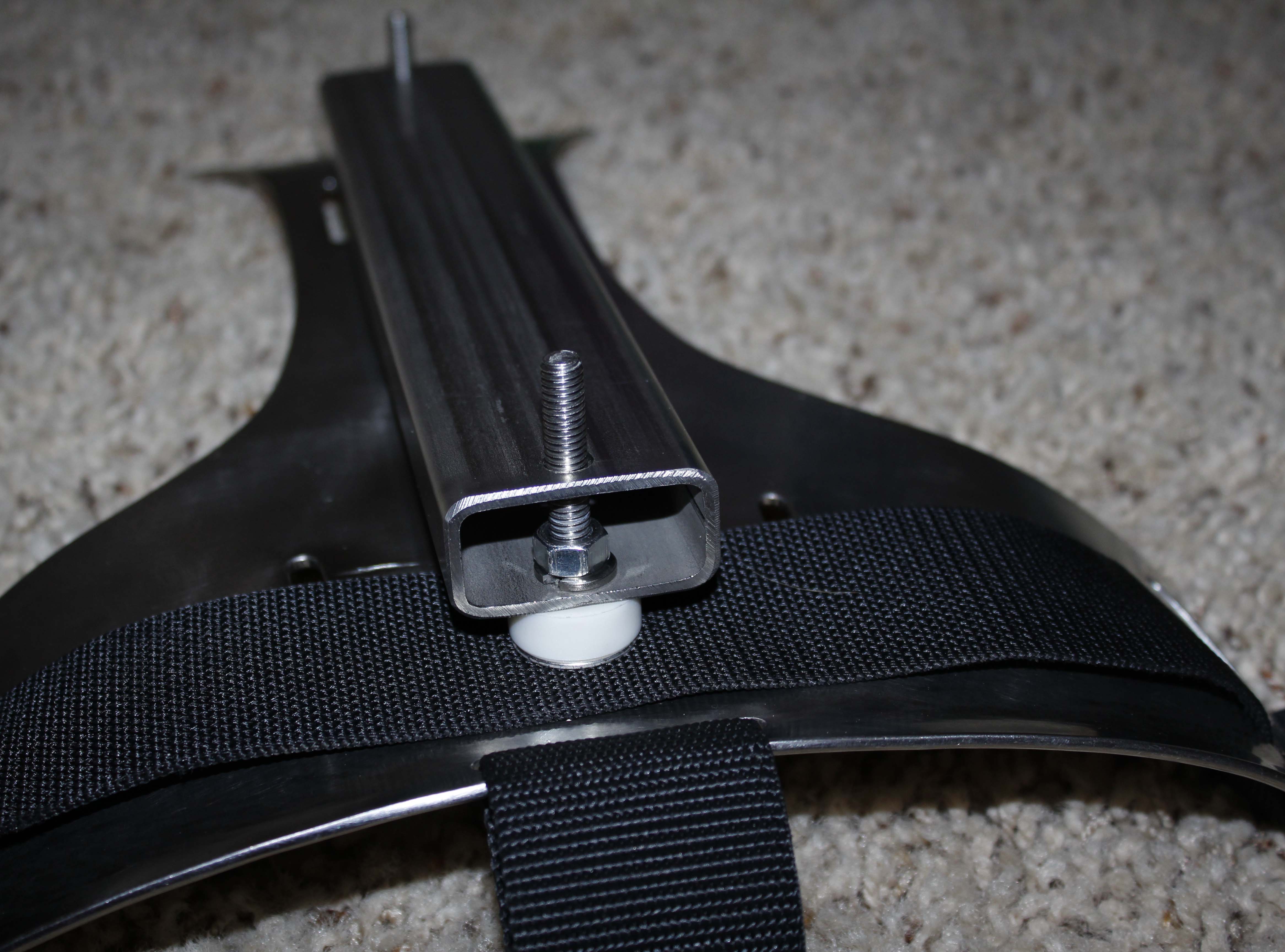

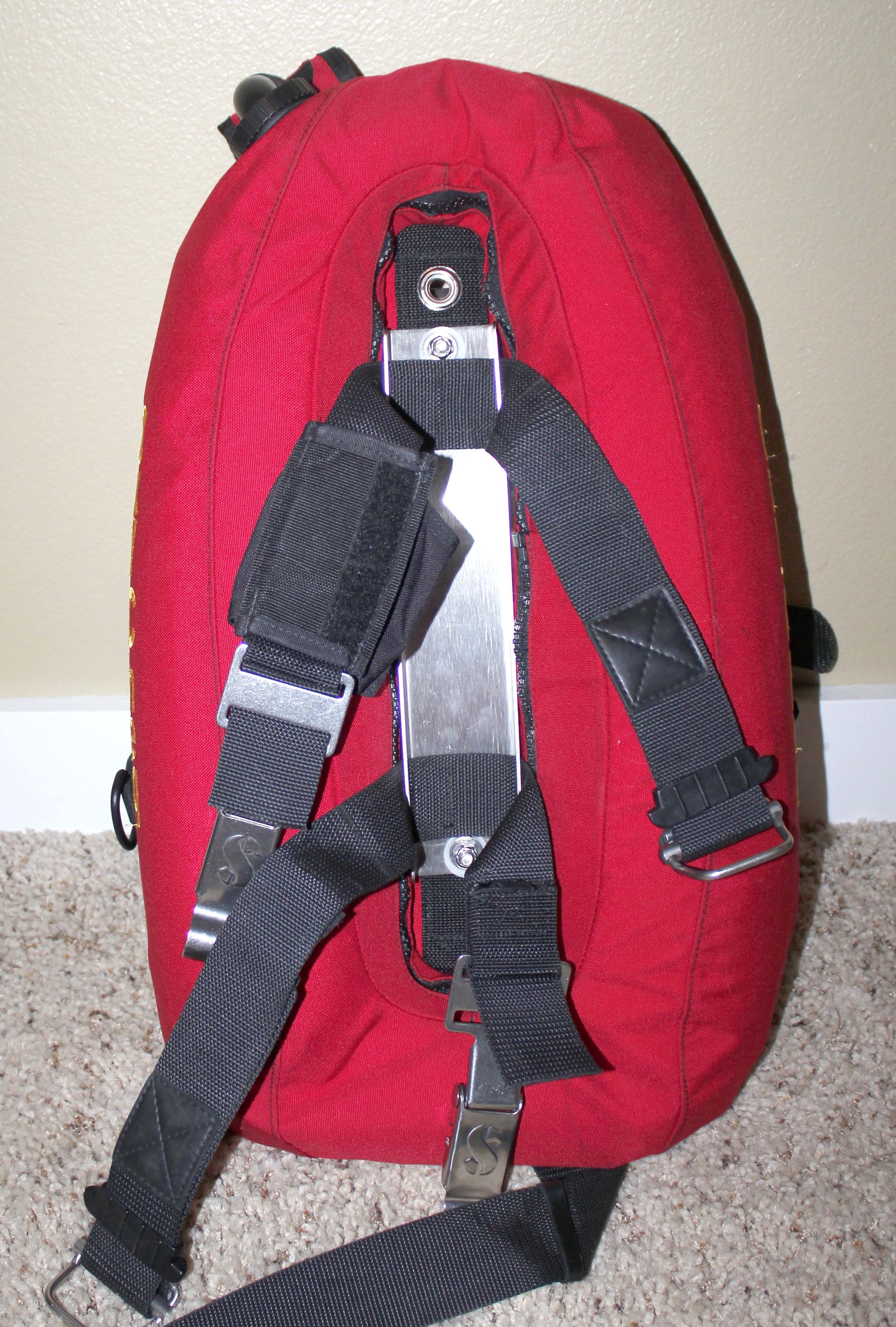

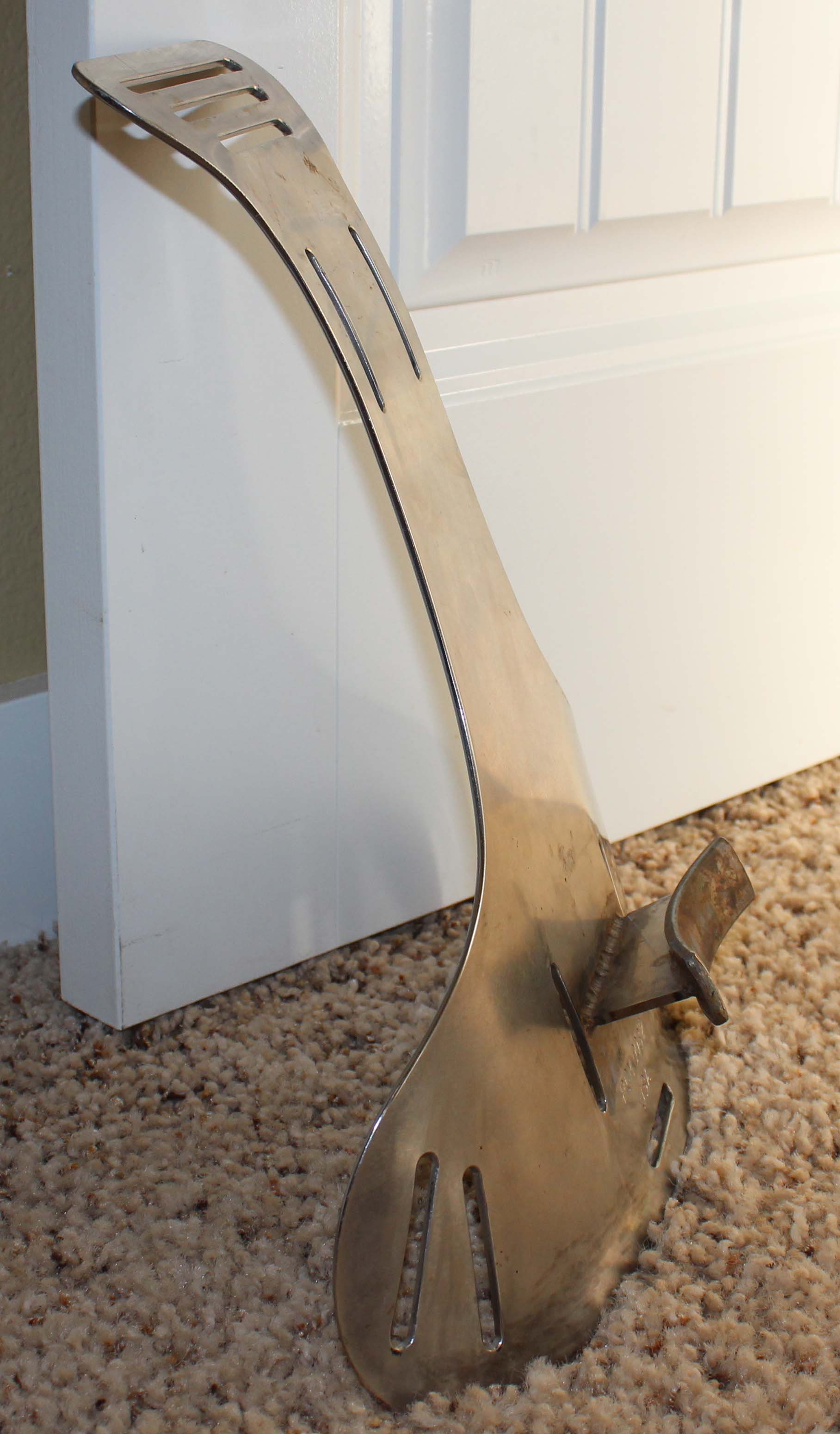

I have one of the early models, cut the original lift wedge off and added 2 bolt holes to attach a piece of SS Tube that I filled with some lead for weight and then sandwiched the wing on with an STA. Used nylon spacers to give it a little wedge at the base

_MG_8616

• herr2720
• Aug 8, 2020

_MG_8615

• herr2720
• Aug 8, 2020

_MG_8612

• herr2720
• Aug 8, 2020

_MG_8610

• herr2720
• Aug 8, 2020

_MG_8611

• herr2720
• Aug 8, 2020

IMG_8225

• herr2720
• Aug 8, 2020

IMG_8226

• herr2720
• Aug 8, 2020



[Eric Sedletzky]

I have one of the early models, cut the original lift wedge off and added 2 bolt holes to attach a piece of SS Tube that I filled with some lead for weight and then sandwiched the wing on with an STA. Used nylon spacers to give it a little wedge at the base

_MG_8616

• herr2720
• Aug 8, 2020

_MG_8615

• herr2720
• Aug 8, 2020

_MG_8612

• herr2720
• Aug 8, 2020

_MG_8610

• herr2720
• Aug 8, 2020

_MG_8611

• herr2720
• Aug 8, 2020

IMG_8225

• herr2720
• Aug 8, 2020

IMG_8226

• herr2720
• Aug 8, 2020

Wow! That’s a really old one. It’s one of the very first run “original” models with the little welded on bottom bracket.



[stuartv]

If you’re wanting to use the plate with no wedge then you really need a wing with separate top an bottom roll control bars so the plate doesn’t high center on the tank.
Also, if you are using the wedge, you don’t necessarily need to use the short little 1/4” carriage bolt through the top hole since the wing will already be secured by the wedge. Most wings will self center once the top cam band is set. The other thing that could be done is to lay a flap of webbing over the stubby end of the nut to protect the tank, or rubber?
I’m working on trying to figure out a rubber pull through top hole securing system, but the problem I’m facing is that some of those wings are always pulling themselves tight and the holes have trouble remembering they’re supposed to be 11” center. Without secure threaded bolts on each end I’m afraid the center panel will shrink back and just pull the rubber bushing out.
I also thought of a bolt on roll control pad for the top for the wings that don’t have one but then that’s just more crap to come up with, more complicated, and more money needing to be spent, so my advice is to just get the wing that works. I’ve spent a lot of time trying to get as many wings to work as I can.
The rail became more problematic than it was worth. Most of the issues were with fitting down in between roll cushions or center mounted roll cushions or the perfect length of the top bolt and then people using it like a STA with running the cam bands under the rail bars and not being conscious of the 5/16” bolts and the critical awareness of their integrity. So the rail is no more except in very special cases. Just get the right wing or make the wedge work.

I realize a lot of people will probably dismiss these because they are plastic. But, these really do work well to hold a wing on the plate. It's not like they are doing anything once you tighten your cam bands around a tank.

DGX Assembly Screws, Plastic, Set of TWO | Dive Gear Express®

Also, for a roll control pad, have you looked at these?

OMS Soft Stabilizing Adapter | Dive Gear Express®

Maybe an option to recommend to people who need it?



[Eric Sedletzky]

I realize a lot of people will probably dismiss these because they are plastic. But, these really do work well to hold a wing on the plate. It's not like they are doing anything once you tighten your cam bands around a tank.

DGX Assembly Screws, Plastic, Set of TWO | Dive Gear Express®

Also, for a roll control pad, have you looked at these?

OMS Soft Stabilizing Adapter | Dive Gear Express®

Maybe an option to recommend to people who need it?

Perfect!
This is why I count on you guys, another set of eyes and ears.



[azstinger11]

So my VDH 35 lb wing just got in, I’m assuming everyone using it also using the rail since the wing doesn’t have cam band strap cutouts?



[lexvil]

So my VDH 35 lb wing just got in, I’m assuming everyone using it also using the rail since the wing doesn’t have cam band strap cutouts?

Look again



[azstinger11]

Look again

No cam band cutouts. I take it was supposed to have them?



[lexvil]

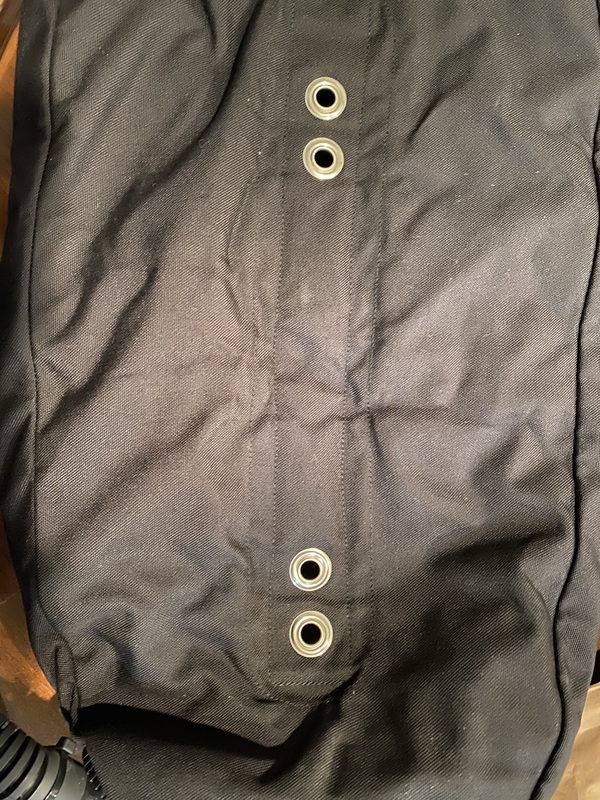

View attachment 603706

No cam band cutouts. I take it there was supposed to have them?

My VDH 35 has them, I can’t imagine Bryan changing the design so, yes it should have them as far as I know



[lexvil]

View attachment 603706

No cam band cutouts. I take it was supposed to have them?

Can you post a pic of the other side?
