Bought my Blacktip Tech in 2023 and after the 15th dive it flooded, undetermined why though I'll be replacing all the seals and testing before using it again. Bit frustrated to have it flood so quickly though is what it is.

The board was toast so I purchased a new Flipsky board, not from Divextras, that looks exactly like the old and attempted to flash George .4 on it. I don't think the firmware updated and I'm guessing there's a few steps missing here, especially since when I type $$ I get back command not found. Anyone know what the next steps are here to get the programming/firmware on it properly please? The serial on the circuit board mount plate line up with using George .4.

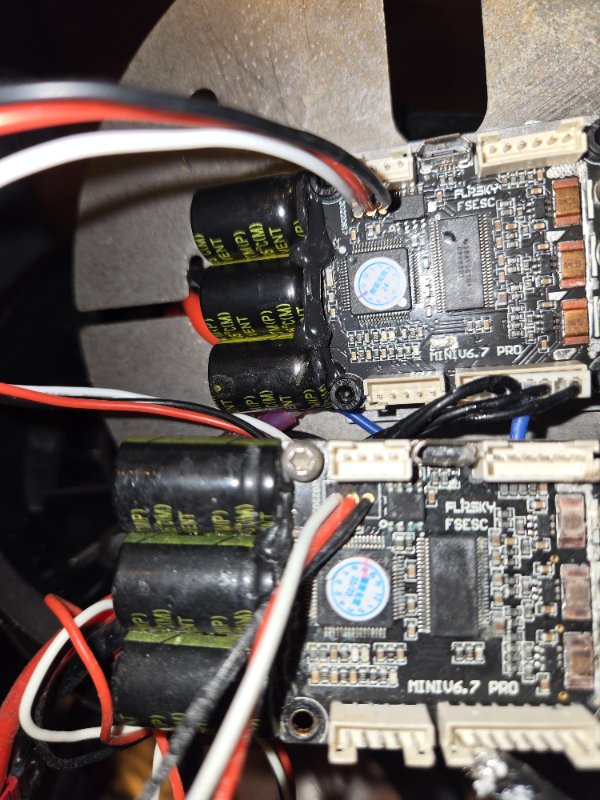

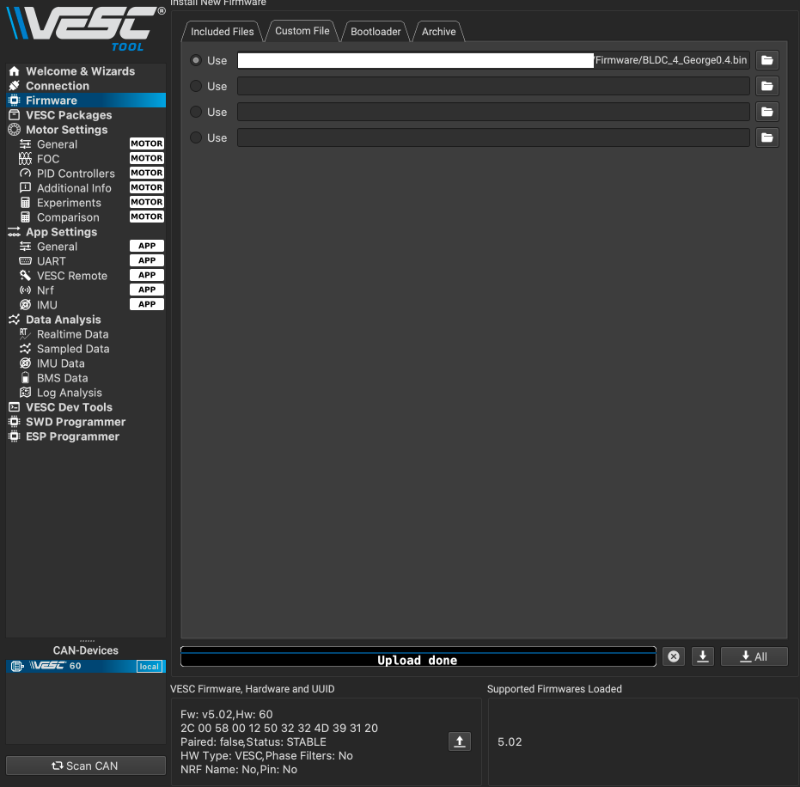

Pictures attached which show the current firmware and the board before/after. I'm comfortable with programming and loading firmware I just need some direction on what to do next.

Thank you for your help.


Attachments

  • Comparison.jpg
    116.5 KB · Views: 9
  • firmware.png
    109.8 KB · Views: 7
