Question BCD inflator hose o-ring replacement

[W Darrell]

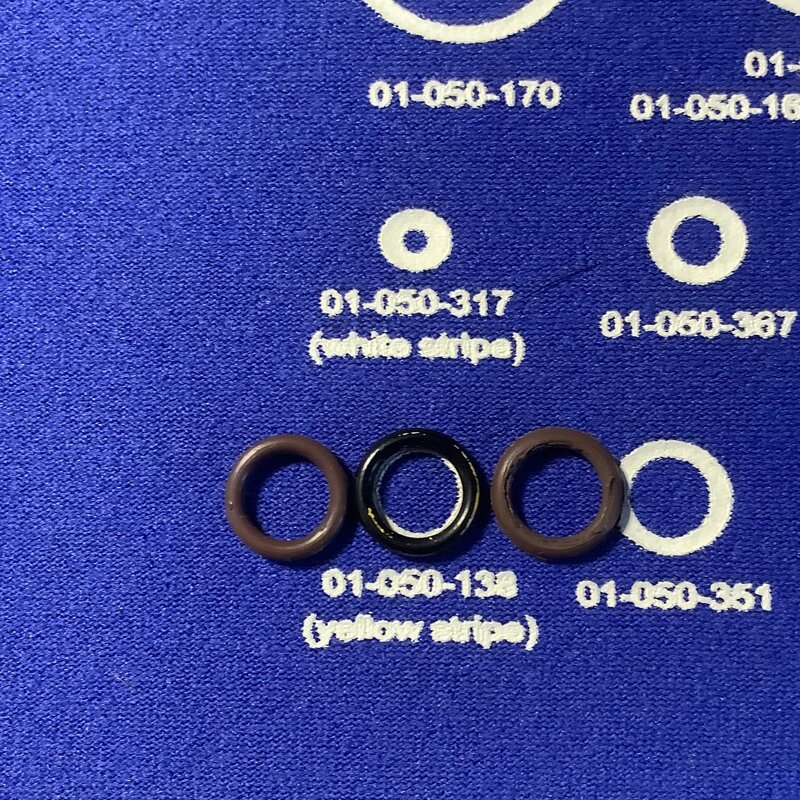

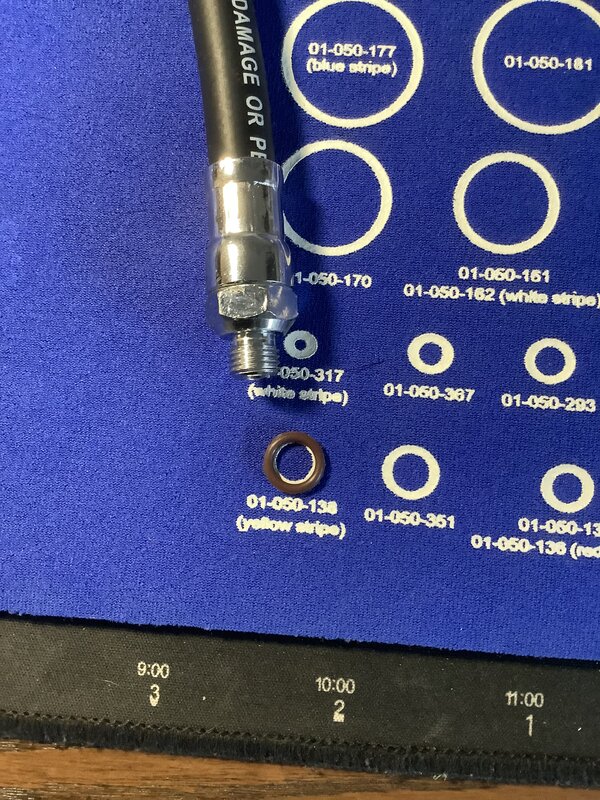

I have a standard bcd inflator hose that came with a Zeagle Lazer bcd several years ago. I would like to know the size or description of the o- ring which is up inside of the quick disconnect coupling. I'm told the o-ring on the end that screws into the regulator first stage is a 011. The one inside the quick disconnect on the power inflator end is different. I am attaching a pic for clarity.
Thanks for any help.



[tursiops]

It is an 010, and is hard to replace. A special tool helps.

Universal QDC LP Hose O'ring Tool, This tool will assist the technician in replacing the o'ring in the universal female QDC

Universal QDC LP Hose O'ring Tool, This tool will assist the technician in replacing the o'ring in the universal female QDC

www.scubatools.com

I've also seen #D-prins of that kind of tool.

Universal LP Hose Inflator clutch O-Ring Tool by bmakowe

This tool assits in replacing the o’ring in the female clutch of the Inflator.

www.thingiverse.com



[W Darrell]

It is an 010, and is hard to replace. A special tool helps.

Universal QDC LP Hose O'ring Tool, This tool will assist the technician in replacing the o'ring in the universal female QDC

Universal QDC LP Hose O'ring Tool, This tool will assist the technician in replacing the o'ring in the universal female QDC

www.scubatools.com

I've also seen #D-prins of that kind of tool.

Universal LP Hose Inflator clutch O-Ring Tool by bmakowe

This tool assits in replacing the o’ring in the female clutch of the Inflator.

www.thingiverse.com

Thanks, I watched a video from Scuba Gaskets.com which sells the special tool. The man in video says the o-ring on first stage end is a 011. He says the one up inside the quick disconnect coupling is a 610 o-ring? Very confusing.
Thanks for info.



[happy-diver]

These work

Google-Ergebnis für https://mektronics.com.au/cdn/shop/products/51763_MPH-SETB_2_700x700.jpg?v=1633600055

as can these for solutions for the quick



[tursiops]

Thanks, I watched a video from Scuba Gaskets.com which sells the special tool. The man in video says the o-ring on first stage end is a 011. He says the one up inside the quick disconnect coupling is a 610 o-ring? Very confusing.
Thanks for info.

The 610 is the same CS as a 010, but slightly larger ID. Both fit, as far as i know.
An 803 should fit too; it is in-between in ID, same CS.



[W Darrell]

The 610 is the same CS as a 010, but slightly larger ID. Both fit, as far as i know.
An 803 should fit too; it is in-between in ID, same CS.

Thanks for responding. Your Information is very helpful.
