Aqualung Titan First Stage question

[BigRed96]

Hello All, I am in need of service kits for my Aqualung Titan first stages. I found 2 different ones on eBay. I see one say Titan ‘10. Aqua Lung Mikron / Legend 1st Stage Regulator Service Kit #900014 | eBay What does the the ‘10 stand for exactly?
Here is the other one.
https://m.ebay.com/itm/Aqua-Lung-1s...638780?hash=item3abb30c53c:g:EboAAOSw-jhUKWjQ
Can someone help me determine which one I need?
Thanks , Timmy



[inka]

Hello All, I am in need of service kits for my Aqualung Titan first stages. I found 2 different ones on eBay. I see one say Titan ‘10. Aqua Lung Mikron / Legend 1st Stage Regulator Service Kit #900014 | eBay What does the the ‘10 stand for exactly?
Here is the other one.
https://m.ebay.com/itm/Aqua-Lung-1s...638780?hash=item3abb30c53c:g:EboAAOSw-jhUKWjQ
Can someone help me determine which one I need?
Thanks , Timmy

Titan 10 => model year 2010 but not ACD



[herman]

There are basically 2 models of the Titan, the early one (which uses the same kit as the Conshelf) and the later version which was introduced later (2010??)



[inka]

The older 1st stage Titan is grey <2009,
the Titan 1 stage 2010, is black, T shape 4 MP + 1 HP
the last one >2011, black T shape ,has 4 MP + 2 HP



[axxel57]

Actually there are three different Titans.
The Pre 2010 inline Titan model Service Kit Number 900001
The Titan LX 90' 1st stage model Service Kit Number 900018
And the actual also 90' 1st stage model Service Kit Number 900014
Photo would be helpful for identification....



[BigRed96]

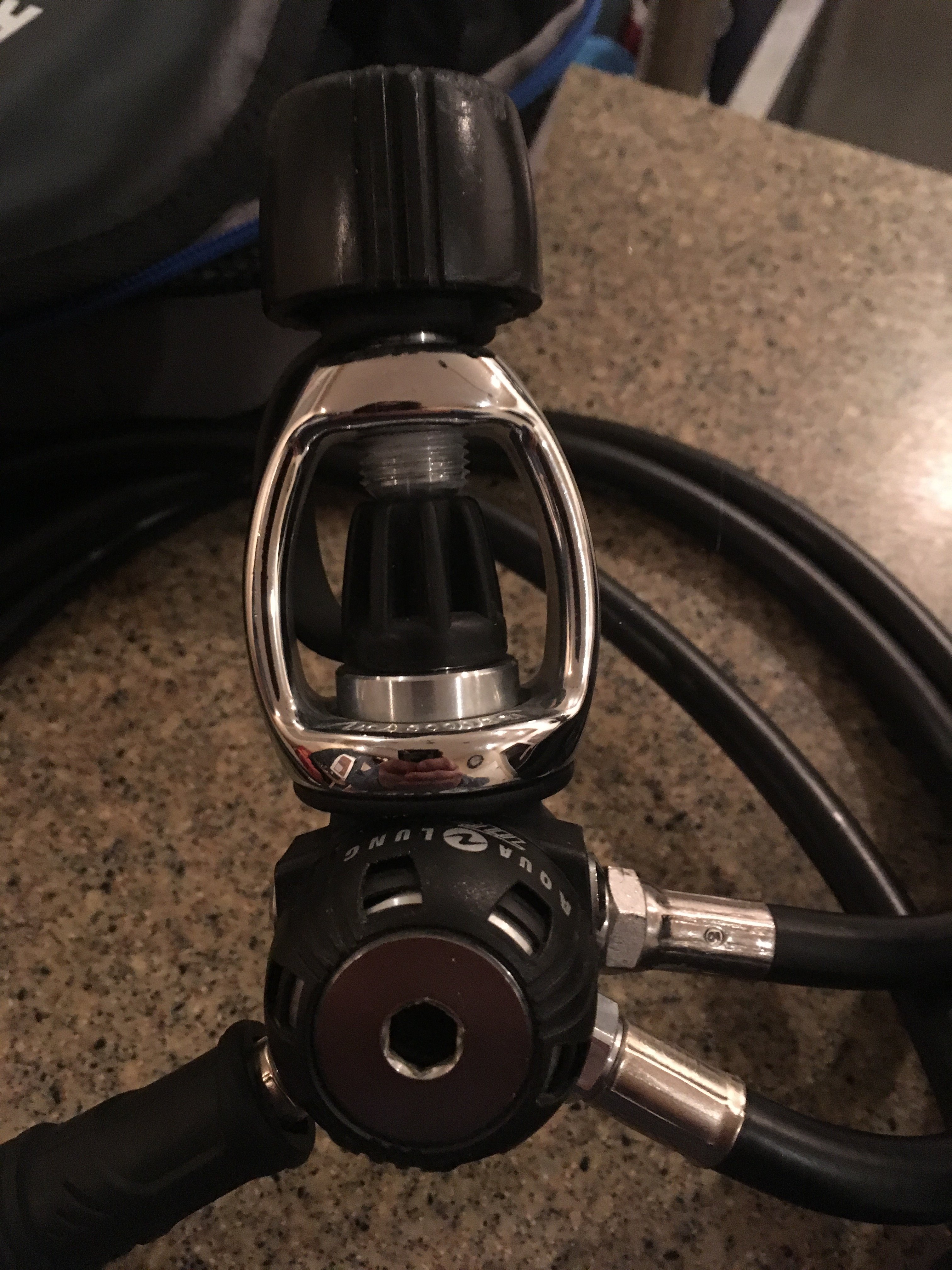

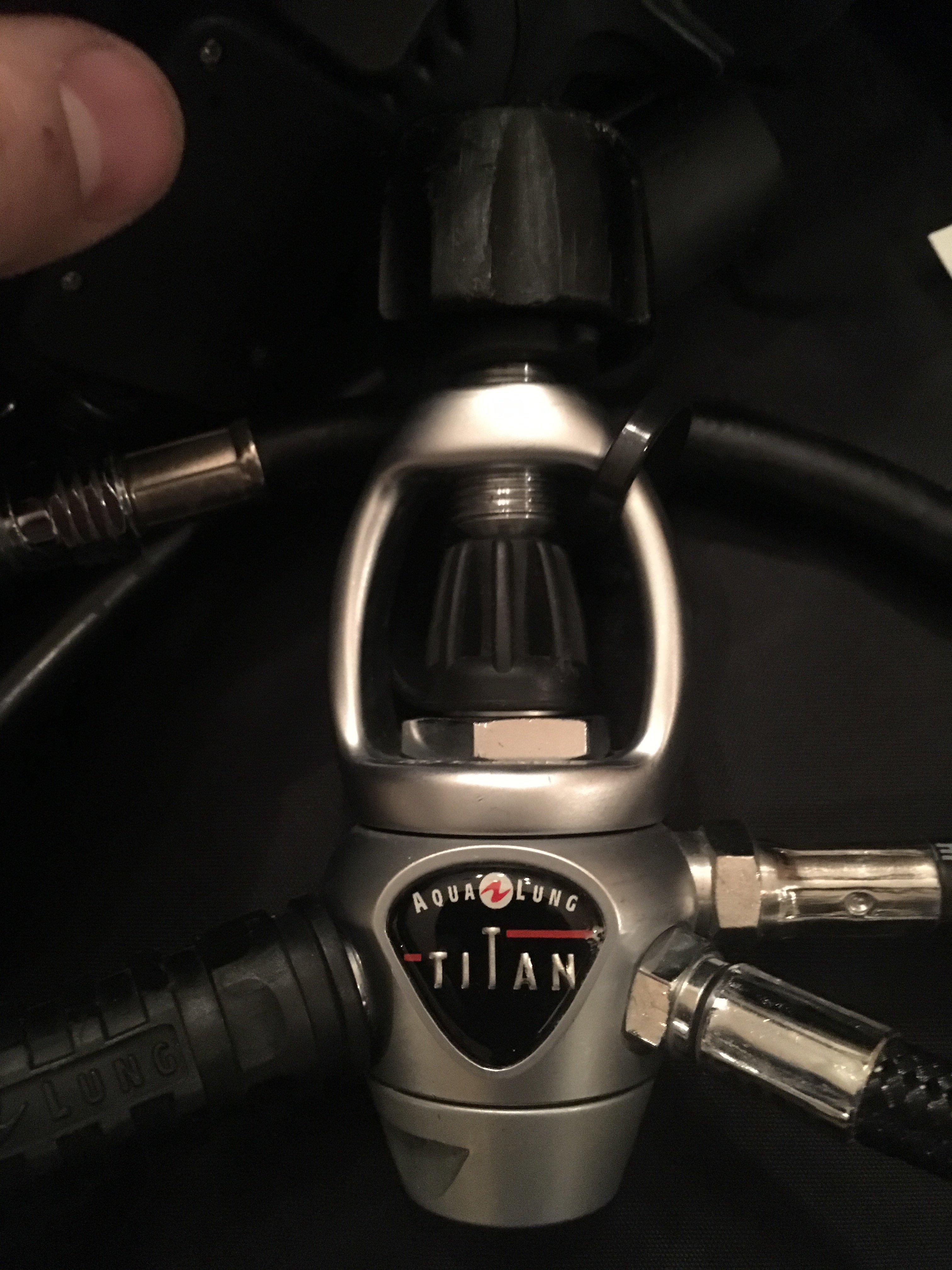

Thanks for the replies so far. Here are some pictures of the three I need kits for.

47FD90C6-4D34-4112-97B3-A58D42B3F8C1

• BigRed96
• Jan 30, 2018

744B2348-3414-490B-8294-C3ADF7556BDF

• BigRed96
• Jan 30, 2018

E66923D3-A939-4E5E-A35D-B69C0EB84359

• BigRed96
• Jan 30, 2018

I believe the first two will use the conshelf/Titan kit and the third will use the ‘10 kit. Does this sound right? I also have a question about the Titan second stages. Do all the second stages use the same kits or are there different kit like with the first stages?
Thanks, Timmy



[buddhasummer]

Thanks for the replies so far. Here are some pictures of the three I need kits for.

47FD90C6-4D34-4112-97B3-A58D42B3F8C1

• BigRed96
• Jan 30, 2018

744B2348-3414-490B-8294-C3ADF7556BDF

• BigRed96
• Jan 30, 2018

E66923D3-A939-4E5E-A35D-B69C0EB84359

• BigRed96
• Jan 30, 2018

I believe the first two will use the conshelf/Titan kit and the third will use the ‘10 kit. Does this sound right? I also have a question about the Titan second stages. Do all the second stages use the same kits or are there different kit like with the first stages?
Thanks, Timmy

Question number 1, yes.

I'm almost positive all second stages do not use the same service kits, there are parts that are common but not all.

Be mindful that the Titan uses a removable crown and as such uses an additional O ring that I'm pretty sure will not be included if you buy a Conshelf "exclusive" kit. A new stock kit will be for both.



[sh1513]

Take a look at this document, it is from 2015 but is still valid Dropbox - AqualungServiceKit2015.docx



[inka]

Second stages:
Titan is unbalanced.
Titan LX, is balanced.
so, not the same kit.
scubaspares



[BigRed96]

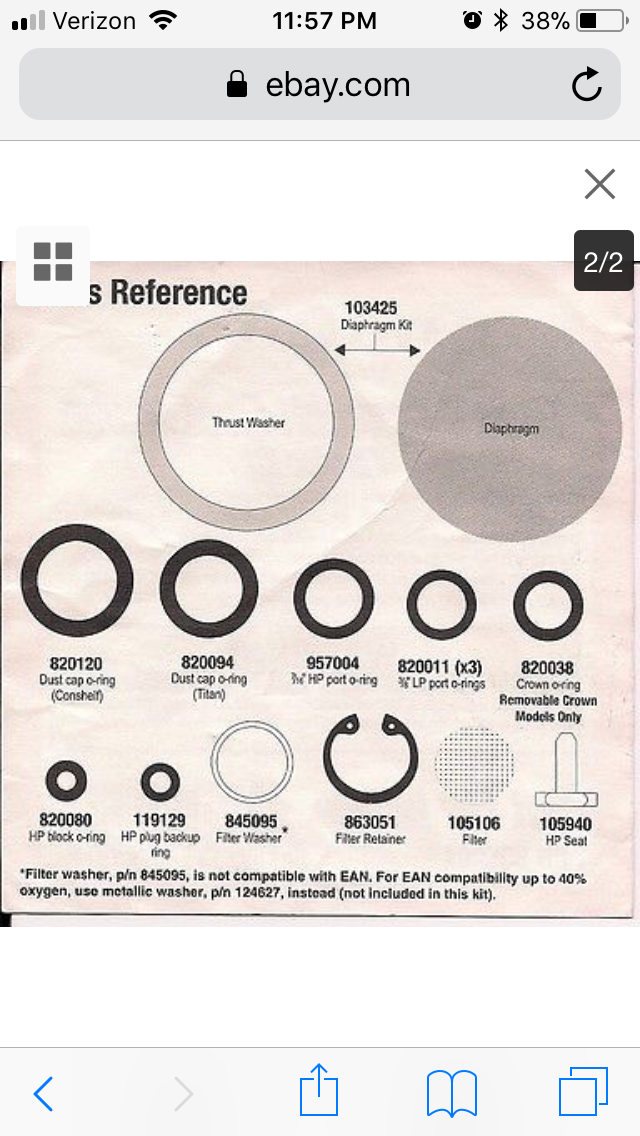

Thanks for al the information and replies everyone. I was getting ready to buy a few of these kits https://m.ebay.com/itm/Aqua-Lung-1s...638780?hash=item3abb30c53c:g:EboAAOSw-jhUKWjQ but looked at the picture on the back and noticed this.

130EC8F5-7FA1-4AE6-A7F4-ACC5E9020430

• BigRed96
• Feb 1, 2018

. At the asterisk it says the included washer is not compatible with Nitrox, that a different washer is needed. Does anyone know where I might get this washer as all the rugs will be used with nitrox?
