Uv 26 conversion
- Thread starter treasurehunter
- Start date
Please register or login
OP
treasurehunter
Contributor

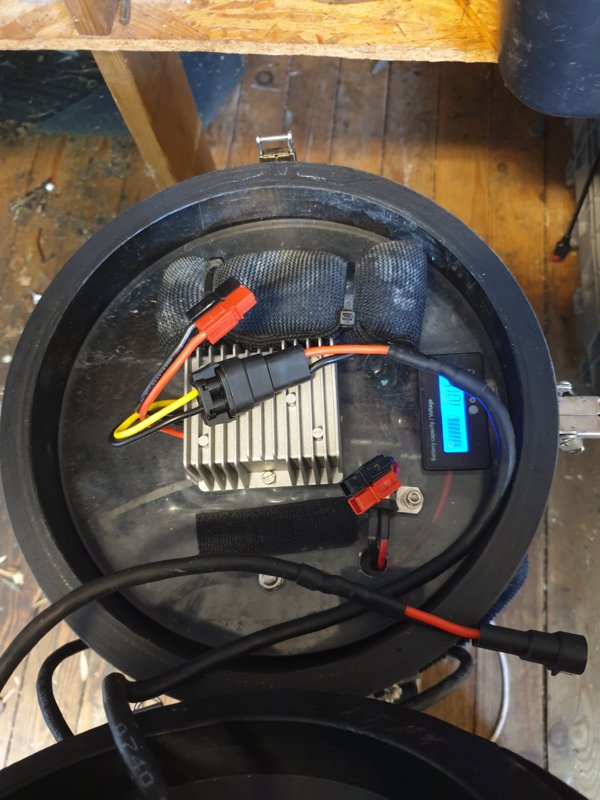

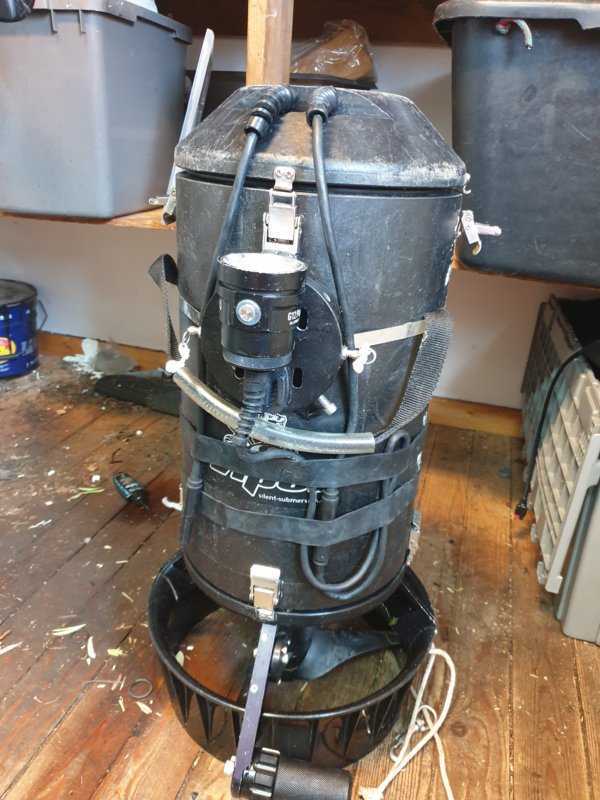

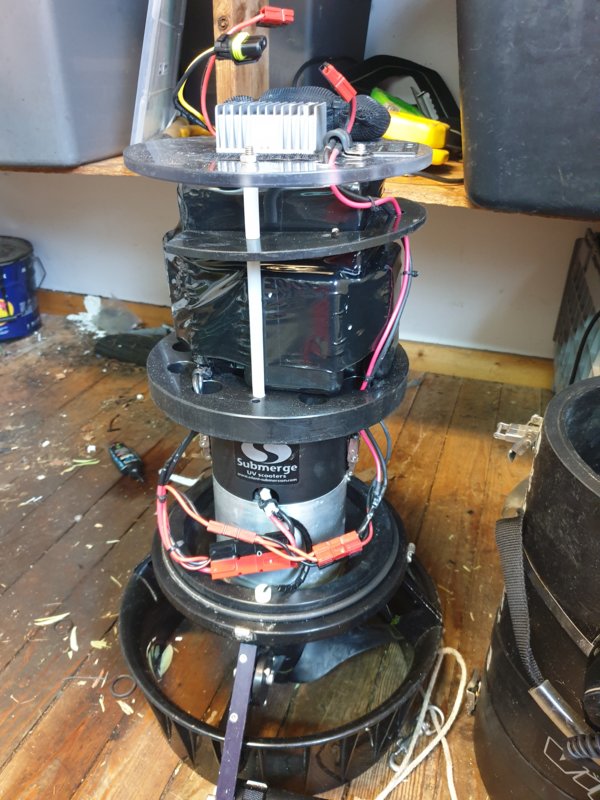

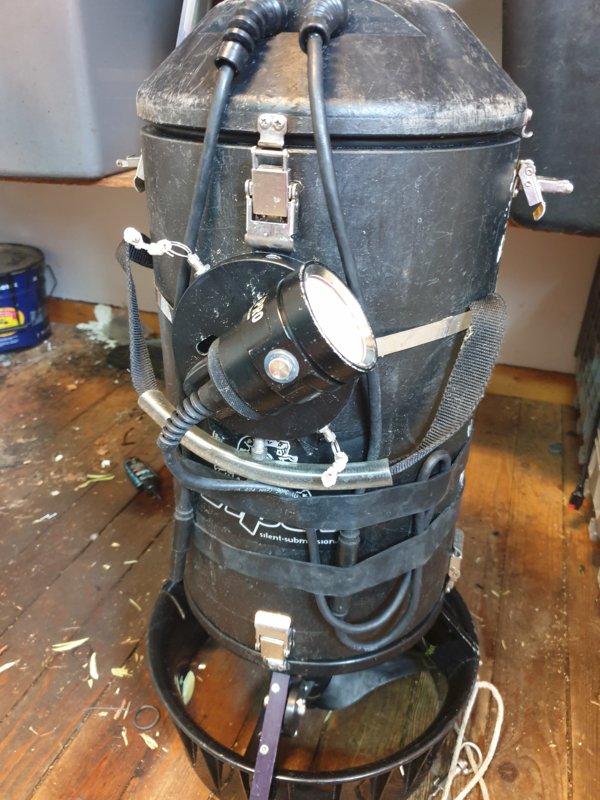

Some pictures of my frankenstein monster
Any criticism and questions are absolutely welcome!
View attachment 657448 View attachment 657449 View attachment 657450 View attachment 657451
You will be assimilated, Resistance is futile.
Do you have the venom ESC? How did you connect the power for your light, that looks interesting.
OP
treasurehunter
Contributor
These are my two battery packs I built. They have a top grade smart bms with Bluetooth.
Each battery weighs 5.5lbs. With a capable max continuous discharge of 60 amps each, combined they can discharge 120 amps. Voltage is 29.4 and 21ah each, so combined in parallel they are 42 ah
With Uv-26 motor at full speed the max amps used is 30amp,and motor pulls 800w with max pitch running against a wall.
This 100amp bms is fully configurable from my iphone , low/high volt cut off, amps, short circuit and charge protection, ....etc. You charge and discharge from same wires which is better for paralleling lithium batteries. Some other bms do not parallel well if they have separate charging wires.
The inner derilin tube was shortened by 1''. You have room to shorten max 1.5'' if you want but the clips will be practically touching bottom battery holder plate.
The cutting of hull and inner tube and re-tapping threads for clamps was done by a machinist. The diameter of the 10'' hull seemed to be an issue for some machinist due to not having equipment to accommodate the size, so need to shop around for one that handle the size.
This helped me to shorten the body to 10 inches, by lowering the battery pack deeper in the hull.
The fit is tight with barley one centimeter to spare on the circumference. This fit is perfect so the battery cannot move in the body and cause unwanted issues while diving.
This is the final product. 52lbs before ballast weight and 60lbs with ballast.
.
I have left to install the ESC which I purchased from Smart-Dpv and am waiting for delivery. It will have 8 customizable speeds with 2 clicks to upshift and 1 click to down shift and 3 clicks for full speed. Also seems to be able to log data and you can download info to computer.
Each battery weighs 5.5lbs. With a capable max continuous discharge of 60 amps each, combined they can discharge 120 amps. Voltage is 29.4 and 21ah each, so combined in parallel they are 42 ah
With Uv-26 motor at full speed the max amps used is 30amp,and motor pulls 800w with max pitch running against a wall.
This 100amp bms is fully configurable from my iphone , low/high volt cut off, amps, short circuit and charge protection, ....etc. You charge and discharge from same wires which is better for paralleling lithium batteries. Some other bms do not parallel well if they have separate charging wires.
The inner derilin tube was shortened by 1''. You have room to shorten max 1.5'' if you want but the clips will be practically touching bottom battery holder plate.
The cutting of hull and inner tube and re-tapping threads for clamps was done by a machinist. The diameter of the 10'' hull seemed to be an issue for some machinist due to not having equipment to accommodate the size, so need to shop around for one that handle the size.
This helped me to shorten the body to 10 inches, by lowering the battery pack deeper in the hull.
The fit is tight with barley one centimeter to spare on the circumference. This fit is perfect so the battery cannot move in the body and cause unwanted issues while diving.
This is the final product. 52lbs before ballast weight and 60lbs with ballast.
.
I have left to install the ESC which I purchased from Smart-Dpv and am waiting for delivery. It will have 8 customizable speeds with 2 clicks to upshift and 1 click to down shift and 3 clicks for full speed. Also seems to be able to log data and you can download info to computer.
- Messages
- 20,685
- Reaction score
- 15,239
- # of dives
- I'm a Fish!
@treasurehunter have you gotten it in the water to make sure it still trims out properly?
OP
treasurehunter
Contributor
@tbone1004 yes it trims out very nice, but most of the ballast needs to be in the nose. I prefer it on the ever so slightly negative side. Only because I prefer the scooter to settle on the bottom if I put it in the water before I’m ready to clip it on and go. Or if it detached from me I know to look for it on the bottom rather than it just drift away.
I haven’t got to spend some good time to fine tune the trim but got very close. My wife is an expert ‘honey do list ‘writer.
With 8lbs in the nose, I’m pretty sure it can be shortened more.
I haven’t got to spend some good time to fine tune the trim but got very close. My wife is an expert ‘honey do list ‘writer.
With 8lbs in the nose, I’m pretty sure it can be shortened more.
Markus MDDT
Registered
Markus MDDT
Registered
View attachment 659819 View attachment 659818
You want proof?
Långban mine with my old dual 100W HID a couple of months ago.
Hand position due to posing
I haven't seen any scuba boarder patrol under water yet.(oops did I say that out loud
Just kidding
You want proof?
Långban mine with my old dual 100W HID a couple of months ago.
Hand position due to posing
OP
treasurehunter
Contributor
It will be very interesting to see your scooter!! I would very much like to be corrected regarding the balancing of a shorter scooter
There is still some room for improving the trim. I will try to trim it nose slightly up instead.
