Here's why I started this thread.

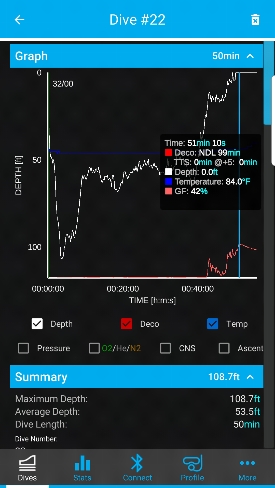

Attached below is the graph from my Perdix for a dive to Little Tunnels in Grand Cayman last year. It was when I was attentive to extra time on my safety stops, but not so much on ascent rate in the last 15'.
The dive was to 108' max for 50 min; first dive of the day. Average depth 53'. EAN 32.
Min NDL during the entire dive was 11min. left. So, an average vacation dive, not pushing limits. Except maybe gas usage.
Since I could see the boat above me the whole time, and hung out for 8 min total in safety stops, I surfaced with 375 psi.
View attachment 551584
Now that Shearwater Cloud has implemented graphing of the GF99 (GF "now"), it was fascinating to see what happened at the end of the dive:
View attachment 551585
The GF went from ongassing at depth to 22% upon reaching the Safety Stop at 15'. Perhaps because this was the first dive of the day, the GF declined rapidly while hovering at 15' for 5 min. But then upon ascending to 5' for a second stop, it jumped right up to 30% and then to 42% upon hitting the surface 3 min later. Had I had SurGF in the firmware at that time, it would have been interesting to see what my predicted surface GF would have been when I first left my final depth of ~55'. Putting the dive into SubSurface suggests that it was probably around 55%.
In any case, a LOT is happening in the last 15 feet! Extra time at the safety stop clearly helps. But also, the abrupt change in GF suggests to me at least, that slowing that rate of final ascent means I'll be pulling the tab on the Coke can just a little more gingerly.
