Plain Jane o-ring dimensions ?

[Externet]

Hi.
For the tank valve mating a regulator yoke. What dimensions is the perfect o-ring ; in millimetres or in inches ?

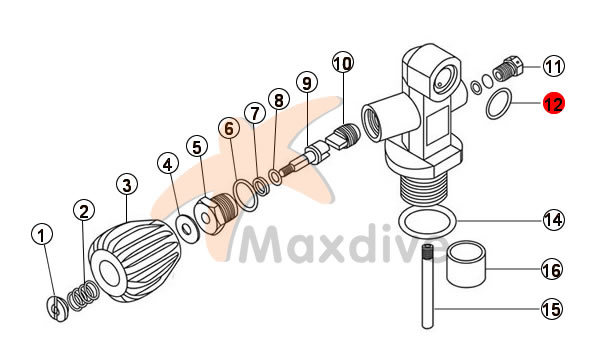

12 at ----> http://g02.a.alicdn.com/kf/HTB1RJ0k...ba-Valve-Outlet-O-ring-Face-O-ring-Yoke-O.jpg



[bl6394]

The Society of Automotive engineers has a standard for specifying O-ring sizes that are used for sealing applications and are specified by a three digit number. The size you want for yoke o-rings is: 014 (i.e. AS568B-014). The first digit 0 specifies that the cross sectional diameter of the o-ring is 1/16th of an inch. You'll find the nominal and actual inner diameter, cross section, and outer diameter here:

O-ring Sizing Chart

Regards,



[Externet]

Thanks for your assistance.

The "AS568B-014" does not show at that link. The "-014" dimensions were found OK.



[Colliam7]

The "AS568B-014" does not show at that link. The "-014" dimensions were found OK.

The good news:

The AS568B-014 siz specifications are the same as the 'A' specifications: http://www.coastalhydraulics.net/technical-library/Hydraulic Performance Data/O-RING quick ref CHART.pdf
