O-ring size

[Jens Bölte]

Hello,

I'd like to buy Scubapro 01050132 o-rings from the aftermarket. Does somebody know the size of this o-ring? It is the o-ring that comes on the hose.

Many thanks in advance

Jens



[OMyMyOHellYes]

Quick search of scubaboard for scubapro o-ring cross reference:

2-010 Durometer 70 per x-ref found at:

Is there an O-ring equivalence table for SP and Apeks reg's?

I was wondering if anyone knows of an o-ring equivilents table for SP and Apeks regs. In light of how much the service kits cost, and the PITA to obtain them at times, having a list of which commercially available O-rings apply to which part number would be invaluable. I'd like to be able to...

scubaboard.com

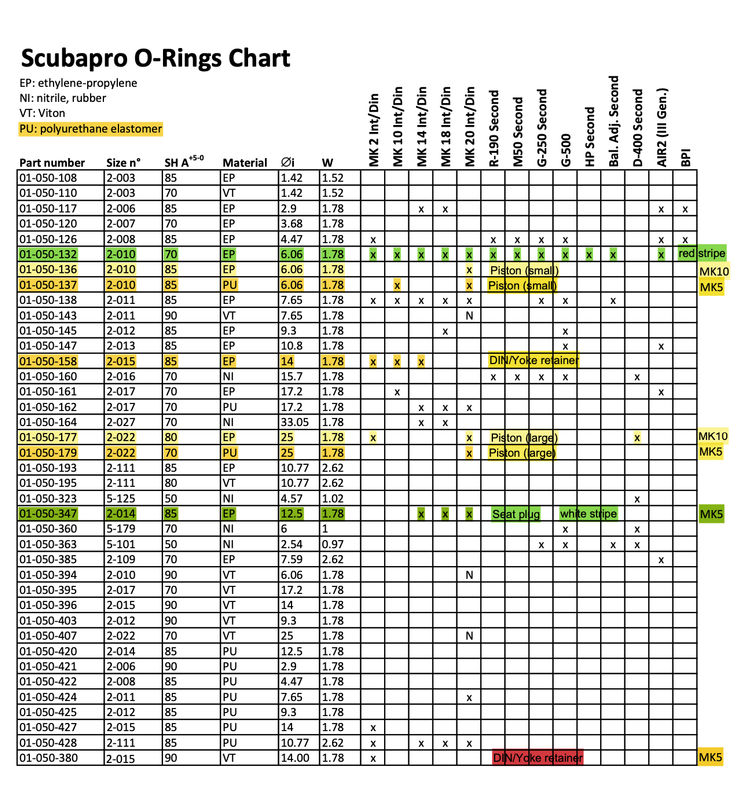

Image posted down on first page by Rob Singler - with acknowledgments to the unknown user who may have earlier posted it



[Jens Bölte]

Thanks a lot. According to this chart the o-ring is 6,06 x 1,78 mm.

Best wishes Jens



[Nemrod]

There is this chart, I forget, it was possibly AWAP or Robert (Couv):



[tursiops]

It is the o-ring that comes on the hose.

Which end?



[Jens Bölte]

Which end?

The o-ring has the same number according to the schematics.

Best wishes Jens
