Magnehelic Gauge Mouthpiece adapter

Discussion in 'Repairing your own Gear' started by Jonno, Apr 5, 2021.

  1. Jonno

    Jonno Registered

    # of Dives: 1,000 - 2,499
    Location: Turkish Republic of Northern Cyprus
    59
    0
    Hi,

    Has anyone made an adapter to use a mag guage please and if so can you post a photo or two. We have trouble with postage here and normally I have stuff posted elsewhere and visitors bring it but few are curently traveling.

    Thanks

  2. Open Ocean Diver

    Open Ocean Diver ScubaBoard Supporter ScubaBoard Supporter

    # of Dives: 100 - 199
    Location: Lauderdale-by-the-Sea
    1,300
    867
    DIY regulator test/flow panel

    Cdncoldwater likes this.
  3. Open Ocean Diver

    Open Ocean Diver ScubaBoard Supporter ScubaBoard Supporter

    # of Dives: 100 - 199
    Location: Lauderdale-by-the-Sea
    1,300
    867
    This is from @herman post.


  4. rhwestfall

    rhwestfall Woof! ScubaBoard Sponsor

    # of Dives: 200 - 499
    Location: "La Grande Ile"
    17,096
    20,790
    I use either the ScubaPro one (think it was made for the Air2), the factory one from ScubaTools that came with the mag, or a custom one made for my double hose regs from an old mouthpiece and check valves (others have posted pics of this here on SB, probably not what you are looking for).

    One thing I use on all my regs is the ScubaPro removable mouthpiece clips. Makes life easier for me to test.

    YMMV

    Open Ocean Diver likes this.
  5. -JD-

    -JD- Eclecticist ScubaBoard Supporter

    # of Dives: 50 - 99
    Location: Greater Philadelphia, PA
    1,081
    757
    dkm9xqdad4vdr_a9786nyyoudzeycp8kahn9qqzfl5gfvjbe8p_pmrih8-ekfag1tnf-bi-w2052-h1403-no-jpg.605960.jpg

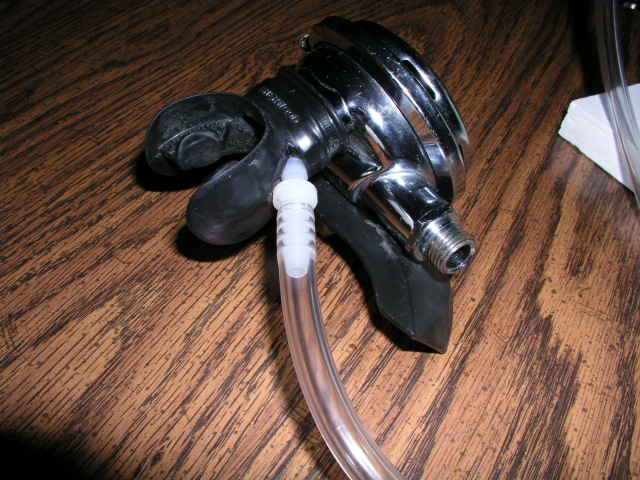

    This is the one I worked up.
    Some latex tubing that will pres-fit inside my mouthpieces - 3/4" I.D x 1/8 Wall x 1" O.D Latex Natural Tubing Heavy Duty Surgical Rubber: amazon.com/gp/product/B0796RHMZG
    Blue fitting is from Home depot and is a barb to NPT which was drilled and tapped on the side for the brass 1/8" barb-to 1/4" NPT-M which then goes to the Mag gauge.

    The white stopper, fitting and tubing at the end is for a vacuum pump for carefully finding the cracking pressure. It is just press fit in, and can be popped out for oral induction.

  6. Jonno

    Jonno Registered

    # of Dives: 1,000 - 2,499
    Location: Turkish Republic of Northern Cyprus
    59
    0
    Am I right in assuming that you draw breath through the mouthpiece whilst monitoring the reading on the gauge?

  7. Jonno

    Jonno Registered

    # of Dives: 1,000 - 2,499
    Location: Turkish Republic of Northern Cyprus
    59
    0
    So the side fitted tube is connected to the gauge, the pressure used to crack it is then from the end fitting, which you are using a vac pump on but you could just suck? Thanks

  8. Jonno

    Jonno Registered

    # of Dives: 1,000 - 2,499
    Location: Turkish Republic of Northern Cyprus
    59
    0
    Some great feedback here thanks everyone

  9. OTF

    OTF Contributor

    # of Dives: 200 - 499
    Location: scubaboard
    603
    805
    In a pinch I carved one out of a potato.

    Tracy likes this.
  10. arew+4

    arew+4 Contributor

    # of Dives: 200 - 499
    Location: Pa
    1,077
    1,267
    Total hijack, sorry.

    But why use a magnahelix vs. a digital diferential manometer?
