Look what I came across anyone recognize?

[lowwall]

Don't tell @The Chairman, but it looks like Ms Bissett has similar buoyancy problems as our pool model. But a compensatory bcd would obscure other equipment. Another D- grade.
What to do?

Send her to a Peaks Performance Buoyancy class of course.



[axxel57]

do not know about Nick`s Spinnaker , I`d try to find any manuals or drawings, to know how is made the valve, but never see it, just outer view.

But most wondering regulator Jacqueline has. It is Piel.
View attachment 619526
View attachment 619527 View attachment 619528 View attachment 619529

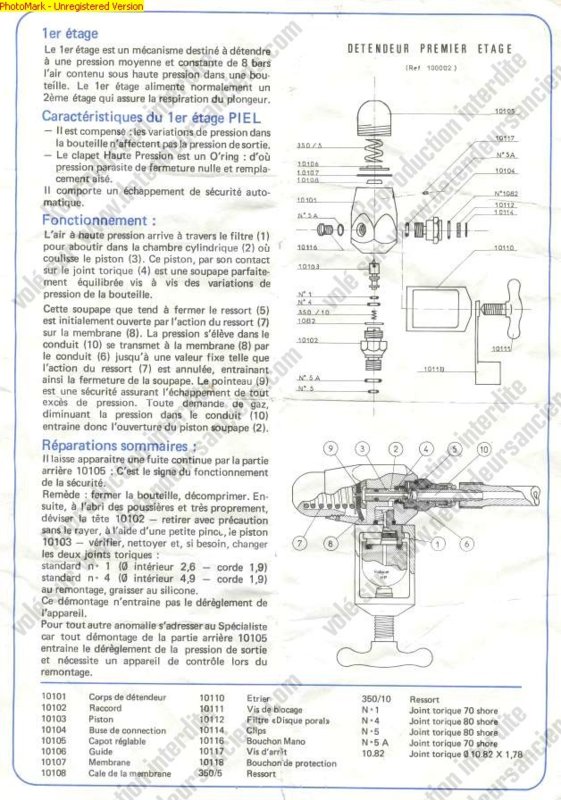

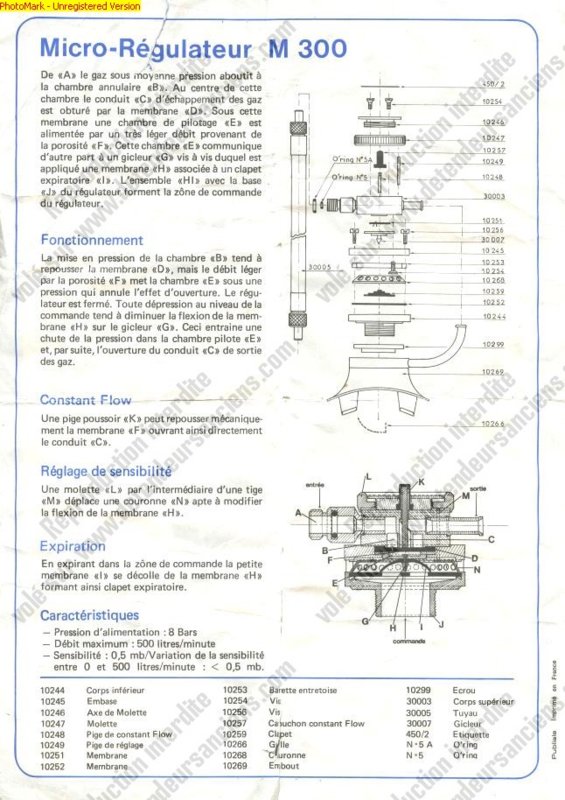

It has pilot valve and crazy scheme... and really tiny size, despite arrangement...

Cool small reg! Thanks for the schematics!
I just got me a Spinnaker, looking forward to dismantle, clean and adjust it.

Angelo was right, it works with only about 4bar IP.
It was breathing surprisingly easy, but after dismantling the mouth piece, suddenly it's free flowing (no idea why), so I cannot measure the cracking effort for now.
I will make photos when I have the reg dismantled, but my ones will be probably not better than these ones........
Lola.cz - Potápěčské vybavení



[Open Ocean Diver]

Cool small reg! Thanks for the schematics!

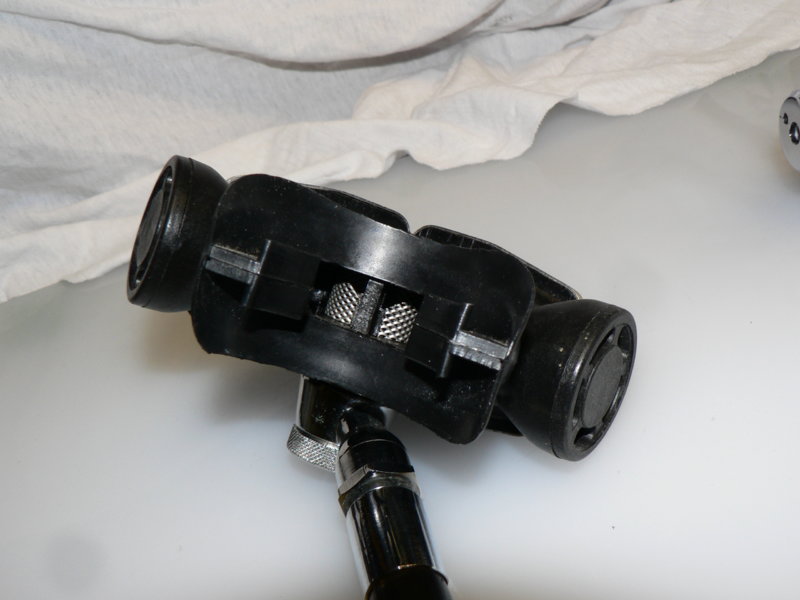

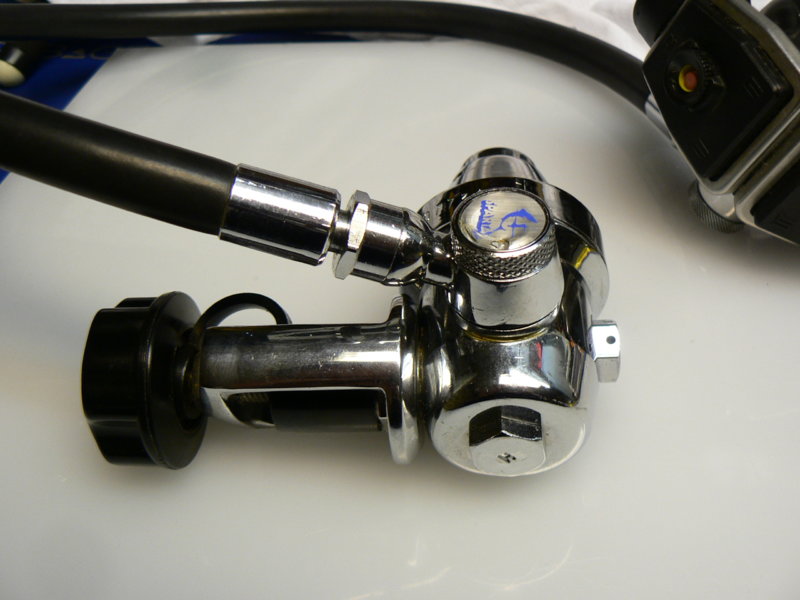

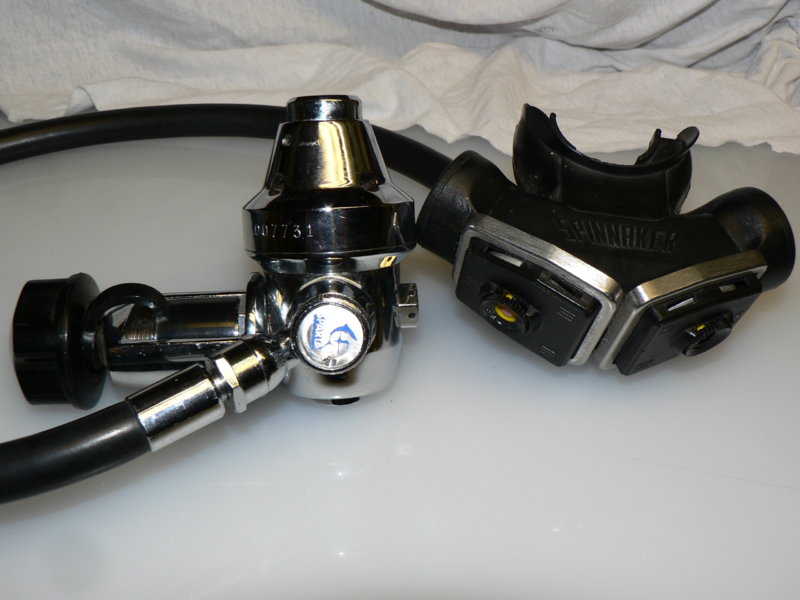

I just got me a Spinnaker, looking forward to dismantle, clean and adjust it.
View attachment 619792
View attachment 619793 View attachment 619794 View attachment 619795

Angelo was right, it works with only about 4bar IP.
It was breathing surprisingly easy, but after dismantling the mouth piece, suddenly it's free flowing (no idea why), so I cannot measure the cracking effort for now.
I will make photos when I have the reg dismantled, but my ones will be probably not better than these ones........
Lola.cz - Potápěčské vybavení

Most interesting design can’t wait to see your teardown.



[Saboteur]

Trim and neutral buoyancy grade: D-

You’re harsh!



[The Chairman]

You’re harsh!

Honesty is the only policy.



[axxel57]

Most interesting design can’t wait to see your teardown.

Whow,haven't had that much fun working on a reg since my first SP Pilot twelve years ago........
What a unique 2nd stage design!
And it's working much better than I expected!



[The Chairman]

Thanks for exploding it like that!



[rsingler]

Another servo design!?
No wonder you're happy!



[Open Ocean Diver]

Came across this on the web....

“It is a "Pneumatic Servo Assisted" type second stage. I believe it predated the "Tekna 2100" and I am sure it came before the "Oceanic Omega". One unique thing about this regulator is that the second stage is actually two independent second stages. They can be individually adjusted for inhalation resistance and the knob on the bottom allows you to choose which second stage you are using. If you position the knob in the center, both second stages are simultaneously in use”



[Kupu]

Whow,haven't had that much fun working on a reg since my first SP Pilot twelve years ago........
What a unique 2nd stage design!
And it's working much better than I expected!]

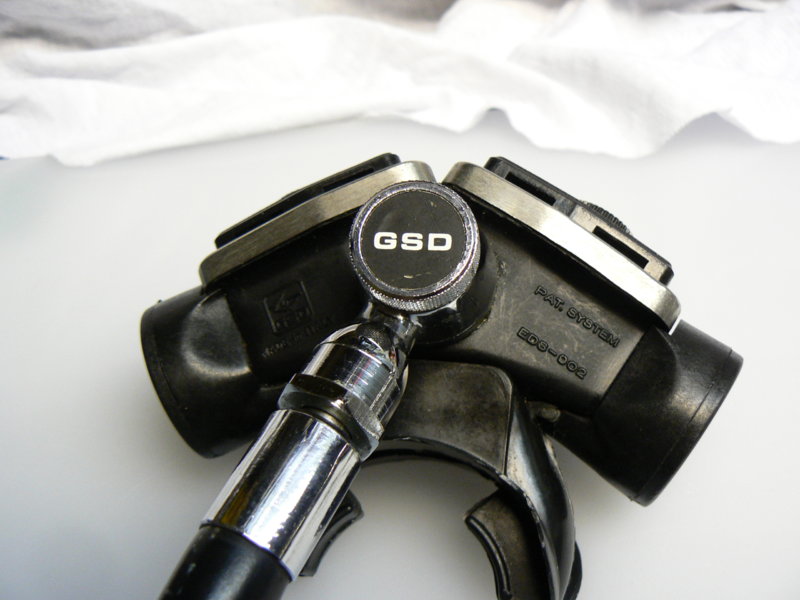

Quite interesting, you have inspired me to open a GSD Pioneer set I picked up last year. Photo taken from the lola.cz site you shared above, thanks!
