Kubi Gloves - What am I missing?

[scooba_kev]

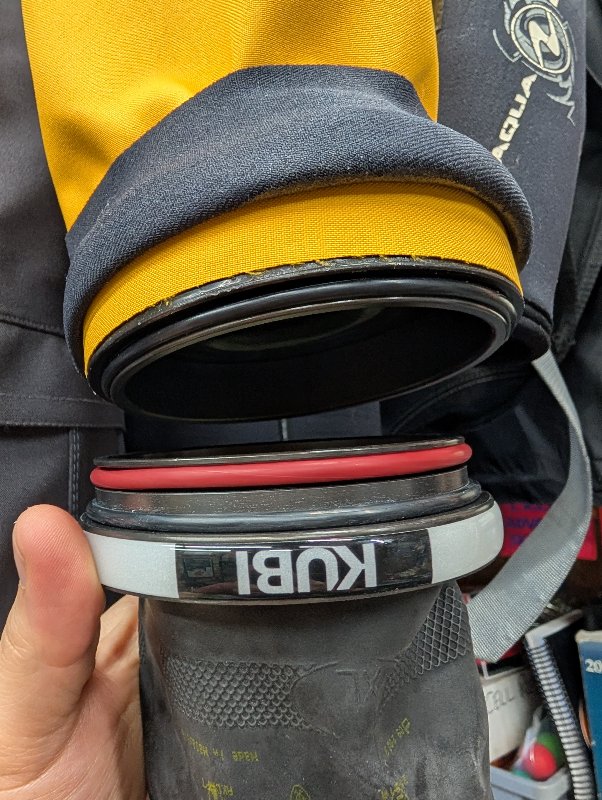

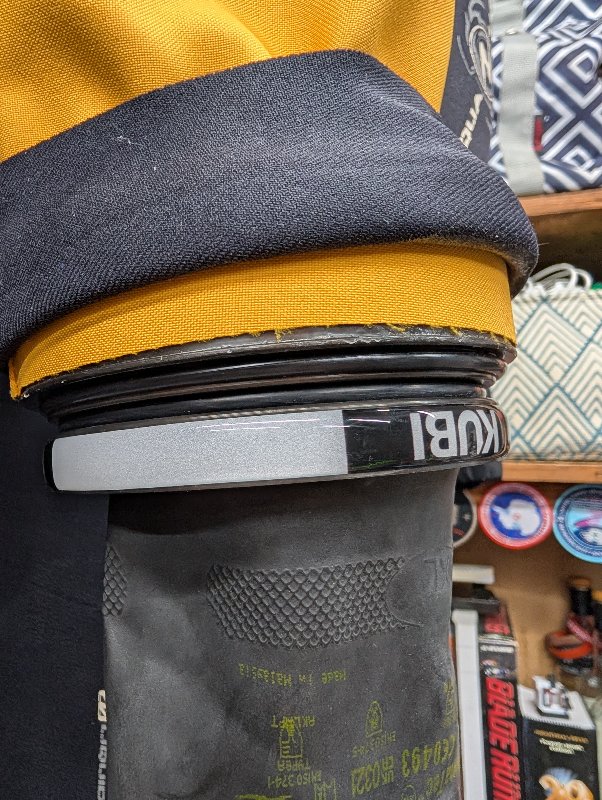

First time using the Kubi system on my new dry suit. Maybe a stupid question but what is the purpose of the black o-rings on the cuff and glove side? When the glove side is installed both of those black o-rings are still exposed. I was thinking maybe the cuff side black o-ring maintains compression between the glued cuff ring and the inner cuff ring, and the glove side black o-ring maintains compression from the glove to the cuff axially? Not immediately clear to me.



[wlkerboh]

Both are holding other components in place.

On the suit side, it holds the metal ring in place. When you need to replace the wrist seal, the black o-ring comes off and the inner metal ring is pushed up the sleeve to expose another o-ring that holds the wrist seal in place.

On the glove side, the black o-ring is holding the KUBI ring in place. When it's time to replace a glove, both of the visible o-rings come off and the kubi ring slides off to expose a 3rd o-ring that provides a seal for the glove.



[scooba_kev]

Both are holding other components in place.

On the suit side, it holds the metal ring in place. When you need to replace the wrist seal, the black o-ring comes off and the inner metal ring is pushed up the sleeve to expose another o-ring that holds the wrist seal in place.

On the glove side, the black o-ring is holding the KUBI ring in place. When it's time to replace a glove, both of the visible o-rings come off and the kubi ring slides off to expose a 3rd o-ring that provides a seal for the glove.

Super helpful, thanks!
