Just ordered my FATHOM!

Discussion in 'Rebreather Diving' started by Doby45, May 6, 2019.

  1. rddvet

    rddvet DIR Practitioner

    # of Dives: 50 - 99
    Location: Florida
    738
    499
    63
    WOB is just fine. It ships with either a gg or dive soft bov or a gg dsv. Mavs and adv’s built into bov’s sucks.

    Brad_Horn and Doby45 like this.
  2. kensuf

    kensuf Cave Instructor

    1,912
    2,385
    113

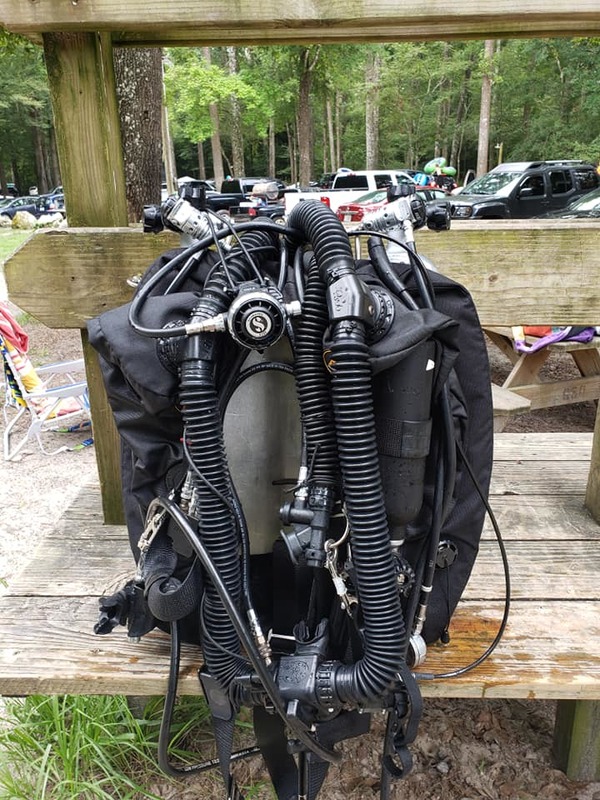

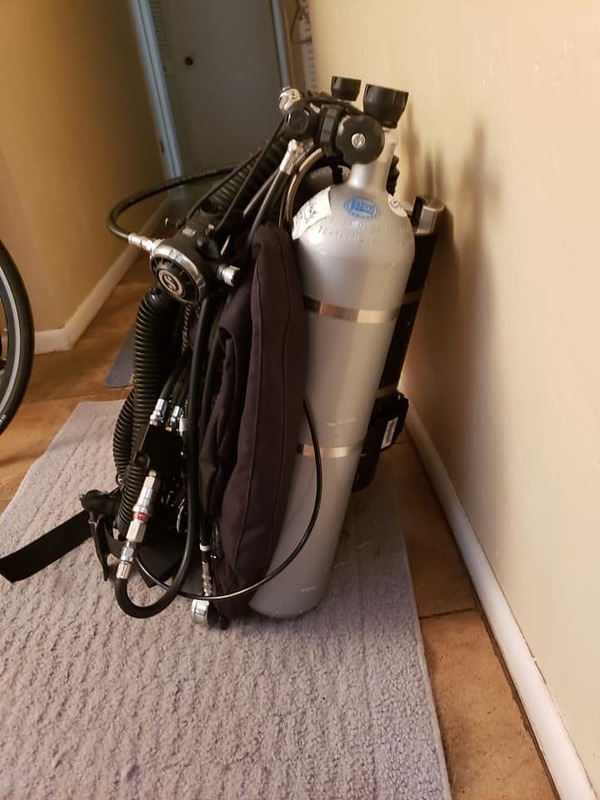

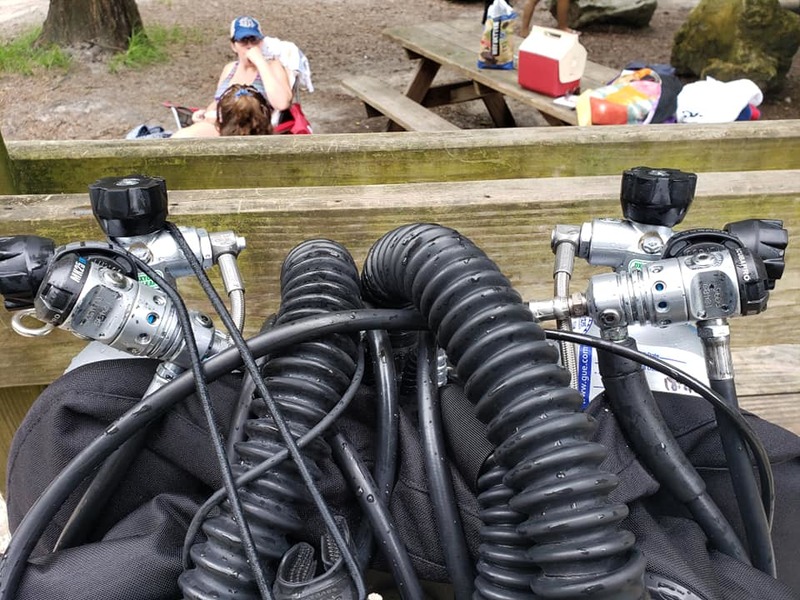

    I did some playing around with the Fathom this week to get the backmount bailout configuration dialed in. It's effectively the same as my OC doubles rig now, but with a rebreather in the middle.

    I'm using twin LP50's with LOLA valves and a manifold, then my regular OC backmount regs. Right post is 100% standard, 7' hose, wing inflate. Left post is standard short hose, pressure gauge, and DIL fed through a QC6. Oxygen is a 2L LP cylinder mounted onto the can with a standard pony mount (I'm using a Highland mount).

    Test run was a 100 minute swim around Devil's Eye cave. It was absolutely stable and clean and when my dive was over, I simply had one trip out of the water. I'm looking forward to diving this rig off a boat next month, it'll also likely be my go-to bailout rig for teaching CCR cave moving forward.




  3. silent running

    silent running Manta Ray

    # of Dives: 1,000 - 2,499
    Location: Brooklyn, N.Y. U.S.A.
    508
    33
    28
    Very interesting stuff, I didn’t know they were 300bar capable and I guess it stands to reason the standard is very high and barely achievable at that.

    Brad_Horn likes this.
  4. Doby45

    Doby45 Do I have something in my teeth?

    1,785
    1,041
    113
    I take it your drysuit is coming off the tiny inflation bottle in the pic?

  5. CptTightPants21

    CptTightPants21 Solo Diver

    # of Dives: 200 - 499
    Location: NY/NJ
    995
    504
    93
    Looks good Ken. Do you have a picture from the top showing how much the O2 bottle adds to the profile?

    Are you protecting the can in anyway with a cave shield or similar?

  6. kensuf

    kensuf Cave Instructor

    1,912
    2,385
    113
    Yes, that's a drysuit bottle.

    No photos of it from the top right now, and I've got it stripped back down for my dives this weekend. I'll get some photos of it next month, but the profile with the 2L is pretty low. I was able to squirm through stuff that's pretty tight in 104's.

    shoredivr and rjack321 like this.
  7. rjack321

    rjack321 Captain

    # of Dives: 1,000 - 2,499
    Location: Port Orchard, WA
    8,589
    2,486
    113
    I'm using one of those mounts (in the same basic place) for a 13cf suit gas bottle behind 2 conventional 3L CCR bottles. Seems really big to me, but when the water is frigid (<5C/41F) and esp. when I am doing free ascents I tend to use a lot of suit gas. It is at least far more secure than my old Velcro straps.

  8. rddvet

    rddvet DIR Practitioner

    # of Dives: 50 - 99
    Location: Florida
    738
    499
    63
    I'd like to see those photos when you get them. I'd also be interested in seeing what the whole system weighs compared to a set of 85s or 104s. Is it a pain pulling it all apart? It'd be nice if the 50s could just slide off without having to take apart the lola valves

  9. rjack321

    rjack321 Captain

    # of Dives: 1,000 - 2,499
    Location: Port Orchard, WA
    8,589
    2,486
    113
    Can you reach the valve on your O2?

  10. kensuf

    kensuf Cave Instructor

    1,912
    2,385
    113
    Yeah, very easily. Not sure if I could if I was using 85's instead of the 50s though.

    rjack321 likes this.
