DIY canister light kit

[rescue15]

I have for sale the parts to make 4 battery canisters. The kit includes a canister made of schedule 120 PVC pipe, dark gray in color. It will have a PVC plug glued (cold weld) on one end. A top cover made of solid 1 inch Poly carbonite clear plastic, professionally machined to fit the open end, and all the necessary o-rings to seal the canister and modified M@G light.

The canister will be shipped ready for your finishing touches...adding your gland, draw latches, switch, or whatever you want to do to it. The kit does not include any of these parts, just the canister, lid and o-rings

If I get enough interest I can get professionally machined polycarbonite stepped lenses for the D-Cell M@G light. This will allow me to offer modified M@g light shells also.

The canister fits this battery... NiMH Battery Pack 12V 4500mAh (50Wh 10x4/3AF ) for DIY Diving light: HID / Halogen - BL-H12V4500W5

Canister cost shipped to your door on the continental US via USPS Priority mail is $50.00.

I NEED A COMITTMENT FOR 4 ORDERS BEFORE I CAN SHIP TO MEET MINIMUM SHOP REQUIREMENTS FOR THE LID​

Thanks
Steve



[linger]

pm sent



[marcienko]

PM sent



[MrSpock]

PM sent



[rescue15]

can't figure out how to add pics. Will work on it and have some posted soon.

Steve



[rescue15]

In the meanwhile, this is what you will get...
**2 each buna -N o-rings in sizes 227, 134 and 124
**canister made of sched 120 PVC Pipe with sealed base. dimensions are ID 2 3/16 inch, OD 2 13/16, 7 2/8 long (inside depth is 6 7/8 inches)
**lid made of 1 inch poly carb clear plastic, custom machined to provide snug fit in the top of the canister.

I'll get the pics up as soon as possible.

Steve



[linger]

Ok, re-read the link and see it is regulated (4 amp draw) and protected (70c thermal cut-out). Is the cell protected against overcharging / overdischage?



[MrSpock]

Any suggestion on reliable sources of the remaining parts?



[gooffydawg1]

this is like the dr slim line size,correct? based on the battery u chose
or is the can the wreck size



[rescue15]

Remaining parts can be gotten here...
McMaster-Carr (glands, draw latches)
BatterySpace.com/AA Portable Power Corp. Tel: 510-525-2328 (battery packs, chargers)
DealExtreme: Cool Gadgets at the Right Price - Site-Wide Free Shipping (Page 1) (LED parts)
Light Component Parts (glands, draw latches, batteries, chargers)

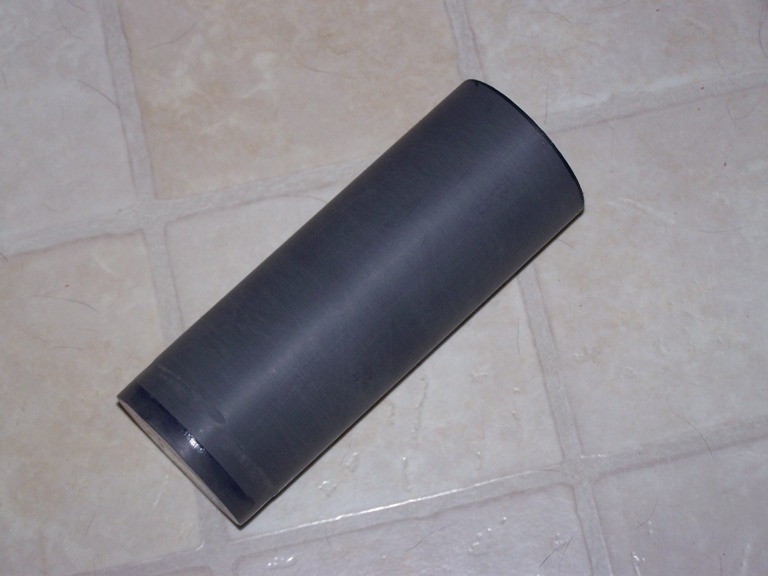

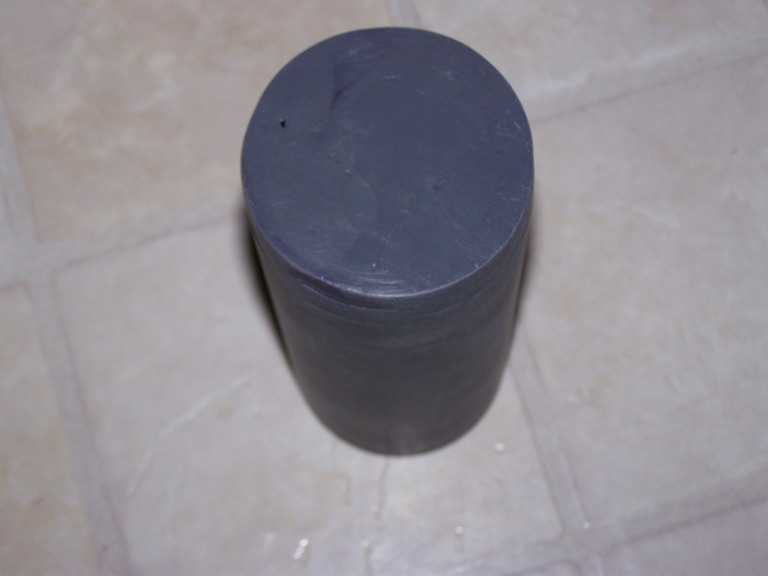

here are some pics...The clear lid in the pic is a prototype made of 2 discs each .5 inches thick. The one I will get is made from one solid piece of 1 inch polycarb, custom machined to fit the canister.
