BCD epoxied fitting replacement for air filler hose connection

[The2ndBest]

They just weld the threaded piece onto the bladder from the outside. It's just one piece.

BTW: @The2ndBest it's best not to use the pull dump on the corrugated hose on any BCD. That's likey what caused the part to rip off.

I actually don't, I prefer to hold the hose out and use the push button when releasing air from the filler hose (better control). I am not sure why this one failed (aside possibly from age and exposure to elements)



[berndo]

What I would do is toss that b/c in the trash after removing whatever bits that may be useful later and buy a new one.

With the flange they're actually better/stronger than with the welded connection.



[berndo]

I didn't find that part when I was searching for a solution. I made mine with a CAD program and 3D printer

When you repair a lot of BCDs you can just buy the parts without the dump valve part. DGX used to sell those too but I don't see it on their website anymore. Eitherway, it's probably much cheaper and easier to order them in bulk rather than 3d printing them. You also get the double layer gasket with it.
Here you can see the parts easier:

1set Over Pressure Relief Valve And Screw Type Retainer Used On Diving Bcd Smb Lift Bag Diving Buoy Scuba Diving Accessory - Buy Oceanic Diving Buoy Bcd Diving Smb Knife Fin Drysuit Gaiter Sidemount Backmount Bcd,Diving Computer Diving Boot Diving So

1set Over Pressure Relief Valve And Screw Type Retainer Used On Diving Bcd Smb Lift Bag Diving Buoy Scuba Diving Accessory - Buy Oceanic Diving Buoy Bcd Diving Smb Knife Fin Drysuit Gaiter Sidemount Backmount Bcd,Diving Computer Diving Boot Diving Socks Hood,Diving Regulator Freediving...

www.alibaba.com



[Waterwulf]

I've rebuilt several BC's in the past few years using new valves and parts that I bought from various suppliers on Fleabay. (I had to repair them as new Horse Collar BC's are few and far between) I even made a new internal air bladder for one. Here's a few tips that I learned doing it.

*Warm the bladder some to make it easier to work.
*Reinforce pass thru's with more materiel around the hole like a big gasket.
*Warm up any areas that you're going to glue to "pretty warm". That causes the glue to get sucked into the seam when it cools and contracts. (Hair dryer)
*I used a small Teflon coated iron to go over the glued areas after they were cured to help seal the seams. (Almost but not quite hot enough to melt the material)
Lastly but most important: Do NOT do the work on your coffee table in the living room if you have a "significant other". I got caught and it was terrible! I didn't think the glue smelled that bad but then I'd been breathing it for the past hour so there was that.



[gheiselt]

Do you really think the manufacturers put the backing or male flange in the bladder, before welding

There is just the old solution to find which is to fold the bladder or cordura 25 milimetre hole in half

and work the more than double the size flange through it

Hi happy-diver - any thoughts on installing an OPV/dump and inflator onto an MSR bladder? I have mechanical ability to do the install, just unsure about acquiring the parts. Appreciate any info you can offer. Thanks so much.



[happy-diver]



[gheiselt]

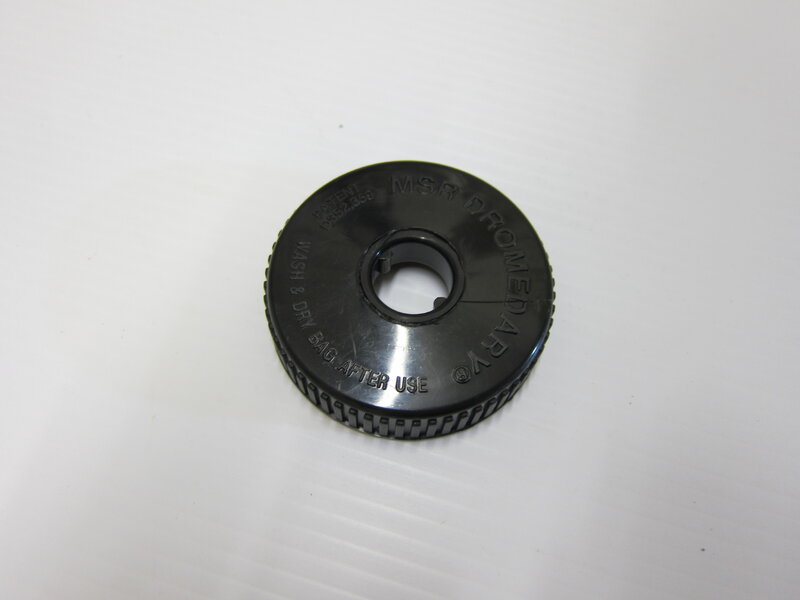

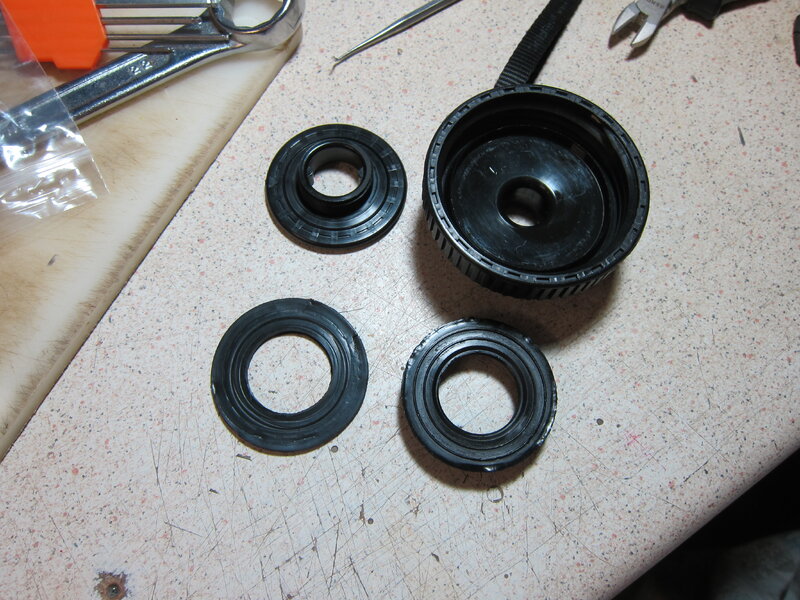

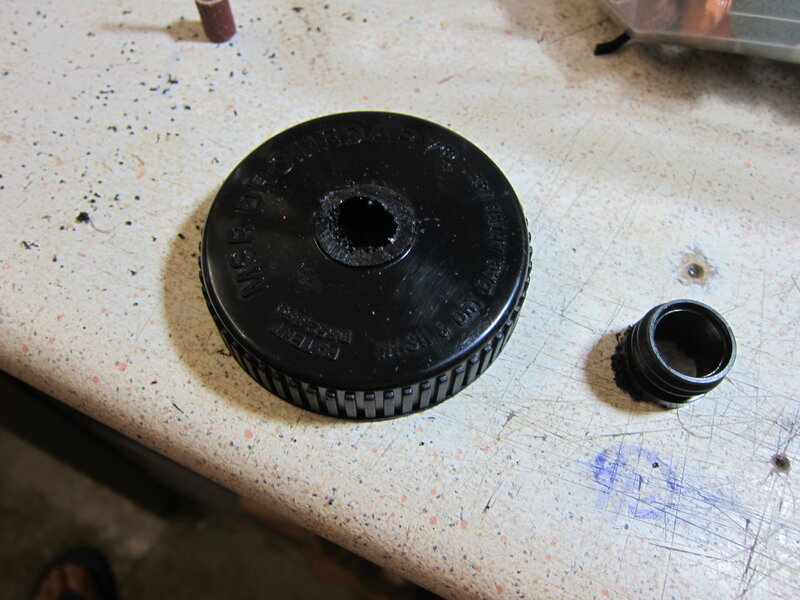

View attachment 849379View attachment 849380View attachment 849381

What about the male threaded flange that the OPV connects to. Same question for corrugated hose attachment point. Lastly, where can I acquire them. Thanks for the reply.



[happy-diver]



[The2ndBest]

And now I have a Seaquest style version as well: Scuba BCD repair fitting Seaquest style | Sweeney Engineering
