OP
Scuba_Aaron
Contributor
I would greatly appreciate a PDF manual, thanks for the offer! Just let me know if you want my email via a DM.
Question Bauer Utilus 2nd stage discharge valve problem
- Thread starter Scuba_Aaron
- Start date
Please register or login
Welcome to ScubaBoard, the world's largest scuba diving community. Registration is not required to read the forums, but we encourage you to join. Joining has its benefits and enables you to participate in the discussions.
Benefits of registering include
- Ability to post and comment on topics and discussions.
- A Free photo gallery to share your dive photos with the world.
- You can make this box go away
oldairdude
Registered
Here you go!
If you give me your block number stamped on the top of your block, I can get you the exact year, however, very little change on the Utilus from year to year.
If you give me your block number stamped on the top of your block, I can get you the exact year, however, very little change on the Utilus from year to year.
OP
Scuba_Aaron
Contributor

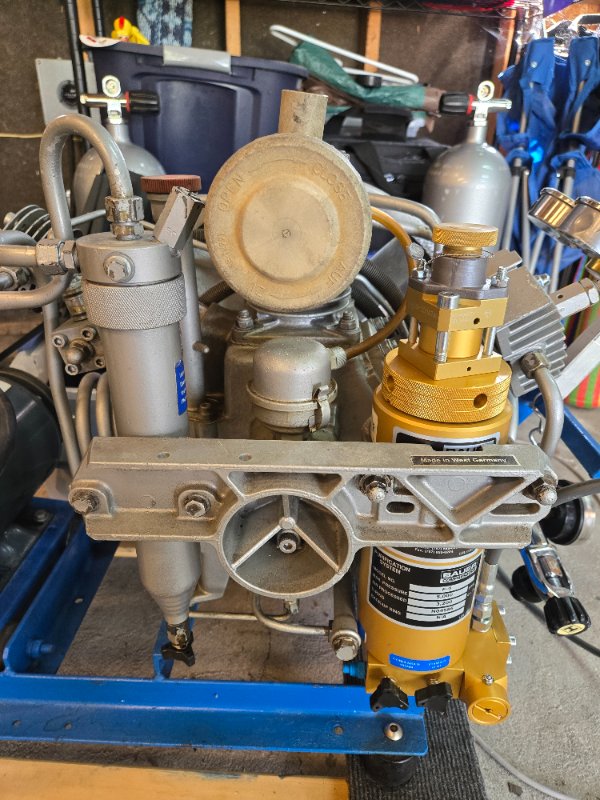

Thanks again! My block has 89/4421/09 so it is a 1989 build. Is there a service manual for this year? The parts list you attached didn't have torque settings unless I overlooked something. I do have the torque values for all the metric fittings but can't seem to find any on the discharge valve to head values. The pipe connections between stages says snug then a 1/2 turn more.
OP
Scuba_Aaron
Contributor
Oldairdude, does that offer on the P21 include the final safety valve? I was thinking of taking up your offer.
oldairdude
Registered
Aaron, I will shortly send you some files that you can use for torque specs and such. Keep in mind that if you are tightening the nuts on the aluminum tubing (only the final is steel) there is a tendency for the tubing to collapse to a point where the steel ferrule (sleeve on the tubing) cracks. Common issue with softer aluminum tubing...But it is the best for getting rid of heat. If you have specific issues, just send me pics or good descriptions and I can help you out.
Yes, I do have 3 more P-0 filter systems left in stock. And yes it is complete with the final stage safety valve, factory set at 330 BARS or 4800 PSI. If you need to reset it, I can give you the details.
Yes, I do have 3 more P-0 filter systems left in stock. And yes it is complete with the final stage safety valve, factory set at 330 BARS or 4800 PSI. If you need to reset it, I can give you the details.
oldairdude
Registered
OK, You may need to sharpen your German on one of these, but it is for your unit. I have also included a newer manual with better illustrations and specs, but it covers many of the units and most are much newer, however it is a wealth of information and perhaps some others would like this. Lastly, I included the parts breakdown of your MOD. 9 build for your reference as well.
Let me know if you need anything else...
Let me know if you need anything else...
