Bauer compressor drainage

[Snusmumrik]

Do you have any details on this? I'm interested too because I'm gonna make a sound proof enclosure for it

Man, i can only post link to aliexpress where me bought such one valve.

Hochdruck-Autowasch-Magnetventil aus Edelstahl 304, 0–300 bar (Details Siehe Spezifikationstisch), 1/4 Zoll normalerweise geschlossen oder offen - AliExpress 13

Smarter Shopping, Better Living! Aliexpress.com

aliexpress.com

I mated this with DIN rail programmable timer and made adjustable programmable auto-drain system.

Before order please consult with table in description due to different orifice sizes are rated for different max pressure.
Me bought AC 220V version, 1,5mm orifice rated for 250 bar.
BSPP and NPT versions exists, so you can choose.



[Agro]

Man, i can only post link to aliexpress where me bought such one valve.

Hochdruck-Autowasch-Magnetventil aus Edelstahl 304, 0–300 bar (Details Siehe Spezifikationstisch), 1/4 Zoll normalerweise geschlossen oder offen - AliExpress 13

Smarter Shopping, Better Living! Aliexpress.com

aliexpress.com

I mated this with DIN rail programmable timer and made adjustable programmable auto-drain system.

Before order please consult with table in description due to different orifice sizes are rated for different max pressure.
Me bought AC 220V version, 1,5mm orifice rated for 250 bar.
BSPP and NPT versions exists, so you can choose.

OMG, they became very cheap.

I do not find this table, any orifice size seems to be 300 bar. Am I blind?

1 mm orifice is more than large enough for this application.



[Snusmumrik]

OMG, they became very cheap.

Mwah... That's exactly what i think before buying it.

I do not find this table, any orifice size seems to be 300 bar. Am I blind?

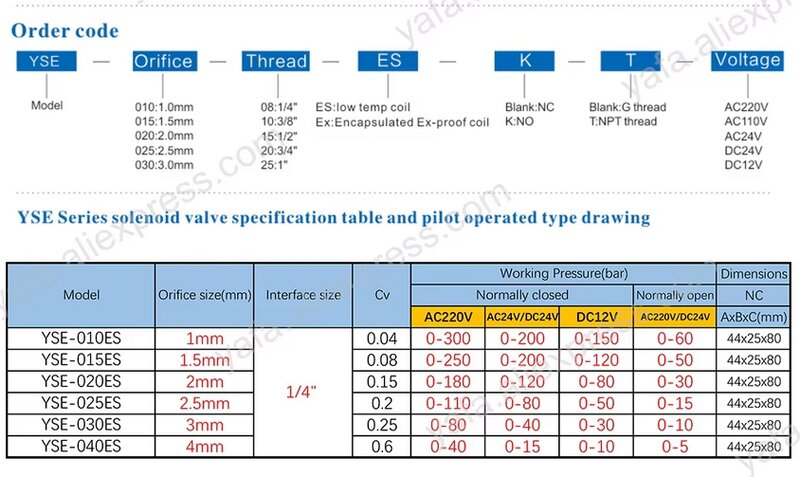

See attached pic.

1 mm orifice is more than large enough for this application.

1mm orifice is 300bar rated with AC 220V valve. And 200bar rated for AC/DC 24V valve.
Me buy 1,5mm orifice AC 220V - 250bar rated.



[Agro]

Oh what a pitty. I need 300 bar and 12V, this does not exist.



[Snusmumrik]

Oh what a pitty. I need 300 bar and 12V, this does not exist.

Think of use DC 12 to AC 220 converter like that
DC12V bis AC220V Wechsel richter Sinus Wechsel richter Leiterplatte 220 W Antriebs platine 12V bis V Aufwärts wandler Strom versorgung - AliExpress 13
That valve uses not much power, like 10-12Wt.



[clownfishsydney]

Thanks! Well mine gets pressure less after a day or so. Might need to have it checked then

You leave pressure in, but, yes, it drains, no problems.



[michael1523]

Hi! I'm new here. Just wanted to Ask for advice about drain valve in Junior compressor.

I was charging empty 300bar cylinder for ab. 30mins , unfortunately, during charging I drained only those two on the right side. After charging this drain on the left is completely stuck. Not moving at all. Can you please give any hint to fix this?
Thanks in advance



[Searcaigh]

I was charging empty 300bar cylinder for ab. 30mins , unfortunately, during charging I drained only those two on the right side. After charging this drain on the left is completely stuck. Not moving at all. Can you please give any hint to fix this?

Did you resolve the issue?
