Aqualung legend knob adjustment

[jrouss28]

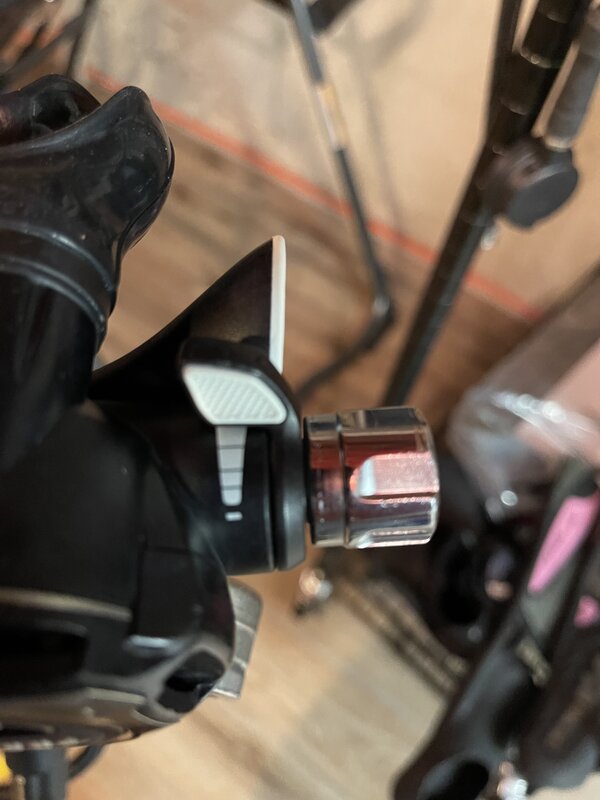

Can someone please let me know if this is a problem? This was frozen and when I got it free when opened all the way it has a gap. It seems to function fine but, I haven't tested under water.

My wife's opened all the way.

Thanks John



[Nemrod]

IMO, no it is not. I have two first gen Legends and they do not gap like that either new or after being serviced by myself. If I recall that out knob presses in over a spline. You may be able to reseat it by pressing inward on it. If not confident with yourself then time to go to a tech.



[Zef]

Here is the exploded diagram for your 2nd stage, perhaps this will help you sort things out:

-Z



[Zef]

From what I can make out in the picture in the original post, I believe the 2nd stage in question is the Leg3nd Elite 2nd stage, hence the exploded diagram of that reg that I posted above. I have not been able to locate a service manual for that version of the Legend 2nd stage but attached is the service manual for the Legend LX/Legend Lux version...it should be sufficient to further help you sort things out.

-Z



[runsongas]

shouldn't be an issue as it will only be wet up until the internal seal oring 28. but double check the retention pin 21 hasn't gotten loose or backed out.



[jrouss28]

Thanks for the replies. I brought it to the local dive shop and the pin #21 was bent. Getting it fixed now.

John
