Vintage 1950s? Compass and depth gauge help
- Thread starter Stirling castle
- Start date
Please register or login
Welcome to ScubaBoard, the world's largest scuba diving community. Registration is not required to read the forums, but we encourage you to join. Joining has its benefits and enables you to participate in the discussions.
Benefits of registering include
- Ability to post and comment on topics and discussions.
- A Free photo gallery to share your dive photos with the world.
- You can make this box go away
2airishuman
Contributor
I have one just like it. I think I paid $10.
The compass and lens assembly can be removed from the depth gauge as a single piece, after unscrewing the bezel. Then you can drill the back of the lens (it's plastic), top off the fluid, and close up the hole with epoxy. Result is a nice working unit.
The compass and lens assembly can be removed from the depth gauge as a single piece, after unscrewing the bezel. Then you can drill the back of the lens (it's plastic), top off the fluid, and close up the hole with epoxy. Result is a nice working unit.
regulator bj
Contributor

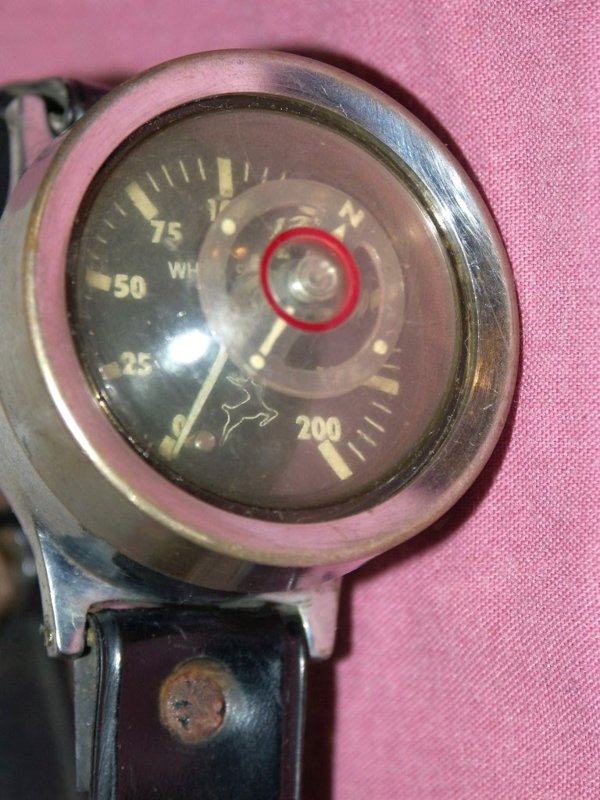

Welcome Sterling castle, Your Compass/200ft combination is from the 1950' and was from the Japanese company Y.C.M. the instrument also appeared in "White Stag /US Diver" equipment catalogues of the day. Plus a similar gauge could be found by the "Admiral" company. att image.
john 68
john 68
