Uwatec Smart Z light????
- Thread starter rboyer
- Start date
Please register or login
Welcome to ScubaBoard, the world's largest scuba diving community. Registration is not required to read the forums, but we encourage you to join. Joining has its benefits and enables you to participate in the discussions.
Benefits of registering include
- Ability to post and comment on topics and discussions.
- A Free photo gallery to share your dive photos with the world.
- You can make this box go away
underH2Oman
Contributor
It should work if you press the button for 1 second in or out of the water. the duration of the illumination should be 8 seconds.
underH2Oman
Contributor
It should be the 3rd button on the top.
underH2Oman
Contributor
Just checking the manual and it states;

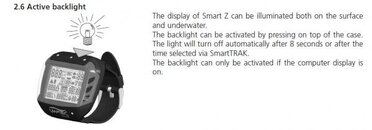

The display of Smart Z can be illuminated both on the surfaceand underwater.The backlight can be activated by pressing on top of the case.The light will turn off automatically after 8 seconds or after thetime selected via SmartTRAK.The backlight can only be activated if the computer display ison.
Try pressing the case just above the display in an area between thye 2nd and 3rd buttons.
Remember the backlight may be hard to see in a bright room or sunne beach.
The display of Smart Z can be illuminated both on the surfaceand underwater.The backlight can be activated by pressing on top of the case.The light will turn off automatically after 8 seconds or after thetime selected via SmartTRAK.The backlight can only be activated if the computer display ison.
Try pressing the case just above the display in an area between thye 2nd and 3rd buttons.
Remember the backlight may be hard to see in a bright room or sunne beach.
- Messages
- 26,281
- Reaction score
- 5,880
- # of dives
- I'm a Fish!
They're technically not buttons - just raised contacts. Notice there's actually 4 of them - one below the screen to the right - usually bridging two with your fingers activates any function.
They all do different functions depending on the mode you're in also so if you don't have one - here's a link to the manual: http://www.scubapro.com/media/176992/smart-all-manuals-eng.pdf
All functions use the bottom contact and one other typically. On land lick your fingertips first also - it will work better.
It's not very bright - just a dim light source near the top. As the above poster mentioned, play with it in a dark room or you won't be able to tell. I actually would shine my flashlight on it at night instead to be able to see it.
The computer itself should activate when submerged for some interval at some shallow depth when the contacts are wet but I don't recall what either were. If it's dry between dives it shuts off after 3 minutes - I remember that.
They all do different functions depending on the mode you're in also so if you don't have one - here's a link to the manual: http://www.scubapro.com/media/176992/smart-all-manuals-eng.pdf
All functions use the bottom contact and one other typically. On land lick your fingertips first also - it will work better.
It's not very bright - just a dim light source near the top. As the above poster mentioned, play with it in a dark room or you won't be able to tell. I actually would shine my flashlight on it at night instead to be able to see it.
The computer itself should activate when submerged for some interval at some shallow depth when the contacts are wet but I don't recall what either were. If it's dry between dives it shuts off after 3 minutes - I remember that.
Last edited:
Computer activation is immediate when contacts are wet.
K
KeithG
Guest
the backlight is not controlled by the contacts. the backlight is activated by firmly squeezing the case.
i place my index finger between and slightly above the center and right contact and my thumb in the center below the screen. a VERY firm squeeze will trigger the backlight. i do not touch the contacts.
if you are not wearing the computer, you can also trigger the light by squeezing the computer with your thumb on the lcd and index finger on the back of the computer.
There is no "light switch". my guess is that the light is activated by sudden pressure changes caused by squeezing the case.
---------- Post added October 6th, 2015 at 12:15 AM ----------
P.S. I forgot to mention that the computer MUST already be "turned on" before you can activate the light. Turning the computer on requires that you short the B & E contacts.
i place my index finger between and slightly above the center and right contact and my thumb in the center below the screen. a VERY firm squeeze will trigger the backlight. i do not touch the contacts.
if you are not wearing the computer, you can also trigger the light by squeezing the computer with your thumb on the lcd and index finger on the back of the computer.
There is no "light switch". my guess is that the light is activated by sudden pressure changes caused by squeezing the case.
---------- Post added October 6th, 2015 at 12:15 AM ----------
P.S. I forgot to mention that the computer MUST already be "turned on" before you can activate the light. Turning the computer on requires that you short the B & E contacts.
