SP PILOT O-RINGS

[James79]

They are, like all used gear, have some value to a very small group of the insane I want one just to see how they were made and to see first hand the concept, I would be interested.

I would like to get a hold of one... because it's different AND chrome!



[lexvil]

I would like to get a hold of one... because it's different AND chrome!

You still have one of my converted ones, keep it



[Couv]

Here is an annotated file from @rsingler who has a Pilot.
I trust his annotations to be more accurate than my guess work.



[Open Ocean Diver]

Finally have it apart seem very clean.



[lexvil]

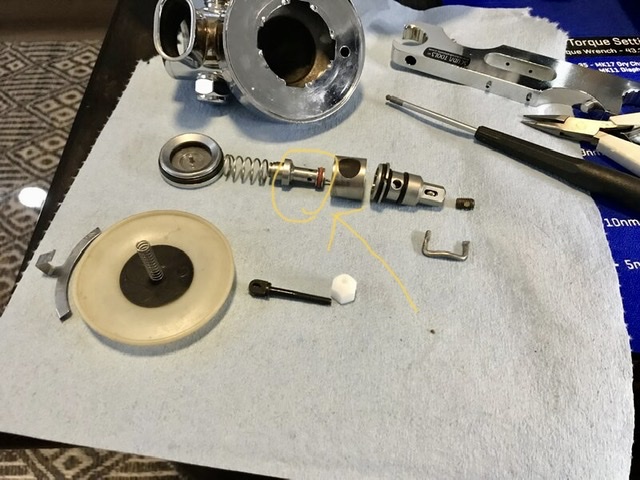

So all of the magic happens inside this one piece

I can easily see the design step to the AIR 1/D series and how those changes made tuning easier. The spring on the diaphragm link is interesting, wondering what change allowed it’s elimination.



[Open Ocean Diver]

So all of the magic happens inside this one piece
View attachment 682161

I can easily see the design step to the AIR 1/D series and how those changes made tuning easier. The spring on the diaphragm link is interesting, wondering what change allowed it’s elimination.

Unfortunately that is the one piece I’m having trouble removing the poppet cap without damaging it. Guess I’m gonna have to use the vice and use leather straps in between the jaws. Ugh



[lexvil]

Unfortunately that is the one piece I’m having trouble removing the poppet cap without damaging it. Guess I’m gonna have to use the vice and use leather straps in between the jaws. Ugh

I remember Rob wrote about this part some time ago, I don’t recall the details but the disassembly was discussed.



[Kupu]

Unfortunately that is the one piece I’m having trouble removing the poppet cap without damaging it. Guess I’m gonna have to use the vice and use leather straps in between the jaws. Ugh

I found a tool to help open the poppet retainer, mentioned in this thread.



[Open Ocean Diver]

I found a tool to help open the poppet retainer, mentioned in this thread.

Thanks very helpful.



[Open Ocean Diver]

I used thin jaw pliers rapped in leather. Actually wasn’t too corroded unscrewed fairly easy. Parts in the pilot valve sure are small. Pilot valve cutaway detail in Savvy, almost looks like the hard seat pulls out. Anyone know?
