Scubapro Pilot

[rhwestfall]

How do I tell if i have a regular or modular poppet ?

From my old Air1 findings, the presence of a screw assembling it together.



[Golan68]

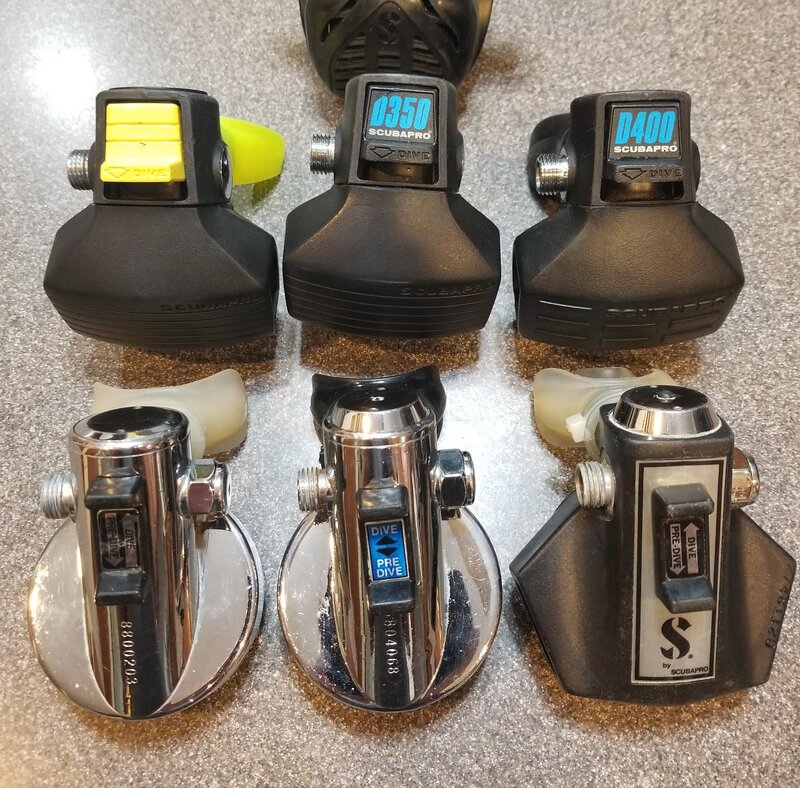

this rejuvinated Pilot needs to be "downgraded" to original pilot valve. does anyone have the Pilot guts [it has the Air 1 internals]



[rsingler]

Beautiful job!
Re-chroming is almost impossible here in the US anymore.



[rsingler]

Finally got around to annotating a schematic with my thoughts as to o-rings.
Criticism welcome (example: I've found duro 50 seems to work better on the poppet bottom than the specified 70. Part #24).



[Open Ocean Diver]

Finally got around to annotating a schematic with my thoughts as to o-rings.
Criticism welcome (example: I've found duro 50 seems to work better on the poppet bottom than the specified 70. Part #24).

Thanks Rob, looking forward to receiving your kit and going through the original manual.



[AfterDark]

Thanks Rob, look forward to receiving your kit and going through the original manual.

When you get yours up and running you should try using both ports from 2 1st stages. If it works as well as it does on the AIR1 the difference is noticeable. I left the AIR1 in pre-dive mode when I tested on land and didn't notice at first! It breathed at least as well as any regulator I've used. When I checked the switch and tried again, WOW! It is like a double hose regulator, that is it feels like your breathing in a room, there's no sense of air rushing into the second stage when you inhale.

Good luck hope it works well for you.



[Open Ocean Diver]

When you get yours up and running you should try using both ports from 2 1st stages. If it works as well as it does on the AIR1 the difference is noticeable. I left the AIR1 in pre-dive mode when I tested on land and didn't notice at first! It breathed at least as well as any regulator I've used. When I checked the switch and tried again, WOW! It is like a double hose regulator, that is it feels like your breathing in a room, there's no sense of air rushing into the second stage when you inhale.

Good luck hope it works well for you.

Thanks i’m going to try that I have a couple of tanks here it’ll be interesting. I’ll let you know how well the Pilot works with dual hoses.



[Golan68]

Finally got around to annotating a schematic with my thoughts as to o-rings.
Criticism welcome (example: I've found duro 50 seems to work better on the poppet bottom than the specified 70. Part #24).

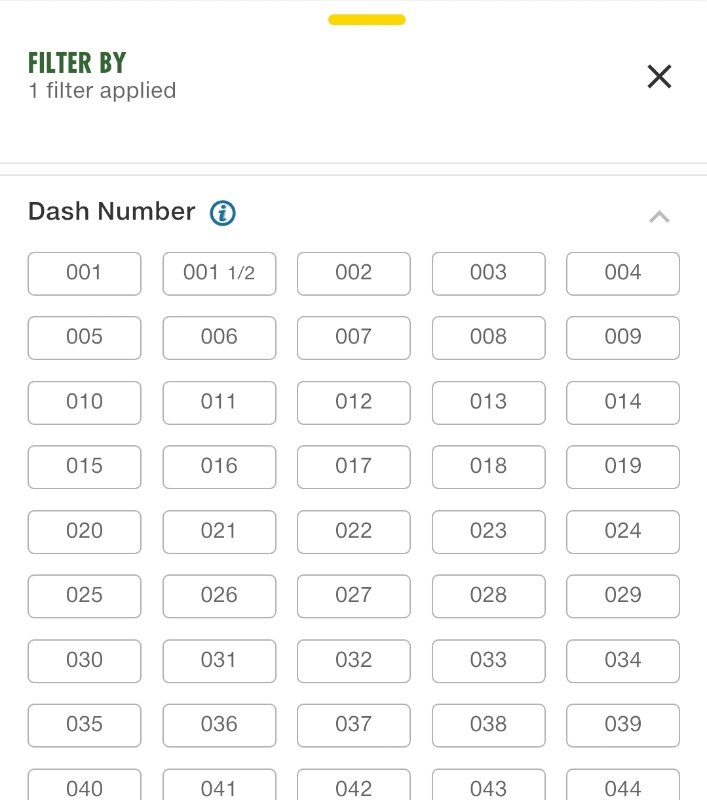

beautiful. I couldn't find the 002 in silicone and or duro50 , also the seat is tricky, I think it came soft to "save" the orfice, but if it's duro 70 epdm , it will be more repeatable and sensitive.
