Scubapro Mk11 DIN adapter install

[WreckWriter]

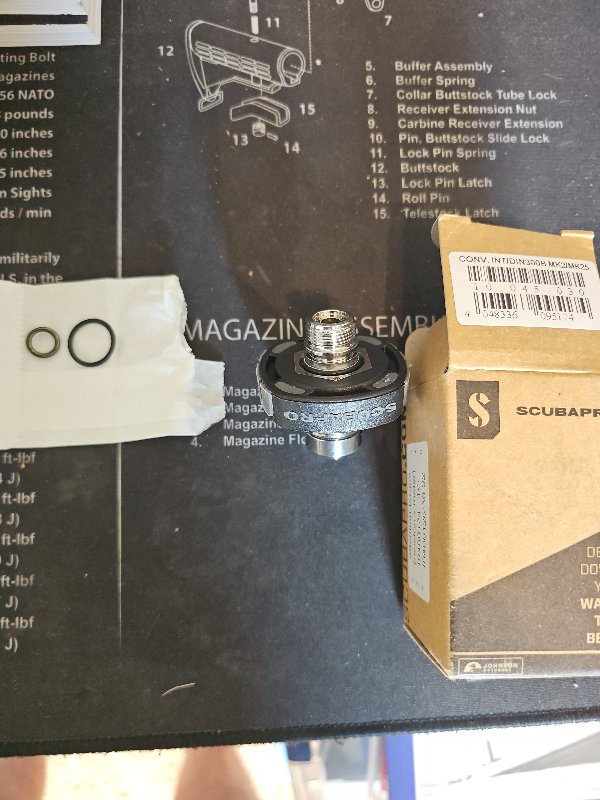

This is what I have, Does claim to be universal. 2 o-rings were in a little bag.



[Mobulai]

The bigger black oring seems to be a spare to the one installed (the groove on the stem right at the edge of the wheel)
The green one might be the base one, I can’t really tell



[lexvil]

The little one goes on the end and the adaptor to tank o ring is likely on the other end. Are you making a statement with the backdrop?



[Mobulai]

The little one goes on the end and the adaptor to tank o ring is likely on the other end. Are you making a statement with the backdrop?

I was meaning to ask what kind pew pew equipment that schematic mat is from



[lexvil]

I was meaning to ask what kind pew pew equipment that schematic mat is from

Basic AR carbine stock M4 etc



[WreckWriter]

OK, guys, having some trouble here. I can't find a way to get the yoke nut off. I thought I had a wrench with jaws long enough but not so much. Also can't secure it in a vise because the yoke itself is too thick at that end. The vise jaws hit the yoke before they hit the nut. Looked all over amazon and not finding what I need. All the stubby 25mm sockets are 1/2" drive so no way to get a ratchet or extension in the socket even if I get the socket in. Ideas?



[lexvil]

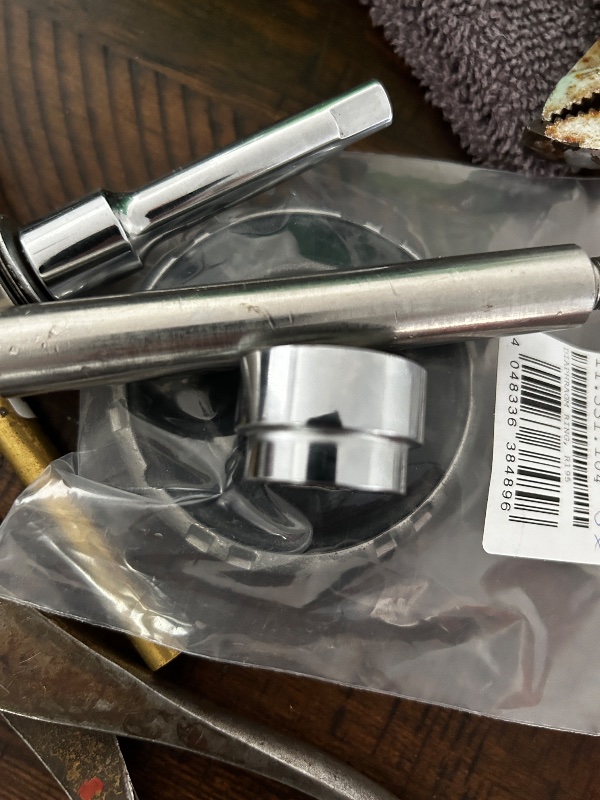

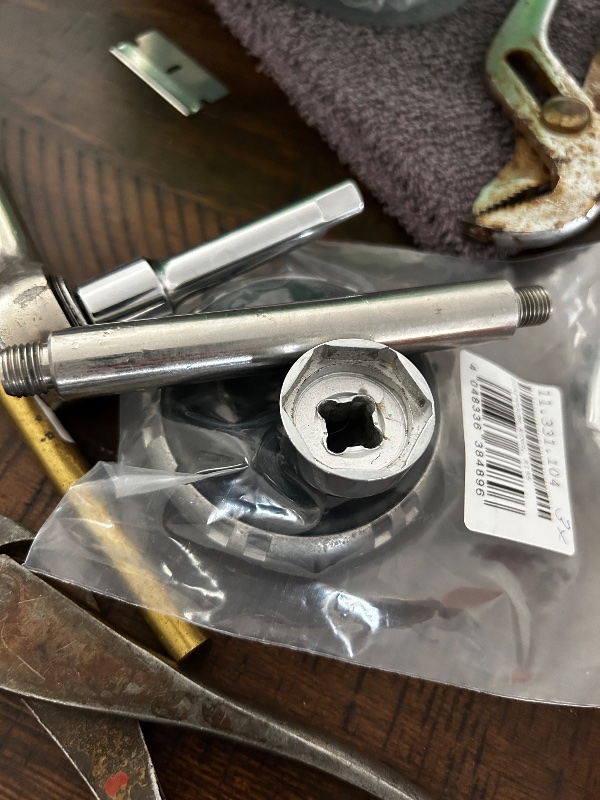

You will need these, I’ll look around to see if there is someplace close to you where you can get them



[WreckWriter]

You will need these, I’ll look around to see if there is someplace close to you where you can get themView attachment 914763
View attachment 914764

If they're Scubapro parts I guarantee there's nowhere nearby that I can get them. Closest Scubapro dealer is 50 miles away and I don't trust them.



[lexvil]

The socket

1" Yoke Nut Socket

Yoke Nut Sockets At Scuba Tools, we manufacture two custom yoke nut sockets and a custom 3/8" drive extension. These tools allow the technician to accurately torque yoke nuts on most first stages.The sockets are available in two sizes: 1 inch and 26 mm. Both sockets are manufactured...

www.scubatools.com



[WreckWriter]

The socket

1" Yoke Nut Socket

Yoke Nut Sockets At Scuba Tools, we manufacture two custom yoke nut sockets and a custom 3/8" drive extension. These tools allow the technician to accurately torque yoke nuts on most first stages.The sockets are available in two sizes: 1 inch and 26 mm. Both sockets are manufactured...

www.scubatools.com

I was hoping to get it done in the next day or 2 but this may be my only option. Thank you.
