Scubapro Mk11 DIN adapter install

[WreckWriter]

Und

er the black cap; the other one is the balanced chamber — IF YOU DISASSEMBLE THE BAL CHAMBER YOU WILL NEED A NEW HP SEAT

I thought so, just wanted to verify in case of future need. Thank you!



[Nemrod]



[Still Kicking]

Figured out the size, assuming I'm right about which end to adjust it on. 7mm is not a common allen size, had to dig deep in the toolbox to find one.

7mm? No, it's a 4mm. Hole in the top cap under the black cover. Counter clockwise rotation raises the seat, increasing IP.



[WreckWriter]

7mm? No, it's a 4mm. Hole in the top cap under the black cover. Counter clockwise rotation raises the seat, increasing IP.

So, this is not where it's adjusted?



[Still Kicking]

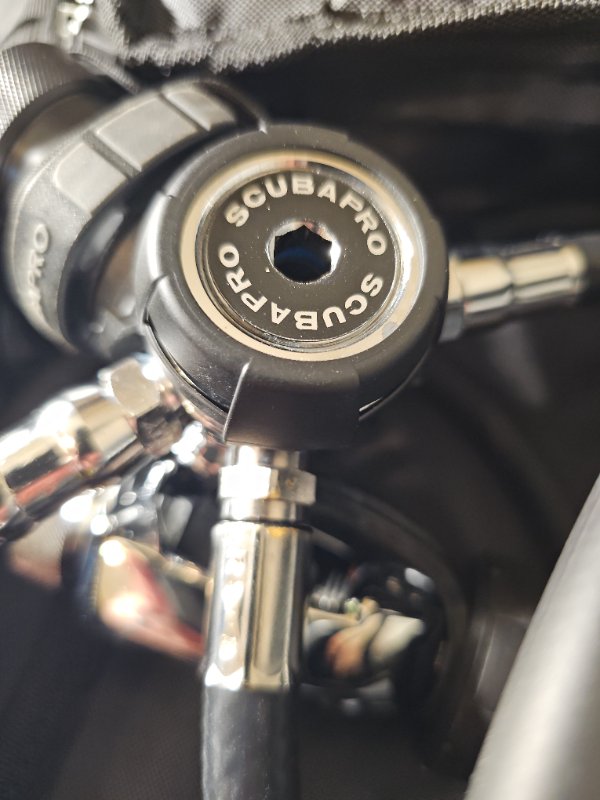

So, this is not where it's adjusted? View attachment 916026

Sorry I thought we were talking mk25. You're correct. I would have guessed 6mm but whatever fits.



[kdlv]

So, this is not where it's adjusted? View attachment 916026

Yes, this is where you adjust the IP.



[lexvil]

The previous adjustment statement was MK 25, for the 11 you are adjusting spring preload pressure, so clockwise increases IP, CCW decreases IP



[WreckWriter]

The previous adjustment statement was MK 25, for the 11 you are adjusting spring preload pressure, so clockwise increases IP, CCW decreases IP

Got it. Thank you!
