Info Scubapro Announces the new updated MK17 first stage, the MK17 EVO 2!!

[rsingler]

My only nag is the need for a special tool ($$) to tighten the Mk11 diaphragm clamp. The torque is huge (310 in-lb/35 Nm) and all those holes are too close to the body to fit my hook spanner.
I can use a simple screwdriver with a torque cheater, but that's kind of ghetto.



[lexvil]

My only nag is the need for a special tool ($$) to tighten the Mk11 diaphragm clamp. The torque is huge (310 in-lb/35 Nm) and all those holes are too close to the body to fit my hook spanner.
I can use a simple screwdriver with a torque cheater, but that's kind of ghetto.

Any picture of what this tool looks like?



[OMyMyOHellYes]

Any picture of what this tool looks like?

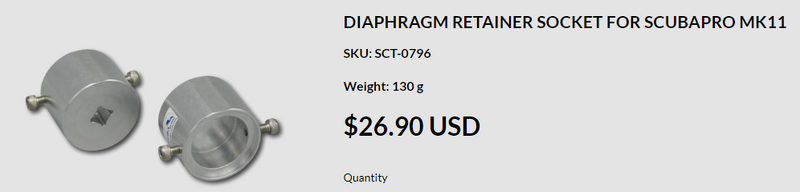

Diaphragm Retainer Socket For Scubapro MK11

This socket provides an optimal fit for installation and removal of the diaphragm retainer of the Scubapro MK11 first stage. It is used simply by capping it over the part with the 2 stainless screws to lock it in place, making it impossible for the tool to slip. The socket also features a 3/8"...

scuba-clinic-tools.com



[OMyMyOHellYes]

Diaphragm Retainer Socket For Scubapro MK11

This socket provides an optimal fit for installation and removal of the diaphragm retainer of the Scubapro MK11 first stage. It is used simply by capping it over the part with the 2 stainless screws to lock it in place, making it impossible for the tool to slip. The socket also features a 3/8"...

scuba-clinic-tools.com

View attachment 866454

Got one. Works good.



[lexvil]

Got one. Works good.

I also have that one but I think Rob inferred a new design?



[rsingler]

I also have that one but I think Rob inferred a new design?

No, that's the tool I was talking about.

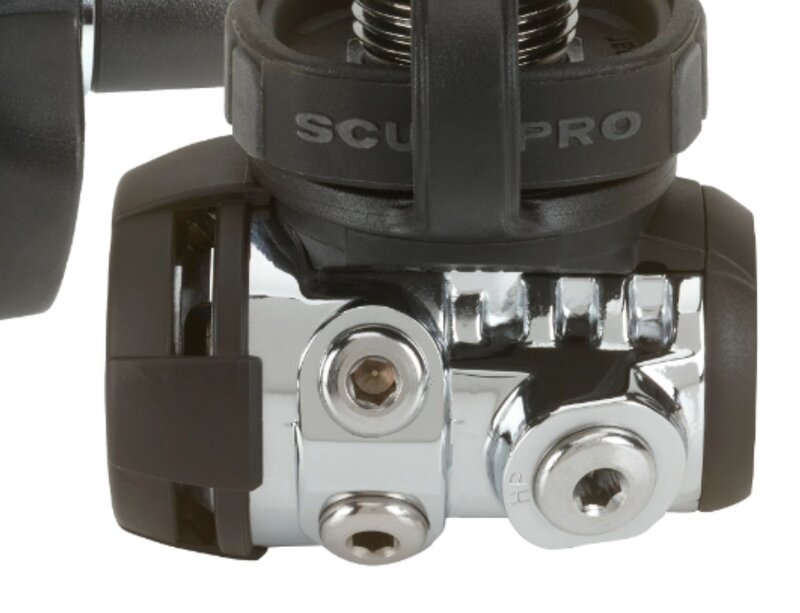

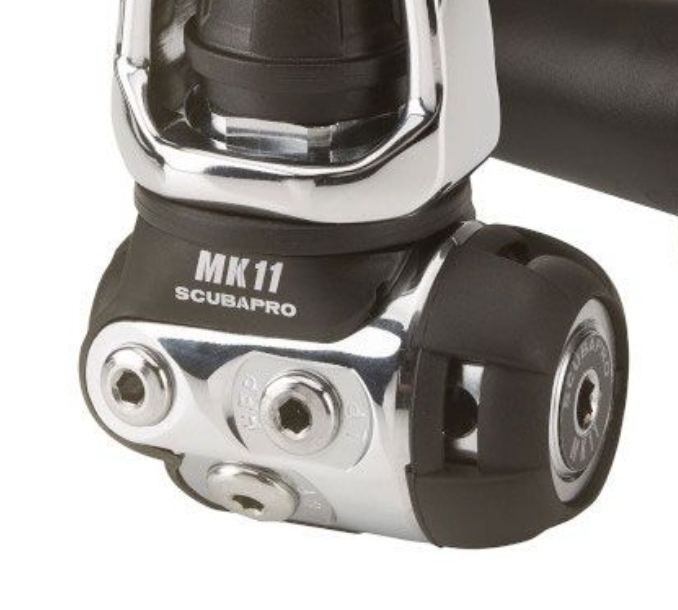

Annoying that they didn't make the diaphragm clamp/spring cap just a little taller so you could fit a common hook spanner. Maybe the Mk11EVO is different?

Doesn't look any different...



[lexvil]

No, that's the tool I was talking about.
Annoying that they didn't make the diaphragm clamp/spring cap just a little taller so you could fit a common hook spanner. Maybe the Mk11EVO is different?

Doesn't look any different...
View attachment 866471
View attachment 866472

I hope it doesn’t need anything to weird but with SP you never know what sort of twists they will lay in front of us peons.



[rsingler]

I think they delight in making it hard for DIY'ers



[OMyMyOHellYes]

I think they delight in making it hard for DIY'ers

Rackin'-Frackin', Rassa'-Frassen, Flicka'-Flackin' spline nuts!



[happy-diver]

Spline nuts are EASY just find the flats with a tape padded shifter

GHETTO IS GOOD!

Someone should invent Molycote111 for threads
