NPT to QD hose setup

[That Petrock Emotion]

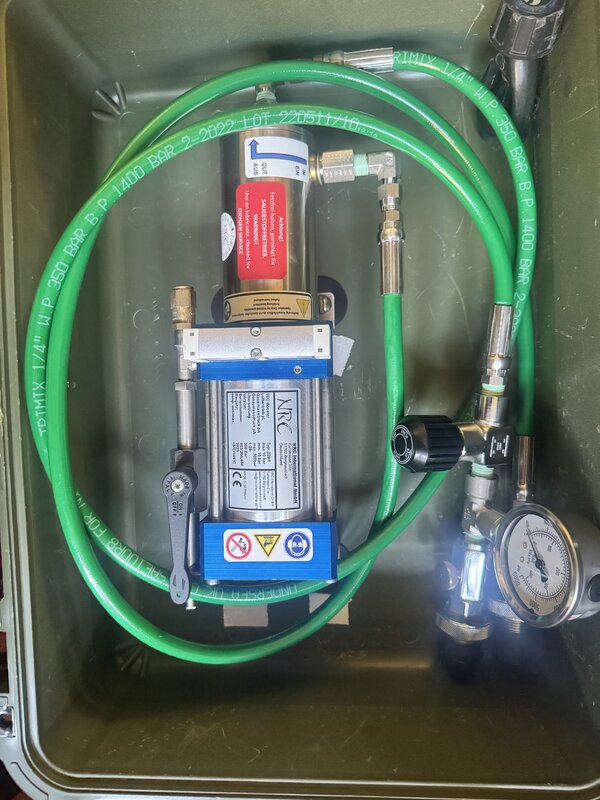

I just bought a booster where the drive gas feeds in though a standard QD (same gauge as an inflator hose / drysuit hose). I want to use a compressor instead of air from cylinders. I have a three chamber water and oil filter that I would run between compressor and booster. The outflow port from the filter is a 1/2" National Pipe Taper (NPT) female. I need to get a hose which goes from a male 1/2" NPT to the above-mentioned standard QD. Help appreciated!



[macado]

You can make an adapter very easily however you may want to consider changing the the drive gas feed into something other than an LPI and use a standard QC (Industrial or Automotive) compressor fitting. If your booster is a mini (small variety) then it should be fine but these can restrict flow of drive gas for larger boosters. I really only use LPI on my smaller Haskell mini.

You can buy 1/2" NPT to 1/4" NPT bushing/adapter and then get a 1/4" NPT to 3/8" F to use an LPI hose

1/2" NPT to 1/4" NPT bushing

Husky 1/2 in. Male x 1/4 in. Female NPT Coupler HDA30300AV - The Home Depot

Husky - 1/2 in. Male x 1/4 in. Female NPT Coupler - This coupler interconverts 1/2 in. male and 1/4 in. female NPT adapters, and is made of corrosion-resistant brass. For use with brass, copper, and iron

www.homedepot.com

https://www.lowes.com/pd/Kobalt-NPT-Brass-Bushing-Adapter-1-2-in-M-x-1-4-in-F/50129798

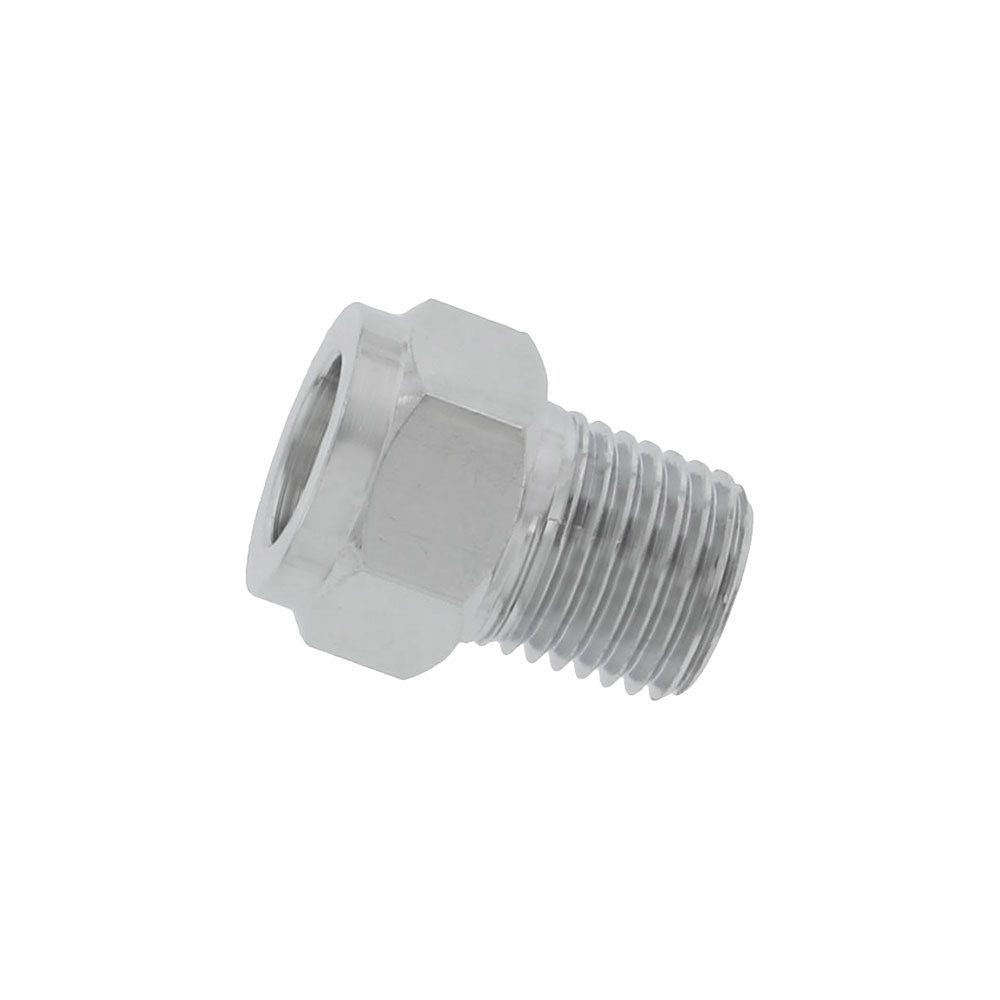

1/4" NPT male to 3/8" Female

DGX Adapter: 1/4-Inch NPT Male = 3/8-Inch F

An adapter with a 1/4-inch Male NPT fitting and the 3/8-inch Female LP port found on first stages.

www.divegearexpress.com



[That Petrock Emotion]

Interesting, thanks!



[rjack321]

That BC nipple is going to be a massive constriction on your drive gas flow. Which booster is this? It may be very unhappy running on a massively upsized 1/2" hose (depending on the compressor output)
