I want one!
Navigation Board - homemade
- Thread starter vjb.knife
- Start date
Please register or login
Welcome to ScubaBoard, the world's largest scuba diving community. Registration is not required to read the forums, but we encourage you to join. Joining has its benefits and enables you to participate in the discussions.
Benefits of registering include
- Ability to post and comment on topics and discussions.
- A Free photo gallery to share your dive photos with the world.
- You can make this box go away
Oh man there is some cool stuff in this thread! I'll have to bookmark this!
OP
vjb.knife
Contributor
Yeah, i don't think I will be adding Sonar. Today I will make the cuts to mount the dive computer. Including the Suunto zoop I will have less than $500 in this board and the Zoop will be removable to be able to use it without the board. I will post another picture later when I finish mounting the Zoop computer, or I might add this to it.
I think I'm going to use some of these ideas for creating more dive site maps. Keep the comments coming!
OP
vjb.knife
Contributor

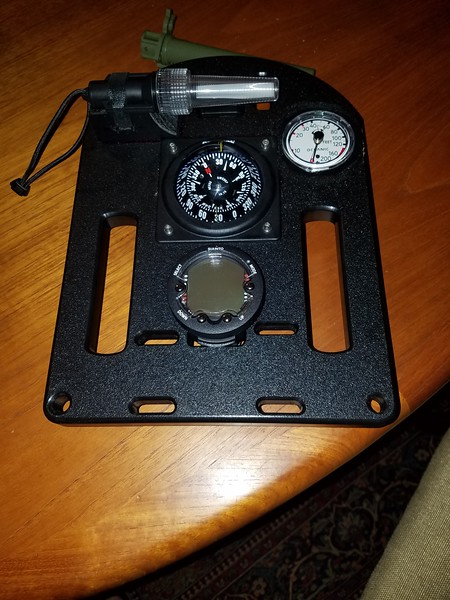

OK I think it is about there I added the Zoop Computer and a mount for a light which can either be an LED as shown or a chem light in milspec holder for lower light applications.
Diver below 83
Contributor
That’s clean
M-Cameron
Contributor
Does anyone know why we cant just buy these? i mean its a cutting board with a compass and a watch on it, why MIL/LEO/GOV sales only?
M-Cameron
Contributor
so i finally got around to designing a nav board, which is more or less a direct copy of the AquaLung Argonaut Attack board...

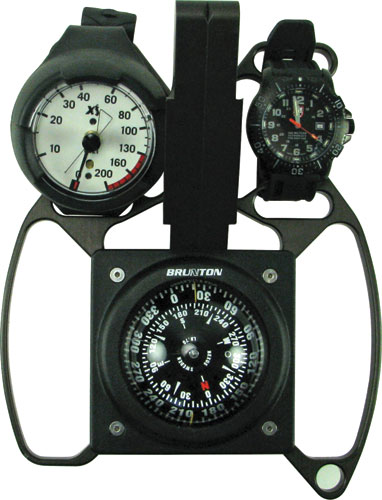

Aqualung board:

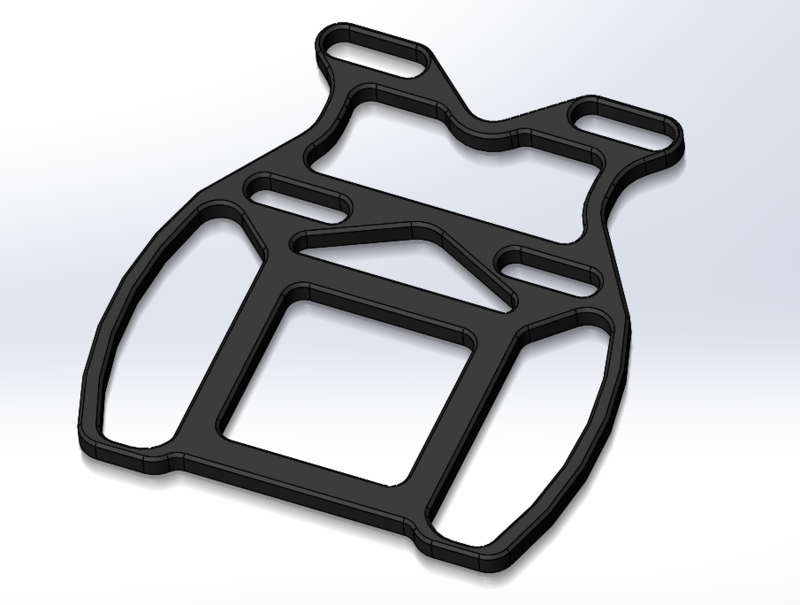

3D model of my version:
I currently have a prototype printing......and will update when i have it finished.......the ultimate plan is to plasmacut a final version out of 6061 aluminum and have it anodized.
Aqualung board:

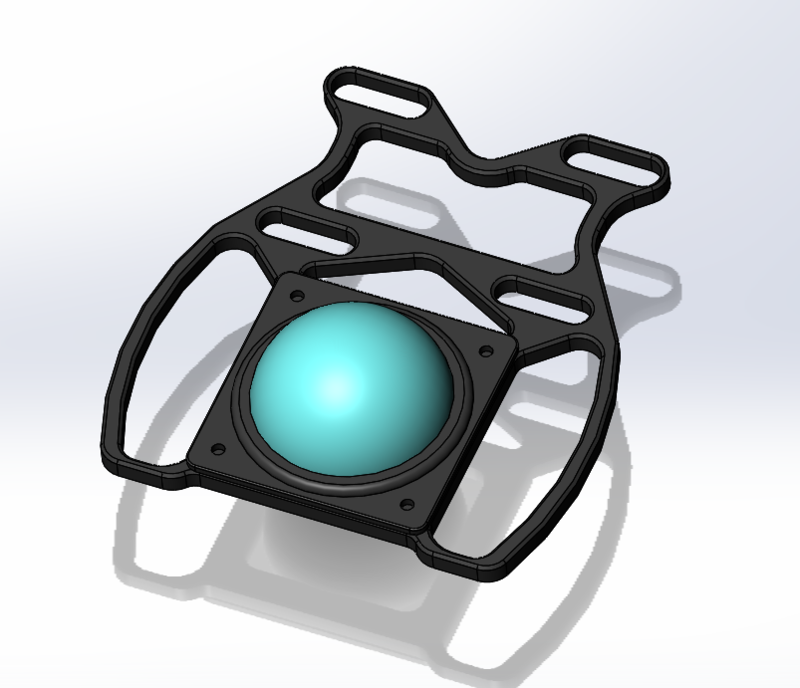

3D model of my version:
I currently have a prototype printing......and will update when i have it finished.......the ultimate plan is to plasmacut a final version out of 6061 aluminum and have it anodized.
Very nice.
M-Cameron
Contributor
Got the print finished and did a test fit , seems to be a good size..... need to order a compass and see how it mounts up, need to make some minor adjustments but I think this is going to turn out nicely
