Mordem

Registered
Messages
12
Reaction score
2
Location
Houston
# of dives
500 - 999
Found this "interesting" Sherwood octopus second stage and would like to know the name of it and how it was used as it has a small hose coming out of the LP hose inlet. Never have seen such an unusual Sherwood product.
Any image showing how it was used will be appreciated! Thanks.


Attachments

  • post-244-1310042027.jpg
    66.8 KB · Views: 30

Snoweman

Contributor
Messages
4,663
Reaction score
3,741
Location
Atlanta, GA
# of dives
100 - 199
It also acts as the BCD fill hose. You would need to donate your primary and use the octo for yourself.

OP
Mordem

Mordem

Registered
Messages
12
Reaction score
2
Location
Houston
# of dives
500 - 999
Got it... thanks!


axxel57

Contributor
Messages
855
Reaction score
734
Location
Central Europe
It's a Sherwood Shadow SRB3209.
Actually, together with the Minimus SRB3108 it had been pretty common in the early 90ties.
To me it's a substandard 2nd concerning the Cracking Effort and breathing comfort, but it's simple and reliable.
I wouldn't dive with it, there are better options, but I use a Minimus 2nd for my regulator testing equipment, don't want even to offer/sell it to another diver.
With the international implementation of the higher European CE Standards in '94-'96 that model was gone like many others of that era.


Attachments

  • Sherwood SRB3108 & SRB3209.pdf
    787.2 KB · Views: 7
OP
Mordem

Mordem

Registered
Messages
12
Reaction score
2
Location
Houston
# of dives
500 - 999

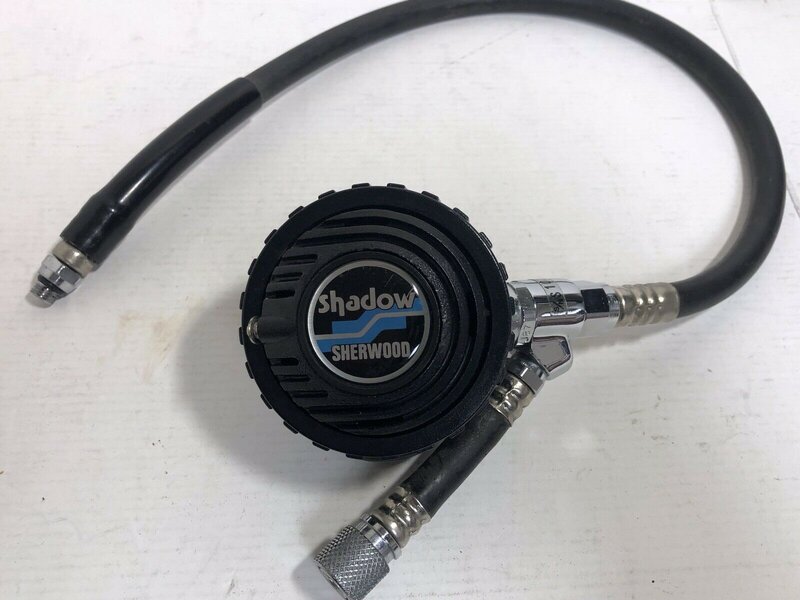

Thank you Axxel57 for the detailed information provided. And also for the assembly and maintenance guides!!!!!! By the way I find most interesting how a second stage was practically "adapted" for acting as an octopus and also as a BCD inflator, Seems that Sherwood liked the concept so much that they also "adapted" another second stage for the same purpose. Enclosed the photos. Again, thanks!


Attachments

  • sherwood bcd regulator 2.jpg
    sherwood bcd regulator 2.jpg
    65.3 KB · Views: 12
  • sherwood bcd regulator 1.jpg
    sherwood bcd regulator 1.jpg
    61.8 KB · Views: 12

BRT

not a soft touch
Messages
18,227
Reaction score
16,315
Location
Oroville
We have used them for 30 years. First the big version and then the smaller yellow one. Bulletproof and works well.
