Hollis DIN regulator coming loose

Discussion in 'Regulators' started by VWRdiver, Jun 7, 2021.

  1. VWRdiver

    VWRdiver Public Safety Diver

    17
    16
    Hello all,

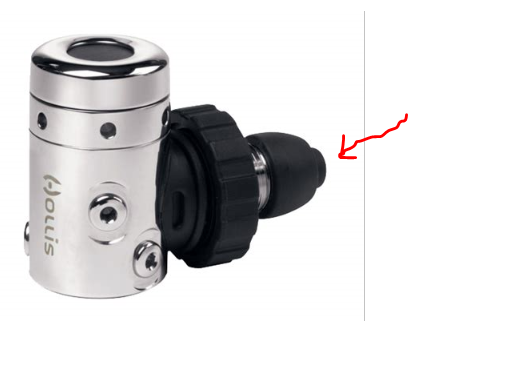

    My Hollis sidemount regulator has a part that keeps coming loose. It is the part that screws in with the allen wrench, the piece that inserts/screws into the tank valve. It is the allen bolt that is under the dust cap as in the picture.

    I'm still figuring out my hose routing / tank placement, so it may be that my inflator hose is putting some torque on the regulator and turning it as it sits in the tank valve when it is under pressure.

    Anyone know the torque spec for this piece?

    Thanks!


  2. lexvil

    lexvil Contributor

    # of Dives: 1,000 - 2,499
    Location: jamestown, ca.
    4,465
    4,358
    I don’t know for sure if this is the same as scubapro but there is a small screw in part (same Allen as the plugs) that hold the filter in place, if so remove that and the filter and look deeper for a larger Allen which is what actually holds the DIN onto the regulator body.

  3. VWRdiver

    VWRdiver Public Safety Diver

    17
    16

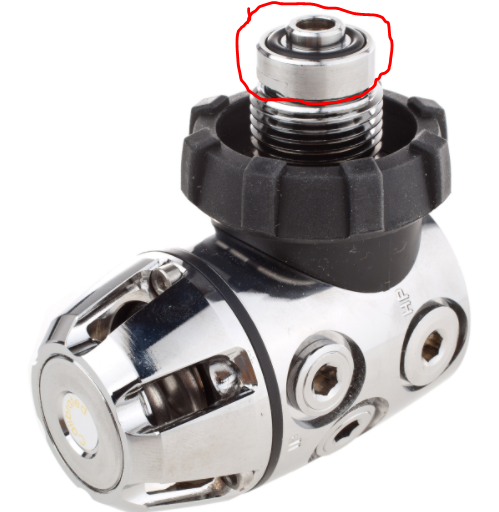

    This is a different regulator, but this shows the piece that is coming loose better. It is that allen screw, along with that whole circled top piece. It doesn't include the visible threads. That is the part that keeps coming loose.


  4. lexvil

    lexvil Contributor

    # of Dives: 1,000 - 2,499
    Location: jamestown, ca.
    4,465
    4,358
    These can jam up if the outer filter part is used to put the DIN piece on to the body, the threaded part is a sleeve. Tighten it with an Allen wrench when you think it’s tight quickly loosen it and see if the inner part (part that sticks up in the middle) unscrews. If all else fails take it to a shop and ask them.

  5. flymolo

    flymolo DIR Practitioner

    417
    191
    I think you need to use a torque wrench to get that part on tight enough. The manual should tell you the correct setting for the torque wrench. Also, when taking the regulator off a tank, don’t twist the body of the regulator in the opposite direction when unscrewing the din wheel, as this will loosen the din module from the regulator body— only unscrew the din wheel itself.

  6. VWRdiver

    VWRdiver Public Safety Diver

    17
    16
    Oh, so it could possibly that the filter is preventing the allen screw piece from properly seating when being tightened?

    The o-ring looked kind of rough in there too if I remember right, so maybe it is out of place as well.

    Yeah, I'll probably just bring it into the shop to have them take a look.

    Thanks for the replies everyone!

  7. flymolo

    flymolo DIR Practitioner

    417
    191
    I think you just need to torque it down with a torque wrench. A service manual should confirm this.

  8. lexvil

    lexvil Contributor

    # of Dives: 1,000 - 2,499
    Location: jamestown, ca.
    4,465
    4,358
    Ok, here some pics to show what I’m saying, again I don’t know if the Hollis is exactly the same.
    If loose this o-ring on the face of the inside won’t seal properly

    this is the seal against the tank

    if you can remove the inner piece, inside is the filter and the Allen that actually mounts the DIN to the regulator body


    filter retainer not yet screwed in.

    VWRdiver and davecampbell like this.
  9. flymolo

    flymolo DIR Practitioner

    417
    191
    Assuming the Hollis is an apeks clone, it’s similar but not entirely the same. There’s a procedure for inserting the din module into the regulator body which prevents pinching the sealing o-ring. The apeks service manuals also specify a torque number to set when torquing the din module onto the regulator body, so it doesn’t unscrew as op mentioned his has been.

  10. VWRdiver

    VWRdiver Public Safety Diver

    17
    16
    Yeah, it looks a bit different, but similar to that.

    I think flymolo is right - I think it is more similar to an Apeks reg.

    I think the o-ring could be causing the issue. I'll take a look at that.

    Thanks for taking the time for the pictures, lexvil.
